ASTM SAME SA192 Cold Drawn Seamless Steel Tube SA192 Grade For Boilers
Basic Properties
Place of Origin:
China
Brand Name:
TORICH
Certification:
ISO9001 TSI16949
Model Number:
SA192
Trading Properties
Minimum Order Quantity:
5tons
Price:
Negotiable
Payment Terms:
D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
6000tons/year
Product Summary
ASTM SAME SA192 Seamlesss Steel Tube for Boilers Applications: for Boilers,Superheaters, Heat-Exchangers, High-pressure Boilers, Steam Boilers Cold Condensers and High-Pressure Services, High-Temperature Services for Boiler Constructions Manufacture: Tubes are manufactured by seamless process and ...
Product Details
Highlight:
cold drawn steel tube
,cold drawn tubes
Product Name:
SA192 Boiler Tube
Grade:
SA192
Technique:
Cold Drawning
OD:
12.7-177.8mm
WT:
2.2-25.4mm
Length:
4-12.5m
Alloy Or Not:
Non-alloy
Secondary Or Not:
Non-seccondary
Shipment:
Ocean, Air
Certificate:
EN10204.3.1
Product Description
ASTM SAME SA192 Seamlesss Steel Tube for Boilers
Applications:
for Boilers,Superheaters,
Heat-Exchangers,
High-pressure Boilers,
Steam Boilers
Cold Condensers and High-Pressure Services,
High-Temperature Services for Boiler Constructions
Manufacture:
Tubes are manufactured by seamless process and both hot finished and cold finished are applicable.
seamless boiler steel tube
Size:
OD 12.7-177.8mm
WT 2.2-25.4mm
alloy steel boiler tube
Heat treatment:
Hot finished tubes need not be heat treated.Cold Finished tubes are heat treated after the final cold finishing pass at a temperature of 1200℉(650℃) or higher
Steel grade SA192 Chemical Composition & Mechanical properties
| C | Mn | P | S | Si | Tensile Strength | Yeild point | Elongation |
| 0.06-0.18 | 0.27-0.63 | 0.035Max | 0.035Max | 0.25Max | min ksi[Mpa] 47[325] | min ksi[Mpa] 26[180] | ≥35% |
Hardness

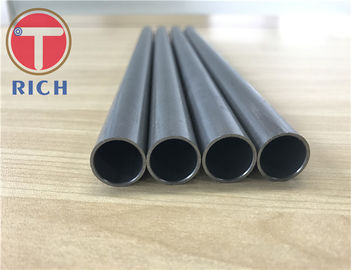

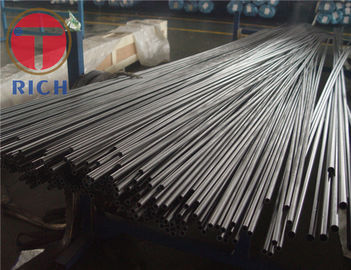

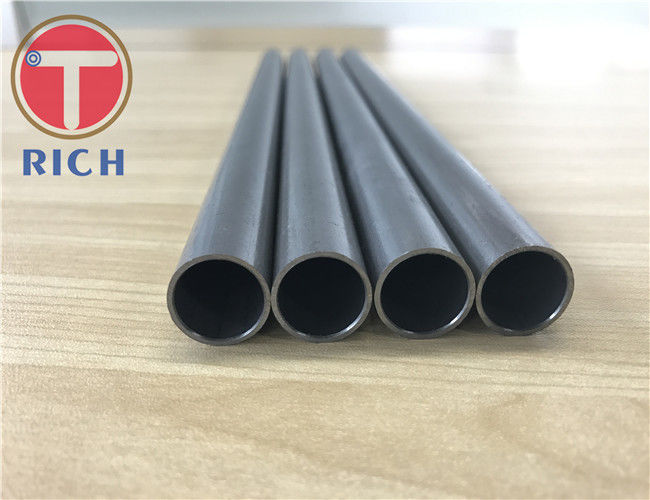

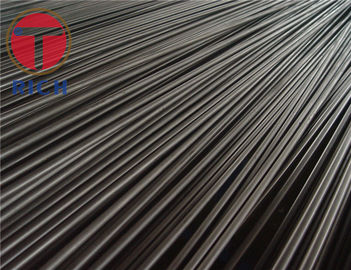

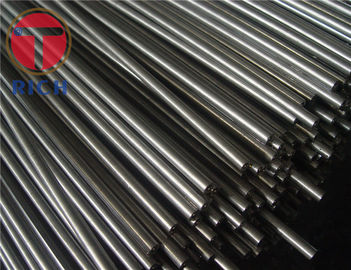

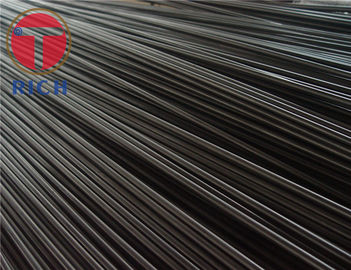

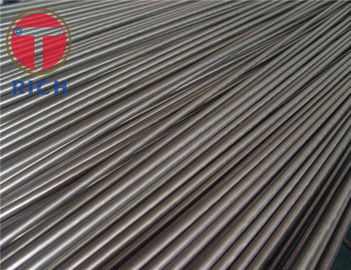

ASTM A192 Boiler Tube Photos
