Double Wall Galvanized Stainless Steel Exhaust Tubing With Zinc Coating
Basic Properties
Place of Origin:
CHINA
Brand Name:
TORICH
Certification:
ISO9001, TS16949
Model Number:
SAE J526
Trading Properties
Minimum Order Quantity:
1tons
Price:
Negotiable
Payment Terms:
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability:
60000ton/year
Product Summary
Double Wall Galvanized Bundy Tube With Zinc Coating For Automobile Brake 1. Standard GM123M, GM124M, TS7600G, GB 11258-89 3. Steel Grade/Steel Material/Steel Number: Low carbon steel, such as SPCC BLD BLC 3. Raw Material: Cold rolled low carbon steel strip 4. Characteristic: Good Surface Quality, ...
Product Details
Highlight:
low carbon steel pipe
,steel mechanical tubing
Product Name:
Double Wall Bundy Tube
Standard:
SAE J526
Technique:
Welding
Section Shape:
Round
Certification:
ISO9001, TS16949
Steel Grade:
BHG1, SPCC, SPCD, SPCEN,
Secondary Or Not:
Non-secondary
Special Tube:
Automotive System
Surface:
Coating With Copper, Zinc
Packing:
In Coil
Product Description

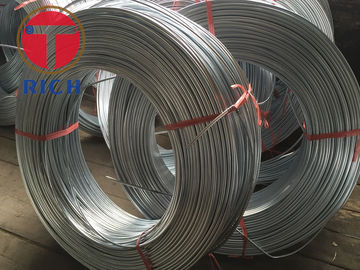

Double Wall Galvanized Bundy Tube With Zinc Coating For Automobile Brake
1. Standard
GM123M, GM124M, TS7600G, GB 11258-89
3. Steel Grade/Steel Material/Steel Number:
Low carbon steel, such as SPCC BLD BLC
3. Raw Material:
Cold rolled low carbon steel strip
4. Characteristic:
Good Surface Quality, Uniform coating
No coating burr
Stable quality
Excellent corrosion resistance
TORICH QUALITY ASSURANCE
5. Application:
Brake tube on automobile
6. Mechanical properties:
| Tensile Stregth (min) | 270MPa |
| Yield Stregth (min) | 180 MPa |
| Elongation (min) | 14% |
7. Coating:
| Type | Thickness | Salt spray test time |
| White zinc coating | 8μm | 72h |
| Color zinc coating | 8μm | 72h |
| Olive green coating | 8μm | 180h |
| PVF coating | white zinc 8μm + PVF 20μm | 1000h |
| Nylon coating | white zinc 8μm + nylon 40μm | 10000h |
8. Packing: In coil, in wooden box with seaworthy packing
