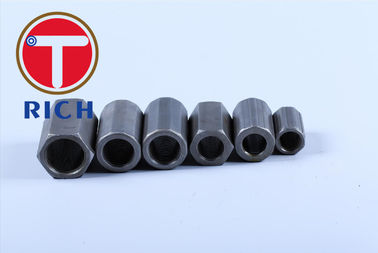

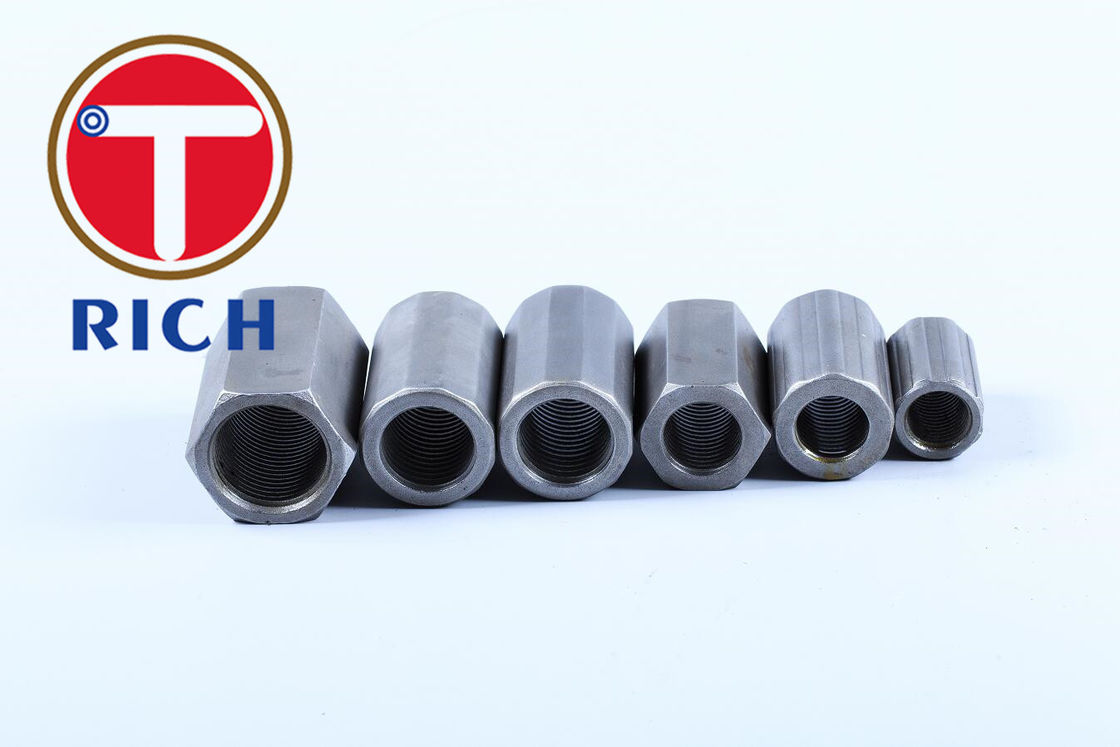

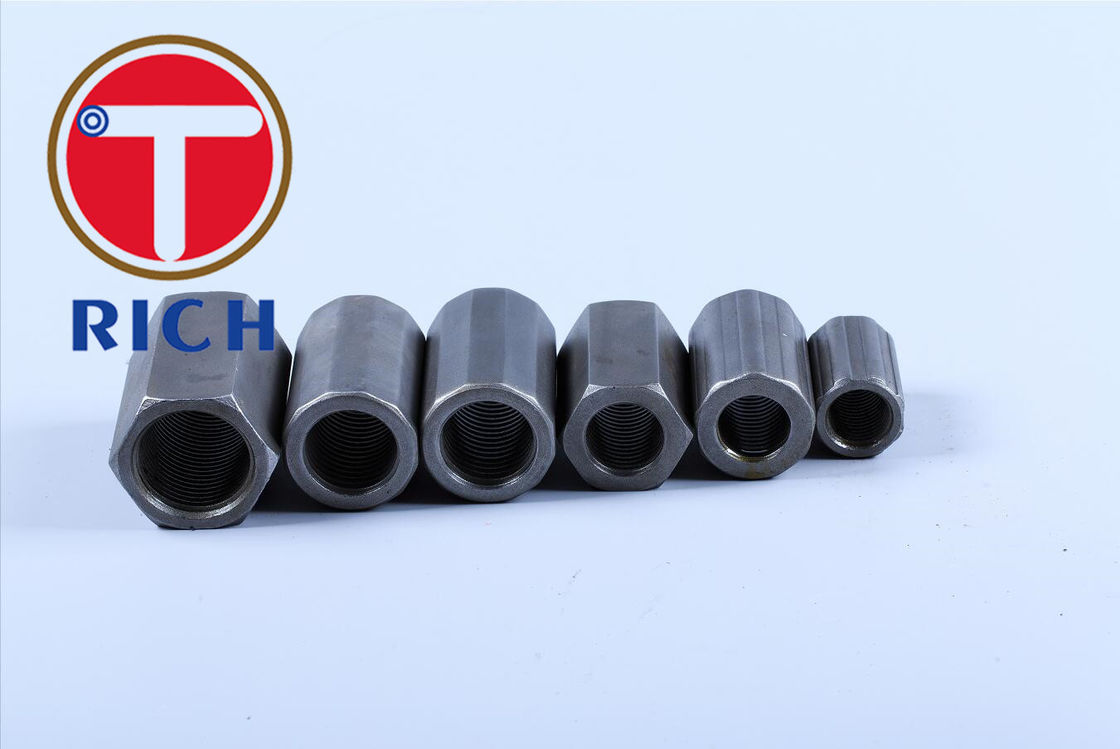

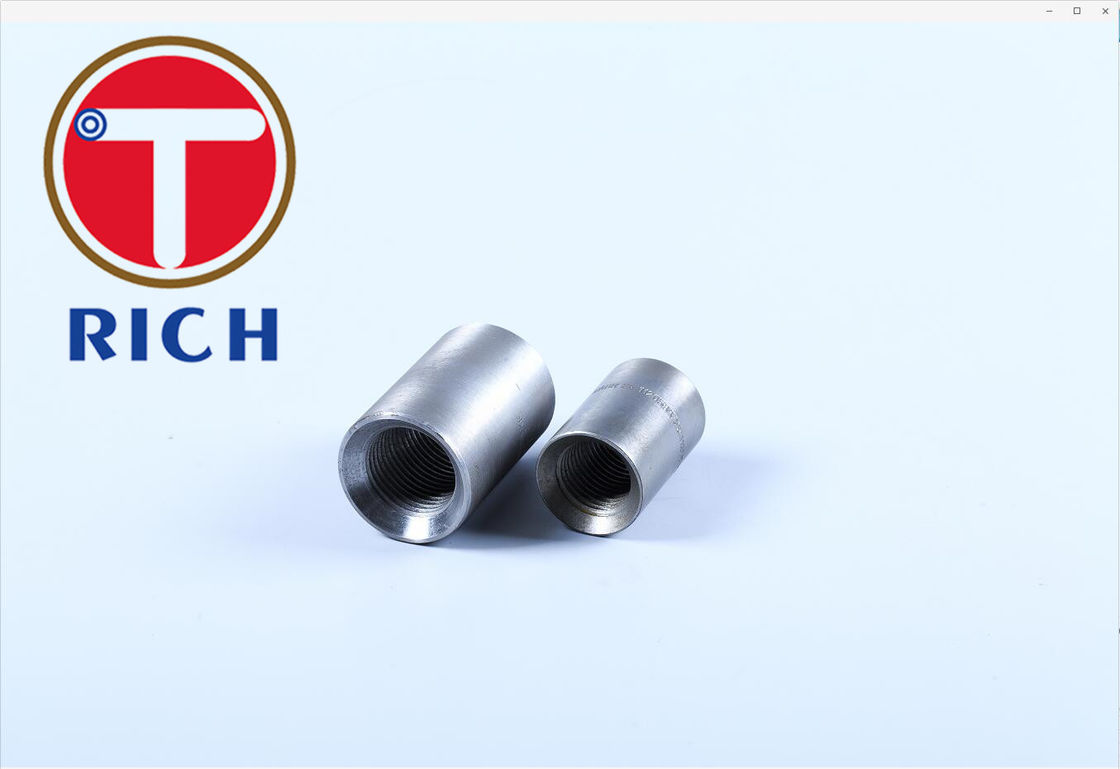

1045 Screw Connecting Rebar Tapered Thread Rebar Coupler 32mm Carbon Steel

Basic Properties
Place of Origin: CHINA
Brand Name: TORICH
Certification: ISO9001, TS16949
Model Number: DIN 1045
Trading Properties
Minimum Order Quantity: 1 tons
Price: USD 0.3-1/pc
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 60000ton/year
Tags

CNC Machining Parts

Auto Casting Agriculture Machine

Customized Machined CNC Machining
Product Summary
TORICH 32mm Carbon Steel 1045 Screw Connecting Rebar Tapered Thread Rebar Coupler Threaded Rebar Couplers are a parallel thread mechanical splicing system designed for the connection of concrete reinforcing bars. Mechanical couplers to splice reinforcing bar has been regarded as a means of reducing ...

Product Details

Highlight:

thin wall steel tubing

,

low carbon steel pipe
Product Name: Rebar Coupler
Standard: DIN1045
Technique: Cold Drawn
Section Shape: Round
Certification: ISO9001, TS16949
Alloy Or Not: No
Secondary Or Not: Non-secondary
Special Tube: Rebar Coupler
Surface: Black
Shipment: Ocean/ Air
Product Description

TORICH 32mm Carbon Steel 1045 Screw Connecting Rebar Tapered Thread Rebar Coupler



Threaded Rebar Couplers are a parallel thread mechanical splicing system designed for the connection of concrete reinforcing bars.



Mechanical couplers to splice reinforcing bar has been regarded as a means of reducing the use of long bars and reduce wastage of expensive rebar's due to Splice lapping of the ends in the conventional methods of joining rebar's. More recently, engineers and installers have recognized the benefits of using couplers to increase construction speed, improve productivity and simplify design details. There are numerous mechanical splicing systems available for use on rebar, many with elements of strength and/or operational compromise



Features:-

Couplers are designed and manufactured in compliance with ACI318, JGJ107, UBC1997, BS8110, NF35-20-1, DIN1045, ISO/WD 15835 (Draft).

Under Full-Tension the bar breaks during tensile tests, but Coupler the remains unbroken.

Easy to operate and maintain, High production efficiency and fast installation, no need for skilled technicians.

The splices can be produced in advance saving valuable construction time.

Inexpensive to purchase, maintain and repair.

Couplers and threaded bars are protected by plastic cover.

Full traceability of material origin and production batch.



Benefits:-

No staggering of spliced bars required.

Practical alternative to lap splicing.

Solves bar congestion problems.

Shortens construction cycle time.

Reduces steel wastage.





Name

of

commodity

Rebar Size

mm

Length

(±2.0mm)

Outside Diameter

(±0.5mm)

Thread

Pitch

(mm)

Thread Angle

(°)

Weight

(kg)
Rebar coupler D16 40 24 2.5 75 0.079
D18 45 27 2.5 75 0.112
D20 50 31 2.5 75 0.173
D22 55 33 2.5 75 0.205
D25 60 37 3.0 75 0.276
D28 65 41 3.0 75 0.360
D32 70 47 3.0 75 0.512
D36 85 53 3.0 75 0.793
D40 90 58 3.0 75 0.979
Coupler grade Yield strength :485Mpa, Tensile strength :630Mpa
Material 45# High quality carbon steel







Packing: in wooden boxes.



Mr. Richard SHEN

Managing Director
