Double Wall Bundy Automotive Steel Tubes For Brake System SAEJ526 Nylon / Galfan Coating

Name: Double Wall Bundy Automotive Steel Tubes For Brake System SAEJ526 Nylon / Galfan Coating
Brand: TORICH INTERNATIONAL LIMITED
SKU: SAEJ526
Price: 28,750.50 USD
Availability: InStock

Brand Name:	Torich
Model Number:	SAEJ526
MOQ:	100kgs
Price:	negotiable
Payment Terms:	L/C, T/T
Supply Ability:	2000tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001 ISO14001

Application:

For Automobile Brake System

Alloy Or Not:

Acc To Customer's Requirement

Technique:

Welded

Thickness:

0.5-2mm

Standard:

ASTM

Surface Treatment:

Galfan, PVF, Nylon Etc

Packaging Details:

In bundles or according to customer's request

Supply Ability:

2000tons per month

Highlight:

low carbon steel pipe

steel mechanical tubing

Product Description

TORICH Double Wall Bundy Tube For Brake System SAEJ526 Nylon/Galfan Coating

1. Standard: AEJ526 Welded low-carbon tubing
EN10305-6 Welded cold drawn tubes from hydraulic and pneumatic power systems
ASTM A254 Copper-brazed steel tubing

2. Steel GradeBHG1,SPCC,SPCD, SPCEN, ST14, ST15, ST16,DC04, DC05, DC06

3. Heat TreatmentBK or NBK

4. Production ProcessTube welding– Cold drawing (reduce diameter)– Annealing in Protected Atmosphere- Cleaning-- Leakage detection– Zinc/Copper Plating– Keep pressure (Airtightness) – Packing

5. Packing: In coil, in wooden box with seaworthy packing

6. Application:
1)Fluid carrying system for automobiles
2)Fluid carrying system for refrigerators
3) Wire condenser for chillers, showcase
4) Vending machine, ice machine etc.

7. Specification

O D/ mm	4	4.2	4.76	6	6.35	7.8	8	9.52
W T	0.5-1.0mm (0.5-0.7mm common WT)
Tolerance	±0.05mm
Length	180Kg/coil; 700-1000m/coil; per customer’s request

8. Surface Treatment

Coating	Thickness	Salt spray test duration
Copper/WhiteZinc/Colour-Zinc	8μm	72h
PVF	8μm+20μm	1000-2000h
Military Green Zinc	8μm	180h
GALF	8μm+20μm	1000-2000h
Nylon	8μm+40μm	180h

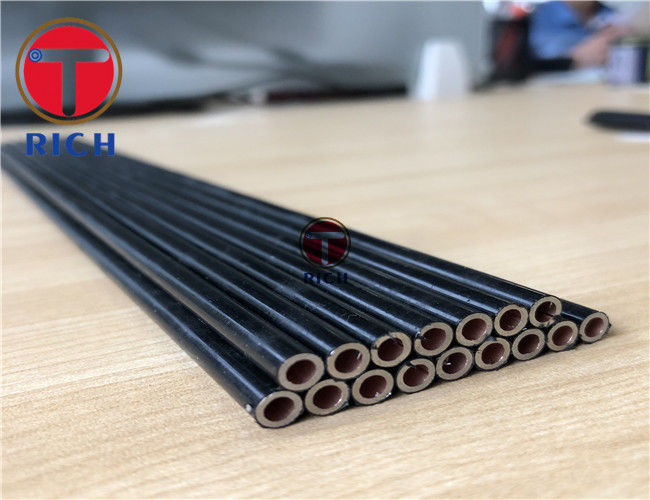

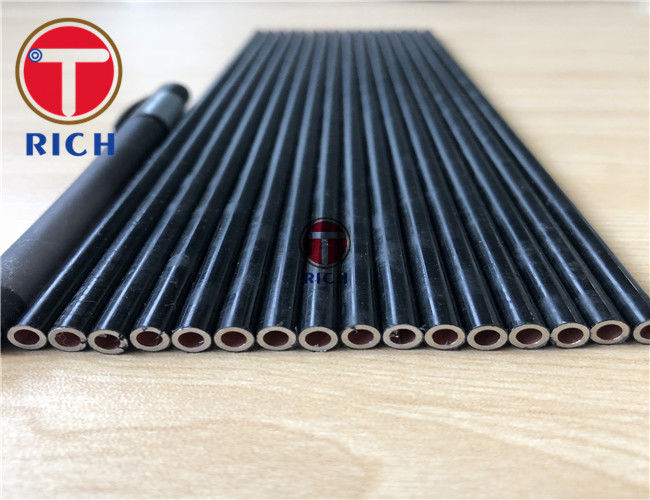

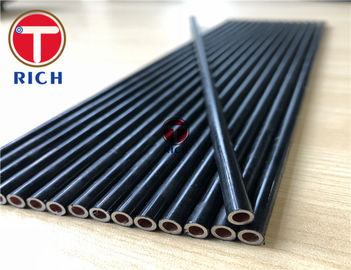

9. Product photos:

Double Wall Bundy Automotive Steel Tubes For Brake System SAEJ526 Nylon / Galfan Coating 0

Double Wall Bundy Automotive Steel Tubes For Brake System SAEJ526 Nylon / Galfan Coating 1
