EN10305-4 E235 Carbon Steel Seamless Hydraulic Tube

EN10305-4 E235 Carbon Steel Seamless Hydraulic Tube

MOQ: 5 TONS
Price: negotiable
Standard Packaging: EN10305-4 E235 +N Carbon Steel Seamless Precision Hydraulic Tube,6*1.0,8*1.5,10*1.5,16*1.5,25*3.0,packing in standard marine packages.
Delivery Period: 20-35 DAYS
Payment Method: T/T, L/C, D/A, D/P, Western Union,
Supply Capacity: 50000 TONS PER YEAR
Detail Information
Place of Origin
Zhejiang,China
Brand Name
TORICH
Certification
ISO 9001 ISO14001 TS 16949
Model Number
EN10305-4
Product Name:
EN10305-4 E235 +N Seamless Precision Hydraulic Tube,6*1.0,8*1.5,10*1.5,16*1.5,25*3.0
Keyword:
Carbon Steel Seamless Hydraulic Tube
Material:
E215,E235,E355,1010,1020,1045,16Mn,etc
Application:
For Hydraulic And Pneumatic Power Systems
Type:
Seamless Cold Drawn
Shape:
Round
Length:
Max 12000mm
OD:
5-420mm
WT:
0.5-50mm
Brand:
TORICH
Highlight:

cold drawn steel tube

,

cold drawn tubes

Product Description

EN10305-4 E235 +N Carbon Steel Seamless Precision Hydraulic Tube,6*1.0,8*1.5,10*1.5,16*1.5,25*3.0

1. Standard:
EN10305-4 Cold drawn Precision Seamless Steel Pipes

2. Steel Grade:
E215,E235,E355
, other materials upon agreement with customers.

3. Production method:
Cold drawing on the seamless steel tubes, to reach high accuracy on the OD and WT tolerance,
with certain heat treatment to achieve better mechanical properties for bending and pressure purposes

4. Size range:
O.D.:5-100mm W.T.:1-15mm L:max12000mm

5. Packing:
In Hexagonal Bundles, with anti-rust oil protection, with seaworthy packing

6. Deliver condition:
+NAfter the final cold drawing operation the tubes are normalized in a controlled atmosphere
Please specify the final heat treatment when sending the enquiry.

7. Inspection and testing:
Chemical analysis
Tensile test
Flattening test or Drift expanding test

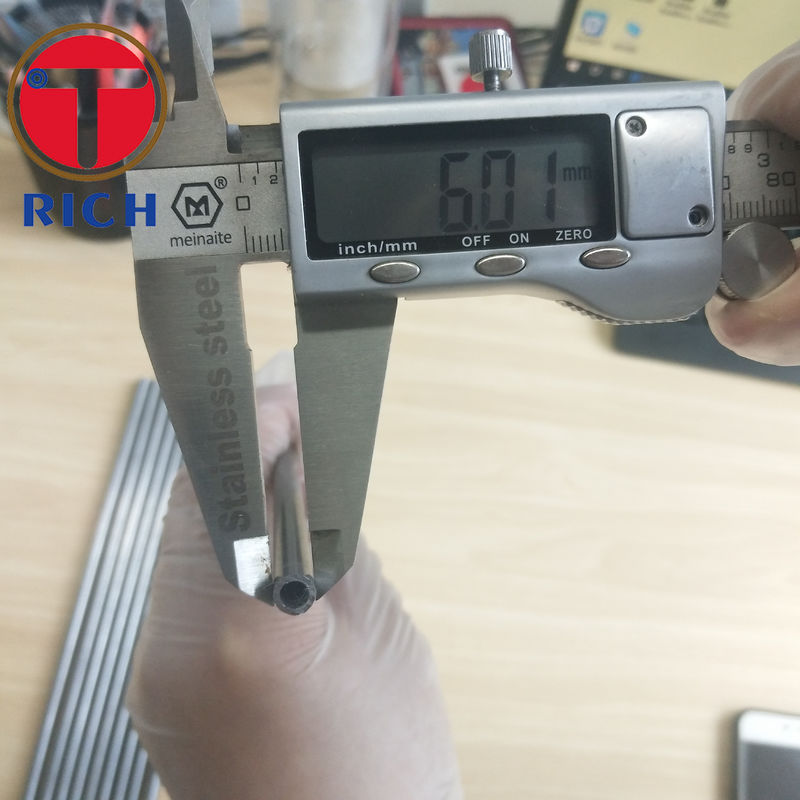

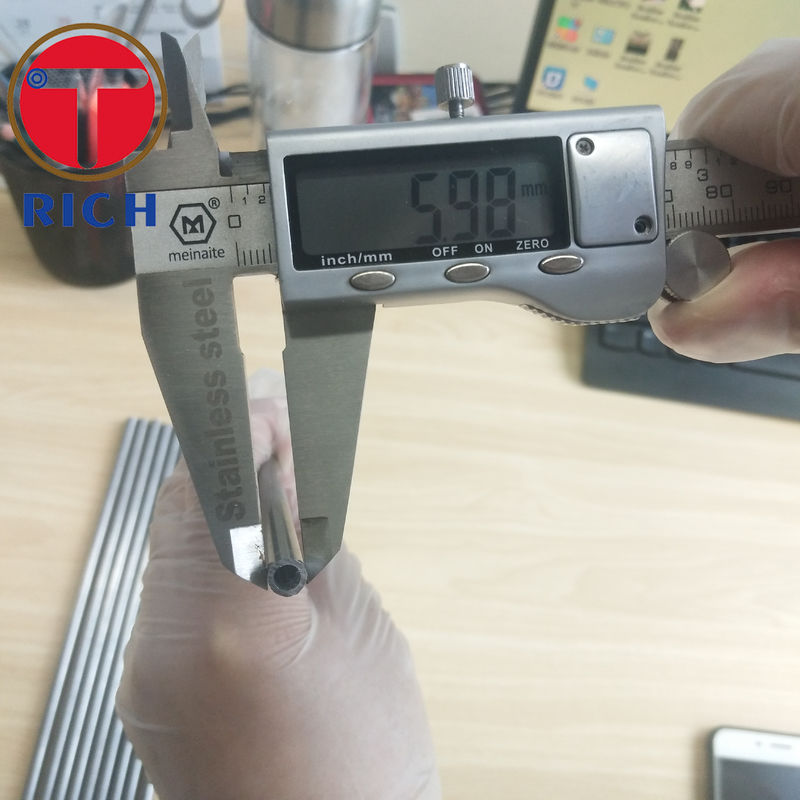

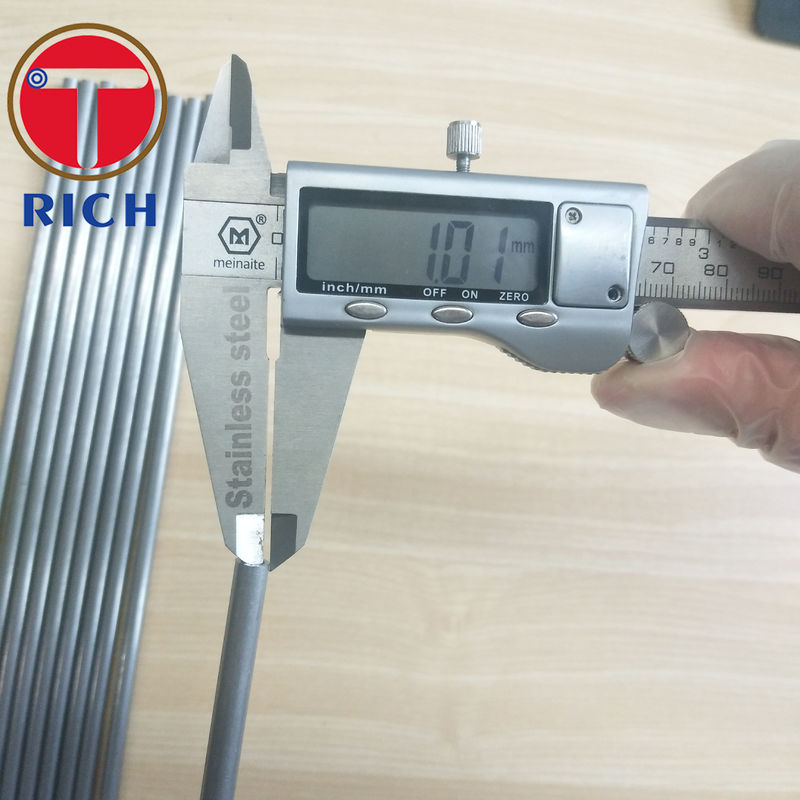

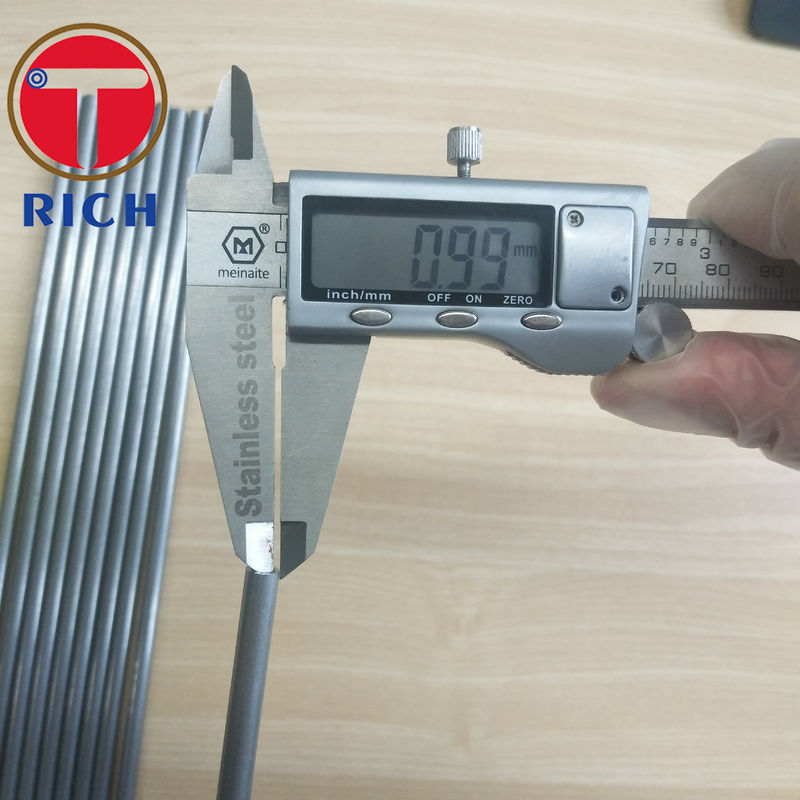

Dimensional inspection
Visual examination
NDT for verification of leaking tightness



Steel Grade C Si Mn P S Al
Steel Name Steel Number max max max max max min
E215 1.0212 0.10 0.05 0.70 0.025 0.025 0.025
E235 1.0308 0.17 0.35 1.20 0.025 0.025 -
E355 1.0580 0.22 0.55 1.60 0.025 0.025 -


EN10305-4 E235 Carbon Steel Seamless Hydraulic Tube

EN10305-4 E235 Carbon Steel Seamless Hydraulic Tube

EN10305-4 E235 Carbon Steel Seamless Hydraulic Tube
