SA192 20Mn Carbon Seamless Special Steel Pipe Omega Tube Material For Boilers

Brand Name:	Torich
Model Number:	BS, JIS, GB, DIN, ASTM, API,
MOQ:	5MT
Price:	negotiable
Payment Terms:	L/C, T/T
Supply Ability:	6000MT/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:2008 , BV , ABS , CCS , DNV , GL ,PED

Type::

Special Steel Pipe

Material::

SAE1010 , SAE1020 , SAE1035 , SAE1045 , ST37.0 , ST44 , ST52 , E235 , E355

Outer Diameter::

5-420mm

Thickness::

0.5-50mm

Section Shape::

Omega

Alloy Or Not::

Non Alloy

Surface Treatment::

According To Customer's Requirement

Packaging Details:

Standard seaworthy packing

Supply Ability:

6000MT/Month

Highlight:

alloy steel seamless pipe

structural steel square tubing

Product Description

SA192 20Mn Carbon Seamless Special Steel Pipe Omega Tube Material For Boilers

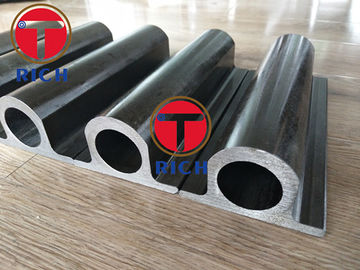

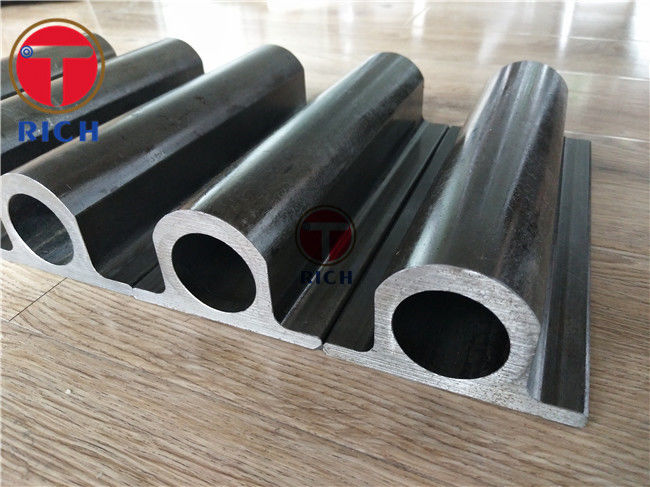

Special Steels Seamless Omega Tube, it is made by Carbon and Alloy Steel, produced by extrusion and cold drawn, the Omega Tubes are used in Boilers and Super Heaters etc, for better heating efficiency.

Product information:
Material:	SAE1010 , SAE1020 , SAE1035 , SAE1045 , ST37.0 , ST44 , ST52 , E235 , E355
Grade:	BS, JIS, GB, DIN, ASTM, API,
Shape:	Omega
Wall thickness:	0.5-50mm
Length:	up to 12m, or according to customer's requirement.
Outer diameter:	Round: 5-420mm
	Diameter and wall thickness could be at customer's request.

Technology:	Cold Draw/Cold Rolled
Surface treatment:	painted,galvanized,or oiled according to customer's requirement
Application:	Lighting,furniture,medical equipments
Place of origin:	China
Application	Mechanical structure, Carbon pressure machinery etc.

Shipping & Payment:
Packaging:	In bundles; or according to customer's requirements
MOQ:	5 MT
Terms of Delivery :	FOB Shanghai
Terms of Parment :	T/T, 30% advance payment, balance paid against B/L copy
Delivery time:	Within 25-40 days since advance payment is receied

SA192 20Mn Carbon Seamless Special Steel Pipe Omega Tube Material For Boilers 0

SA192 20Mn Carbon Seamless Special Steel Pipe Omega Tube Material For Boilers 2

Seamless Cold Worked Tubing

The seamless cold worked tubing available at our factory is custom manufactured, created from raw form solid bar and pierced to convert to mother hollow. Our on-site normalizing process produces suitable tubing for cold working, and after a sulfuric acid cleaning, cold rinsing, and lubrication bath, the specified materials are drawn utilizing a mandrel draw bench with carbide die. The outside diameter, inside diameter, and wall thicknesses are reduced to the required dimensions with resulting high tensile properties, dimensional accuracy, micro structure uniformity and excellent surface quality. Tubing is available in a range of carbon and alloy grades including 1020, 1026, 1030, 4130, 4140 and 4150 among others.

Our experienced tube making process is adapted and modified to produce customer specified components for critical applications. Parts are stress relieved others are quench & tempered followed by rotary straightened for extremely straight tubes and tube ends are then cut to an exact 90° square. Parts are deburred and coated with a rust preventative treatment. Thorough testing methods are employed in process and post production to ensure the highest quality and accuracy levels, including eddy current testing, 100% dimensional tests, straightness, and cosmetic evaluations. For more details about our custom seamless cold worked tubing
