Erw Automotive Steel Tubes JIS-G 3445 EN 10305-3 STKM11 STKM12 Supporting Auto Seat Headrest
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
| Minimum Order Quantity : | 1tons | Price : | negotiable |
|---|---|---|---|
| Packaging Details : | in coils with seaworthy packing | Delivery Time : | 45-60 days |
| Payment Terms : | T/T, L/C, D/A, D/P, Western Union, MoneyGram | Supply Ability : | 60000ton/year |
| Place of Origin: | CHINA | Brand Name: | TORICH |
|---|---|---|---|
| Model Number: | SAE J526 |
|
Detail Information |
|||
| Certification: | ISO9001, TS16949 | Product Name: | Single Wall Bundy Tube |
|---|---|---|---|
| Standard: | SAE J526 | Technique: | Welding |
| Section Shape: | Round | Steel Grade: | BHG1, SPCC, SPCD, SPCEN, |
| Secondary Or Not: | Non-secondary | Special Tube: | Automotive System |
| Surface: | Coating With Copper, Zinc | Packing: | In Coil |
| High Light: | low carbon steel pipe,steel mechanical tubing |
||
Product Description
SAE J526 PVF/ Copper Coating Brake System Single Wall Bundy Tube
1.Standard
SAE J526 Welded low-carbon tubing
EN10305-6 Welded cold drawn tubes from hydraulic and pneumatic power systems
ASTM A254 Copper-brazed steel tubing
2. Steel Grade
BHG1, SPCC, SPCD, SPCEN, ST14, ST15, ST16, DC04, DC05, DC06
3. Heat Treatment
BK or NBK
4. Specification
| O D/ mm | 4 | 4.2 | 4.76 | 6 | 6.35 | 7.8 | 8 | 9.52 |
| W T | 0.5-1.0mm (0.5-0.7mm common WT) | |||||||
| Tolerance | ±0.05mm | |||||||
| Length | 180Kg/coil; 700-1000m/coil; per customer’s request | |||||||
5. Production Process
Tube welding– Cold drawing (reduce diameter)– Annealing in Protected Atmosphere— Cleaning-- Leakage detection– Zinc/Copper Plating– Keep pressure (Airtightness) – Packing
6. Surface Treatment
| Coating | Thickness | Salt spray test duration |
| Copper/White Zinc/Colour-Zinc | 8μm | 72h |
| PVF | 8μm+20μm | 1000-2000h |
| Military Green Zinc | 8μm | 180h |
| GALF | 8μm+20μm | 1000-2000h |
| Nylon | 8μm+40μm | 180h |

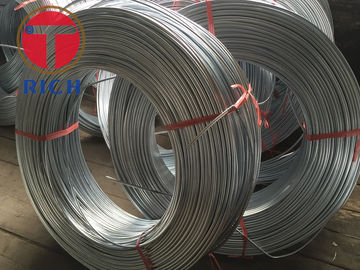

7. Packing: In coil, in wooden box with seaworthy packing
8. Application
1) Fluid carrying system for automobiles
2) Fluid carrying system for refrigerators
3) Wire condenser for chillers, showcase
4) Vending machine, ice machine etc.
