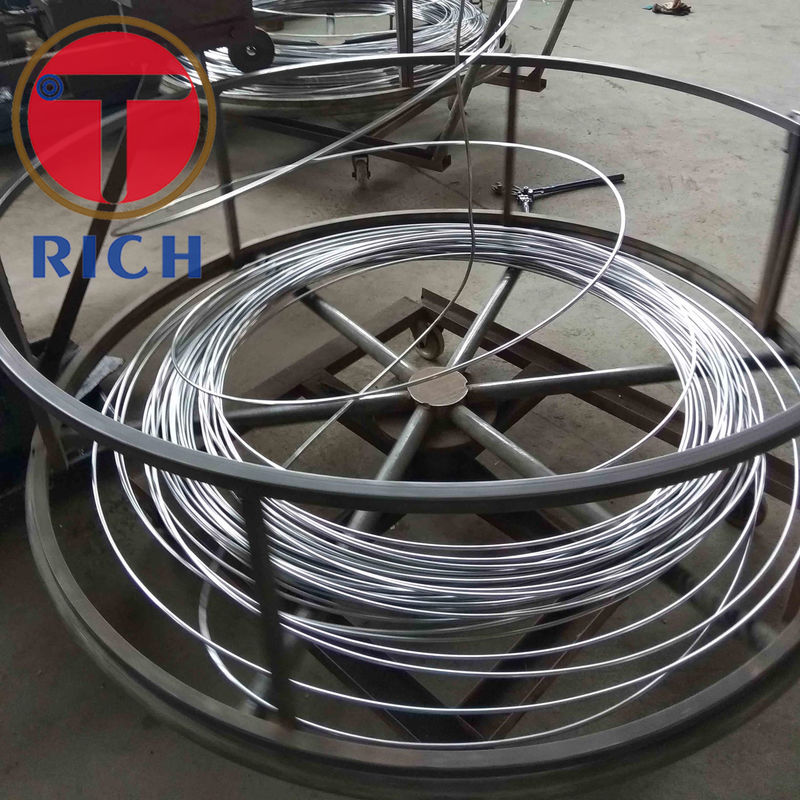

ERW Welded Carbon Steel Pipe / Alloy Steel Tube Round Shape Zinc Coating
Basic Properties
Place of Origin:
China
Brand Name:
TORICH
Certification:
ISO API
Model Number:
SAEJ526
Trading Properties
Minimum Order Quantity:
1 Ton
Price:
USD 1000-2000 per ton
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
6000 Ton per Month
Product Summary
TORICH SAEJ526 PVF/Copper Coating Single Wall Bundy Tube For Brake system 1. Standard SAEJ526 Welded low-carbon tubing EN10305-6 Welded cold drawn tubes from hydraulic and pneumatic power systems ASTM A254 Copper-brazed steel tubing 2. Steel Grade BHG1,SPCC,SPCD, SPCEN, ST14, ST15, ST16,DC04, DC05, ...
Product Details
Highlight:
welded steel pipe
,welding steel tubing
Product Name:
SAEJ526 PVF/Copper Coating Single Wall Bundy Tube For Brake System
Keyword:
Bundy Tube
Type:
Welder ERW
Material:
10#.20#.45#15Mn.20Mn.45Mn.30Mn2
Surface:
Zinc Coating
Shape:
Round Shape
Usage:
Brake Ystem
Payment Term:
T/T
Brand Name:
TORICH
MOQ:
1ton
Product Description
TORICH SAEJ526 PVF/Copper Coating Single Wall Bundy Tube For Brake system
1. Standard
SAEJ526 Welded low-carbon tubing
EN10305-6 Welded cold drawn tubes from hydraulic and pneumatic power systems
ASTM A254 Copper-brazed steel tubing
2. Steel Grade
BHG1,SPCC,SPCD, SPCEN, ST14, ST15, ST16,DC04, DC05, DC06
3. Heat Treatment
BK or NBK
4. Specification
| O D/ mm | 4 | 4.2 | 4.76 | 6 | 6.35 | 7.8 | 8 | 9.52 |
| W T | 0.5-1.0mm (0.5-0.7mm common WT) | |||||||
| Tolerance | ±0.05mm | |||||||
| Length | 180Kg/coil; 700-1000m/coil; per customer’s request | |||||||
5. Production Process
Tube welding– Cold drawing (reduce diameter)– Annealing in Protected Atmosphere— Cleaning-- Leakage detection– Zinc/Copper Plating– Keep pressure (Airtightness) – Packing
6. Surface Treatment
| Coating | Thickness | Salt spray test duration |
| Copper/WhiteZinc/Colour-Zinc | 8μm | 72h |
| PVF | 8μm+20μm | 1000-2000h |
| Military Green Zinc | 8μm | 180h |
| GALF | 8μm+20μm | 1000-2000h |
| Nylon | 8μm+40μm | 180h |
7. Packing: In coil, in wooden box with seaworthy packing
8. Application
1)Fluid carrying system for automobiles
2)Fluid carrying system for refrigerators
3) Wire condenser for chillers, showcase
4) Vending machine, ice machine etc.
