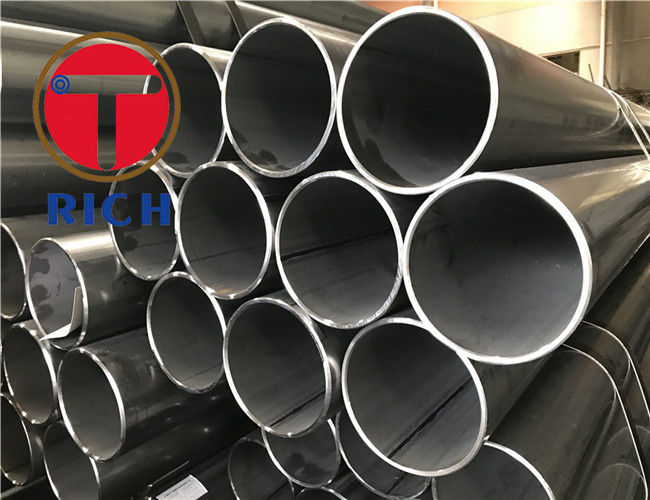

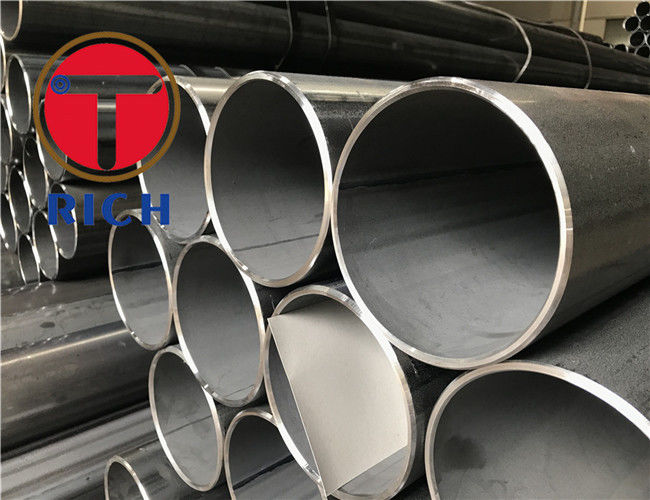

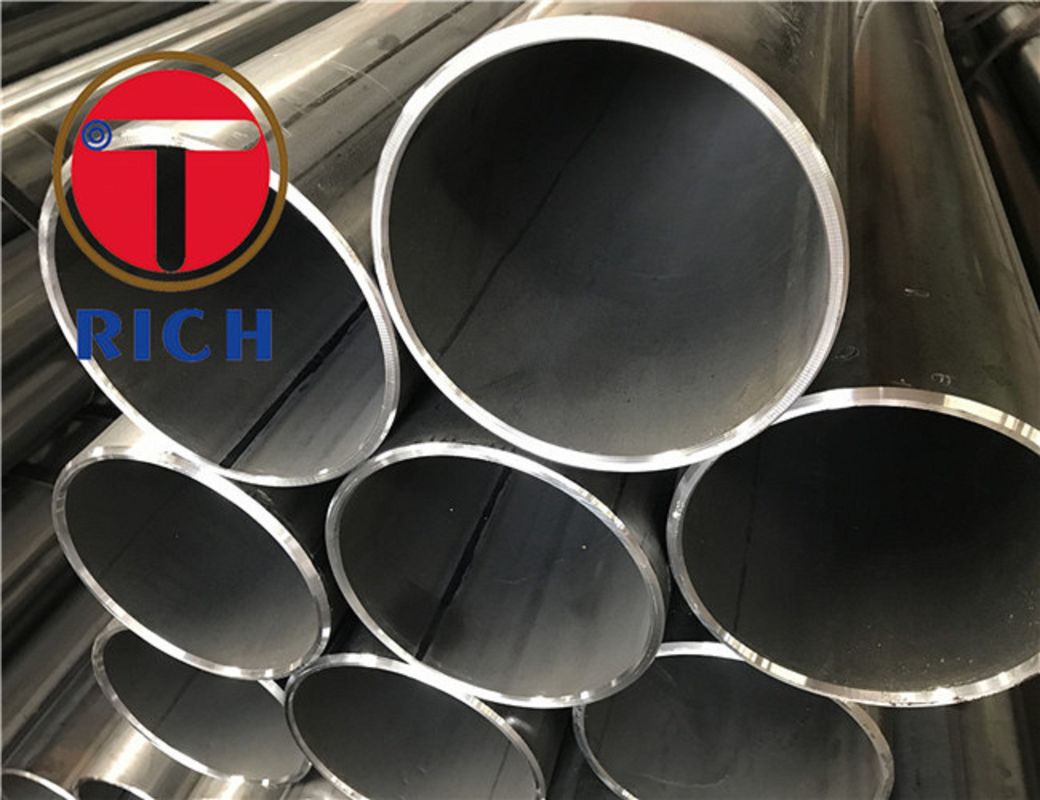

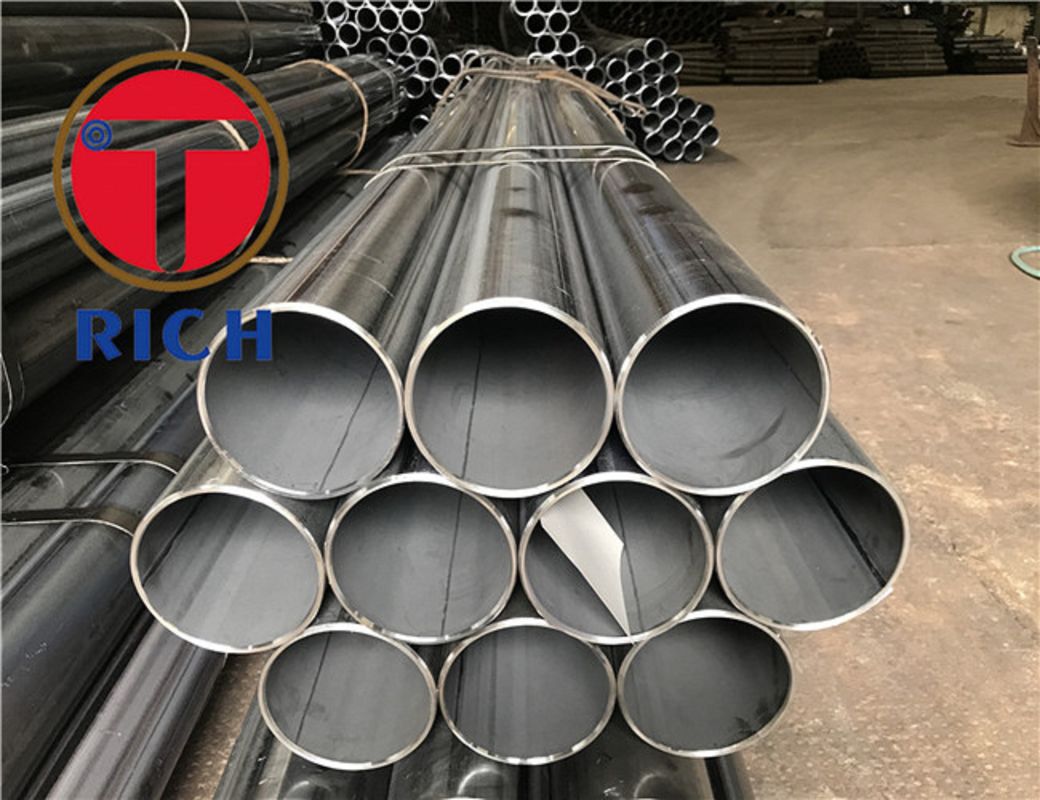

Welded Precision Steel Tube E275 E355 Fluid / Gas Transport Decoration EN10305-2 E195
Product Details
welding steel tubing
,electric resistance welded steel tube
TORICH EN10305-2 E155,E195,E235,E275,E355 Welded Cold Drawn DOM Steel Tubes
Steel Grade/Steel Material:
E155 E195 E235 E275 E355
Delivery Condition:
1 BK Cold finished(hard)
2 BKW Cold finished(soft)
3 BKS Cold finished and stress-relieved
4 GBK Annealed
5 NBK Normalized
Size Range:
O.D.:6-350mm
W.T.:1-35mm
L:max12000mm
Characteristic:
Good concentricity
Good OD and ID tolerance
High precision
Stable quality
Smooth roughness
DOM Steel Tube Production Process:
Raw material → Incoming inspection → Cutting → Heating → Piercing → Hammering →Pickling → Cold-drawing → Heat treatment → Physical chemistry test → Straightening → Ends cutting → Final inspection → Bundling →Storage
| Standard |
DIN2391, EN10305, ASTM A519, GB/T 8713, GB/T3669...
|
| Material |
20# ,45# ,Q345B,Q345D,25Mn,27sIMn,E355/st52, SAE1026...
|
| Specification |
ID OD
|
|
2-30mm 20-350mm
| |
| I.D Tolerance |
H8 H9
|
| Length |
3-6m (Customers usually choose the 4~5.8m)
|
| Straightness |
1/1000 |
| Surface |
polished or coating
|
| Delivery time |
25-45 days
|
| Packing |
Bundled with knitted plastic bag, wooden cases or according to customers' request.
|
| application |
Fluid and gas transport,decoration, construction,medical equipment, aviation,
|
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample of E155,E195,E235,E275,E355 EN10305-2 Welded Cold drawn Precision Steel Tubes for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
-
