ISO683-17 Cold Drawn Seamless Steel Pipe Bearing Steel Tube GCr15 100Cr6
Basic Properties
Place of Origin:
Zhejiang,China
Brand Name:
TORICH
Certification:
ISO9001 ISO14001 TS16949
Model Number:
ISO683-17
Trading Properties
Minimum Order Quantity:
5 tons
Price:
negotiable
Payment Terms:
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability:
50000 tons per year
Product Summary
ISO683-17 Cold Drawn Seamless Steel Tube Bearing Steel Pipe GCr15 100Cr6 from TORICH Products Description: ISO683-17 Cold Drawn Seamless Tube Bearing Steel Pipe GCr15 100Cr6 Steel Grade/Steel Material: Steel Grade mass fraction % C Si Mn P S Cr Mo GCr15 0.95-1.05 0.15-0.35 0.20-0.40 ≤0.027 ≤0.020 1...
Product Details
Highlight:
seamless steel pipe
,seamless carbon steel tube
Product Name:
ISO683-17 Cold Drawn Seamless Steel Tube Bearing Steel Pipe GCr15 100Cr6 From TORICH
Application:
Bearing
Shape:
Round
Type:
Cold Drawn
Keyword:
100Cr6
Material:
100Cr6,GCr15
Surface:
Customized
Length:
1-12000mm
OD:
10-260mm
WT:
2-30mm
Product Description
ISO683-17 Cold Drawn Seamless Steel Tube Bearing Steel Pipe GCr15 100Cr6 from TORICH
Products Description:
ISO683-17 Cold Drawn Seamless Tube Bearing Steel Pipe GCr15 100Cr6
Steel Grade/Steel Material:
| Steel Grade | mass fraction % | ||||||
| C | Si | Mn | P | S | Cr | Mo | |
| GCr15 | 0.95-1.05 | 0.15-0.35 | 0.20-0.40 | ≤0.027 | ≤0.020 | 1.30-1.65 | ≤0.10 |
| 100Cr6 | 0.93-1.05 | 0.15-0.35 | 0.25-0.45 | ≤0.025 | ≤0.015 | 1.35-1.60 | ≤0.10 |
| 100CrMnSi6-4 | 0.93-1.05 | 0.45-0.75 | 1.00-1.20 | ≤0.025 | ≤0.015 | 1.40-1.65 | ≤0.10 |
| 100CrMnSi6-6 | 0.93-1.05 | 0.45-0.75 | 1.40-1.70 | ≤0.025 | ≤0.015 | 1.40-1.65 | ≤0.10 |
| 100CrMo7 | 0.93-1.05 | 0.15-0.45 | 0.25-0.45 | ≤0.025 | ≤0.015 | 1.65-1.95 | 0.15-0.30 |
Delivery Condition: +C, +LC, +SR, +A, +N
Size Range:
OD: 10-260mm
WT: 2-30mm
Length: 2-12m
Our regular size: 29.4x5.6mm, 36.9x7.73mm, 62.9x7.3mm etc
Bearing Steel Tube Characteristic:
High strength
High-precision
Good Surface Quality
Stable quality
Smooth Roughness
TORICH QUALITY ASSURANCE
Production Processs:
Seamless Cold Drawn or Seamless Cold Rolled + Heat Treatment

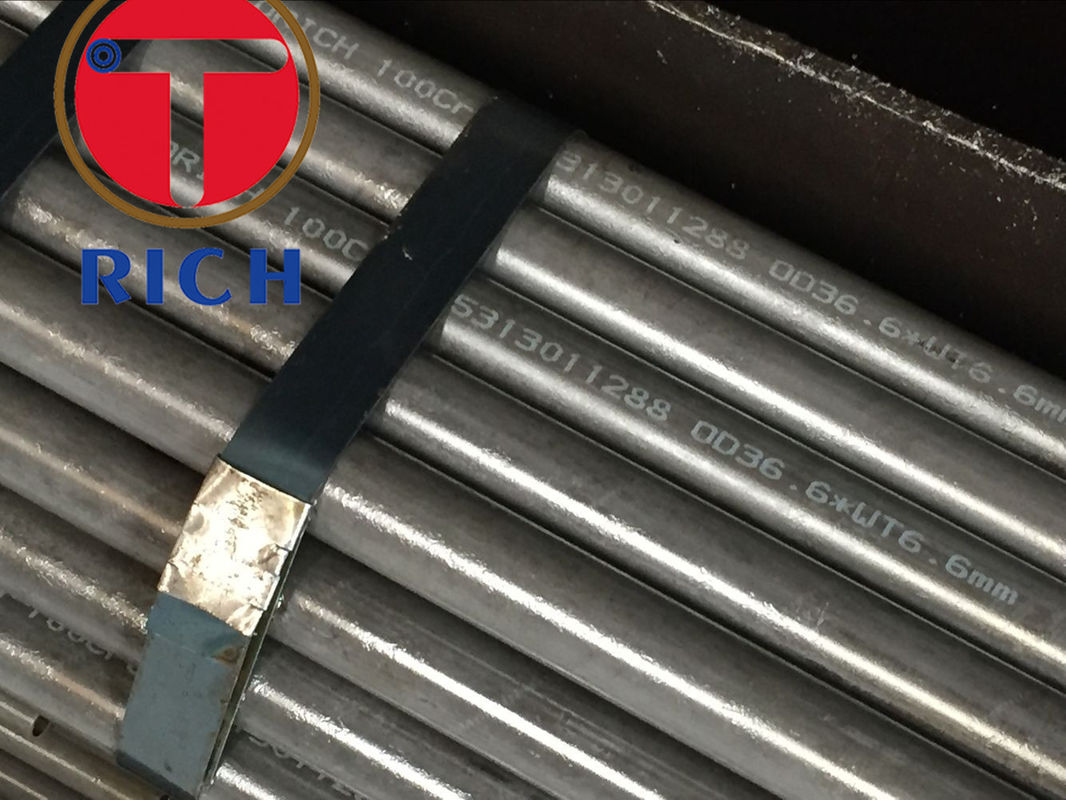

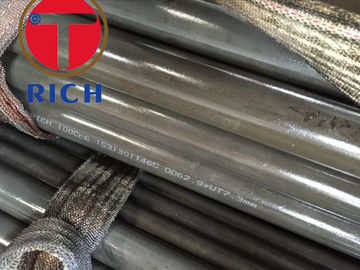

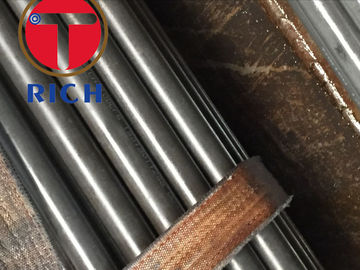

Production Steel Tube 100Cr6:
