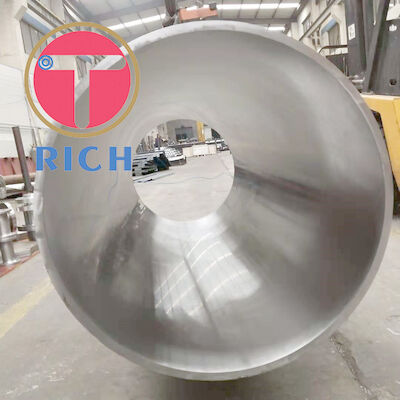

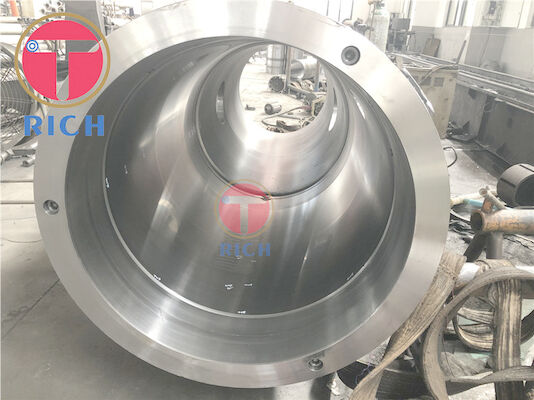

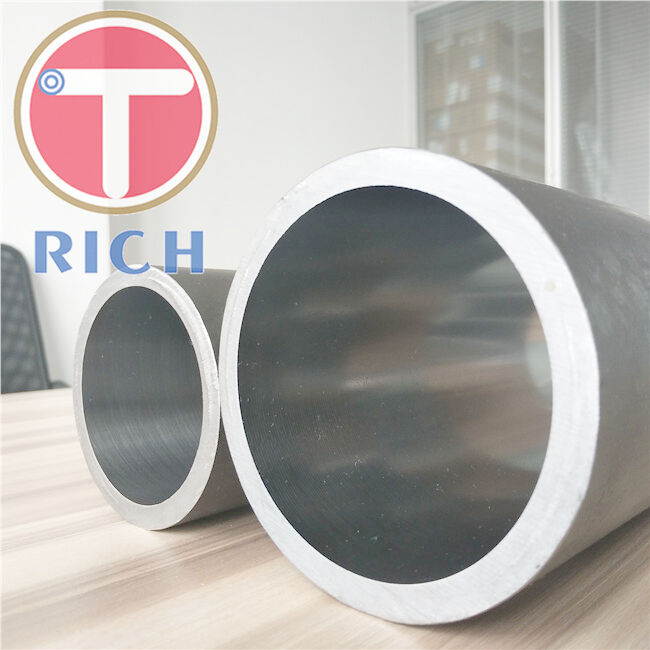

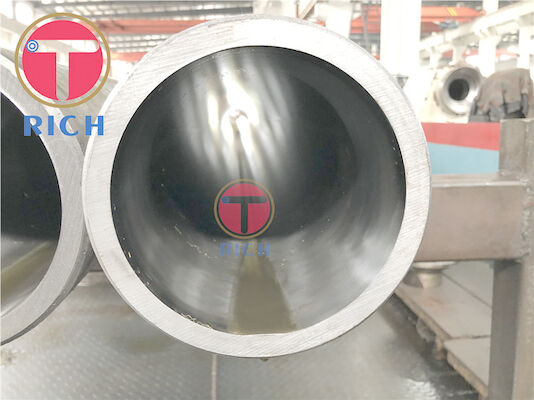

Cold Drawn Seamless Hydraulic Cylinder Tube Round Shape OD 420mm

Name: Cold Drawn Seamless Hydraulic Cylinder Tube Round Shape OD 420mm
Brand: TORICH INTERNATIONAL LIMITED
SKU: EN10305-1
Price: 1,775.00 USD
Availability: InStock

Brand Name:	TORICH
Model Number:	EN10305-1
MOQ:	5 tons
Price:	1700-1850 USD/ton
Payment Terms:	D/A, D/P, Western Union, MoneyGram
Supply Ability:	50000 tons per year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001-2008 ISO 14001 TS 16949 DNV LR

Material:

Carbon Steel

Steel Grade:

E235 E355 Etc

Standard:

EN10305-1

Dimension:

O.D.:6-350mm W.T.:1-35mm L:max12000mm

Manufacture Techinique:

Seamless Cold Drawn/Rolling

Application:

Cylinder/Telescopic Cylinders/Jack Cylinders/Lifting Systems/Oil Cylinders

Heat Treatment:

+SR, +C,or +N Specified By Customer

Shape:

Round

Packaging Details:

oil antirust in hexagonal bundles in carton boxes or per request

Supply Ability:

50000 tons per year

Highlight:

honed hydraulic cylinder tubing

hydraulic cylinder pipe

Product Description

Cold Drawn Pipe Hydraulic Seamless Tube for Cylinder +SR H E335

Standard: EN10305-1 Seamless Cold Drawn/Rolling Steel Tubes

Steel tubes for precision applications.

Applications: for Auto industry/for machinery use/Oil Cylinder Tube/Motorcyle shock absorber
Auto shock absorber inner cylinder/Telescopic Cylinders

Size range: O.D.:6-350mm W.T.:1-35mm L:max12000mm

Production: Cold Drawn + Honing + Skiving + Roller Burnish

Steel Grade and Chemical Compositions:

Steel Grade		C	Si	Mn	P	S	Al
Steel Name	Steel Number	max	max	max	max	max	min
E215	1.0212	0.10	0.05	0.70	0.025	0.025	0.025
E235	1.0308	0.17	0.35	1.20	0.025	0.025	-
E355	1.0580	0.22	0.55	1.60	0.025	0.025	-

Mechanical properties at room temperature
Steel Grade		Minimum values for the delivery condition
Steel Name	steel Nubmer	(+Cc)		(+LCc)		(+SR)			(+Ad)		(+N) NBK
Steel Name	steel Nubmer	Rm Mpa	A %	Rm Mpa	A %	Rm Mpa	ReH Mpa	A %	Rm Mpa	A %	Rm Mpa	ReH Mpa	A %
E215	1.0212	430	8	380	12	380	280	16	280	30	290-430	215	30
E235	1.0308	480	6	420	10	420	350	16	315	25	340-480	235	25
E355	1.0580	640	4	580	7	580	450f	10	450	22	490-630	355	22

Note: Special steel grade is also available, according to customer request.
