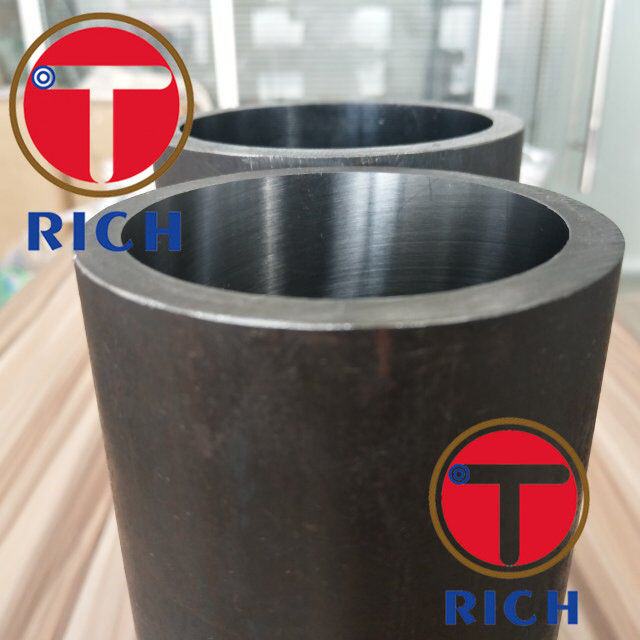

Cold Drawn Hydraulic Cylinder Tube ASTM A519 Max 12000mm Length Pipe

Brand Name:	Torich
Model Number:	GB/T3639、GB/T8713、EN10305-1:2002、EN10305-2:2002、 ASTM A519-2006、ASTM A513-2007、GB/T1591-2008、GB/T17396-2009
MOQ:	2 tons
Price:	USD1850-2000 per ton
Payment Terms:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability:	6000MT/Month

Detail Information

Place of Origin:

China

Certification:

GB/T 19001-2008 , ISO 9001:2008 , TS16949

Type::

Hydraulic Cylinder Tube

Material::

20#、45#、Q345B、Q345D、25Mn、27SiMn、E355

I.D.::

40-400mm

W.T.::

≥5mm

Technique::

Cold Draw

Alloy Or Not::

Non-alloy

Length:

Up To 12000mm According To Customer's Requirement

Place Of Origin:

Zhejiang, China (Mainland)

Surface Treatment:

As Customer's Required

Packaging Details:

Oil protection in bundles or in carton boxes or wooden boxes

Supply Ability:

6000MT/Month

Highlight:

Product Description

ASTM A519 DOM Tube For Hydraulic Cylinder And Pneumatic Cylinder

Standard : GB/T3639, GB/T8713, EN10305-1:2002, EN10305-2:2002,
ASTM A519-2006, ASTM A513-2007, GB/T1591-2008, GB/T17396-2009

Material: 20#, 45#, Q345B, Q345D, 25Mn, 27SiMn, E355

Hydraulic and pneumatic cylnder tube standard/size/tolerance

Working method	Tube ID (mm)	Length (m)	Straightness (mm/m)	Tolerance on ID	Tolerance on WT	ID Roughness (um)
Cold Draw	40-400	≤12m	0.2-0.5	/	±5%	≤1.6
Cold Rolled	40-150	≤12m	0.2-0.5	/	±5%	≤0.8
Cold Draw-Honed	40-400	≤8m	0.2-0.3	H8-H9	±5%	≤0.4
Cold Draw-Rolling	50-300	≤8m	0.2-0.3	H8-H9	±5%	≤0.4
Deep hole boring-Roing	250-400	≤8m	0.2-0.3	H8-H9	±8%	≤0.8
Deep hole boring-Honed Roing	250-400	≤8m	0.2-0.3	H8-H9	±8%	≤0.4

Mechancial property

Final supply condition Steel grade	Cold finished(hard)(BK)		(Cold drawn and stress-relieved(BK+S)
Final supply condition Steel grade	T.S bN/mm²	Elogation 5%	T.S bN/mm²	Y.S Bn/mm²	Elogation 5%	Hardness HB	Impact value(-20℃)J
20	≥550	≥8	≥520	≥400	≥15	170	/
45	≥680	≥5	≥630	≥520	≥12	190	/
Q345B	≥660	≥8	≥620	≥520	≥15	190	/
Q345D	≥660	≥8	≥620	≥520	≥15	190	≥27
25Mn	≥640	≥8	≥620	≥510	≥15	190	/
27SiMn	≥780	≥5	≥700	≥580	≥10	210	/
E355	≥700	≥8	≥650	≥580	≥15	195	≥27
