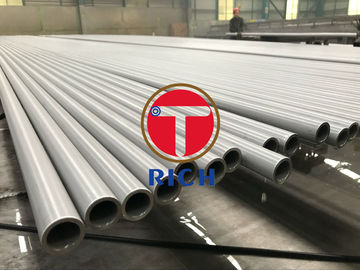

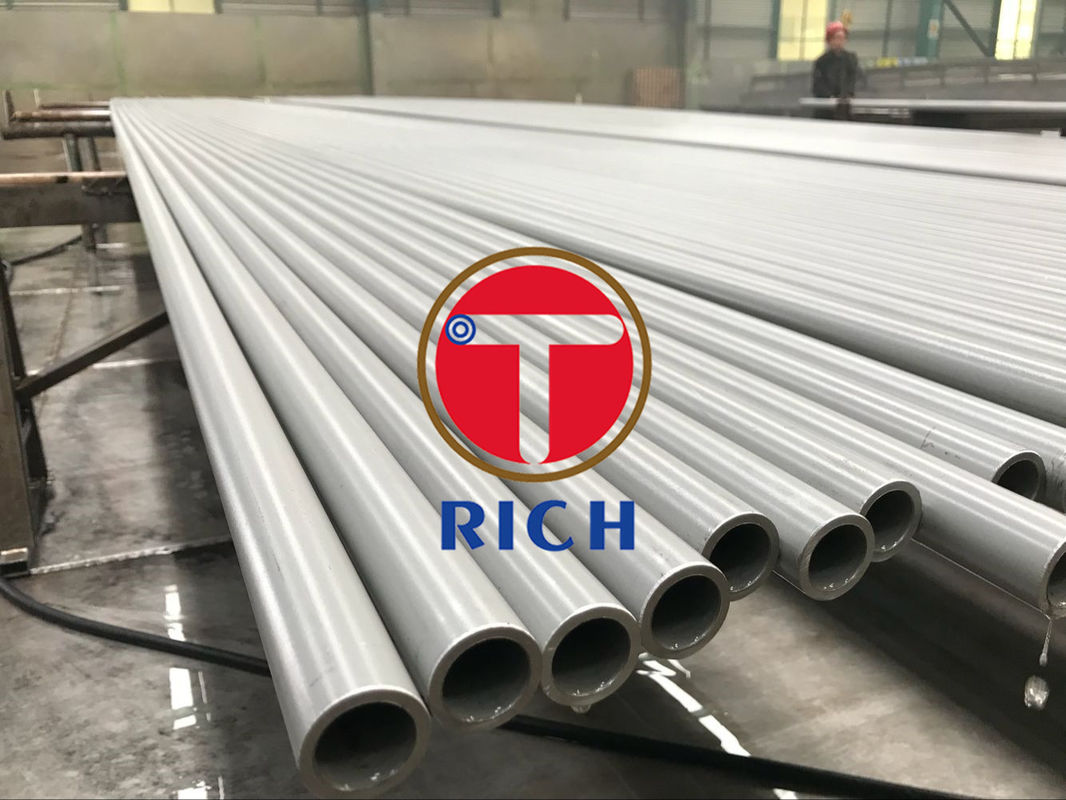

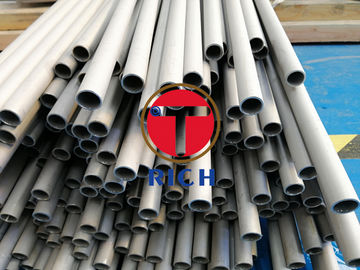

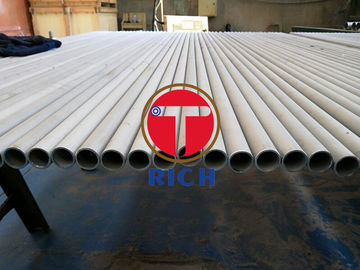

ASTM312 304 316 310s 2" Stainless Steel Tube For Piping Systems
Basic Properties
Place of Origin:
China
Brand Name:
Torich
Certification:
ISO BV SGS
Model Number:
A270 A213 A312
Trading Properties
Minimum Order Quantity:
0.5 tons
Price:
negotiable
Payment Terms:
L/C, , T/T
Supply Ability:
5000tons per year
Product Summary
ASTM312 304 316 310s 2" Stainless Steel Tube For Piping Systems Quick spec: Material: 304 316 etc Standard:A270 A213 A312 Length: 12m max,as per customer's requests,can be cutting into short one. Size range: OD 6-325mm WT 0.5-20mm Application: piping systems Surface: Pickling + annealing or bright ...
Product Details
Highlight:
stainless steel round tube
,stainless tube steel
Material:
304 ,316 Etc
Size:
6-325mm
Length:
12m Max
Application:
Piping Systems
Surface:
Polishing
End:
Plain
Certification:
ISO
Steel Grade:
300 Series
Product Description
ASTM312 304 316 310s 2" Stainless Steel Tube For Piping Systems
Quick spec:
Material: 304 316 etc
Standard:A270 A213 A312
Length: 12m max,as per customer's requests,can be cutting into short one.
Size range: OD 6-325mm WT 0.5-20mm
Application: piping systems
Surface: Pickling + annealing or bright annealing or polishing.
Equipment:
Cold drawing machine
Straightener
Annealing furnace
Pickling Unit
Inspection equipment:
Optical Spectrum Analyzer
Universal material experiment machine
Intergranular Corrosion Device
Impact tester
Hydraulic pressure tester
ECT
Roughness Detector
Ect
Chemical Requirements
| | C | Si | Mn | P≤ | S≤ | Cr | Mo | Ni | Other |
| 201 | ≤0.15 | ≤1.00 | 5.5-7.5 | 0.06 | 0.03 | 16-18 | - | 3.5-5.5 | N≤0.25 |
| 202 | ≤0.15 | ≤1.00 | 7.5-10.0 | 0.06 | 0.03 | 17-19 | - | 4.0-6.0 | N≤0.25 |
| 301 | ≤0.15 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 16-18 | - | 6.0-8.0 | - |
| 302 | ≤0.15 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 17-19 | - | 8-10.0 | - |
| 303 | ≤0.15 | ≤1.00 | ≤2.00 | 0.2 | ≥0.015 | 17-19 | ≤0.6 | 8.0-10.0 | - |
| 304 | ≤0.08 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 18-20 | - | 8-10.5 | - |
| 304L | ≤0.03 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 18-20 | - | 9-13 | - |
| 305 | ≤0.12 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 17-19 | - | 10.5-13 | - |
| 309S | ≤0.08 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 22-24 | - | 12-15 | - |
| 310S | ≤0.08 | ≤1.5 | ≤2.00 | 0.045 | 0.03 | 24-26 | - | 19-22 | - |
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 16-18 | 2-3 | 10-14 | - |
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 16-18 | 2-3 | 12-15 | - |
| 317 | ≤0.03 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 18-20 | 3-4 | 11-15 | - |
| 317L | ≤0.03 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 18-20 | 3-4 | 11-15 | - |
| 405 | ≤0.08 | ≤1.00 | ≤1.00 | 0.04 | 0.03 | 11.5-14.5 | - | ≤0.6 | AL0.1-0.3 |
Application:
