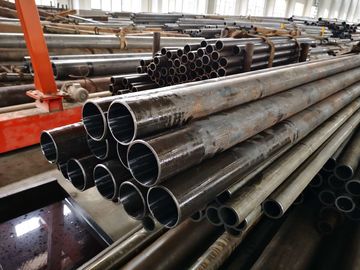

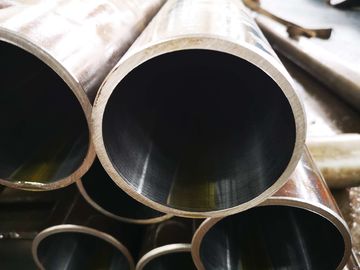

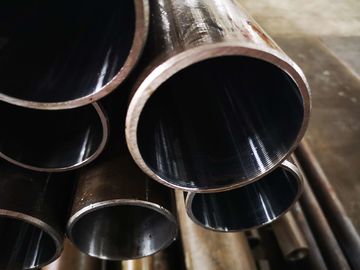

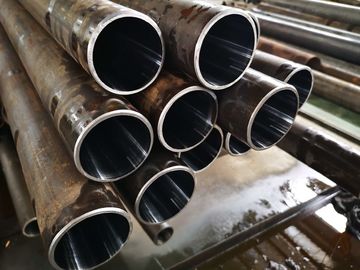

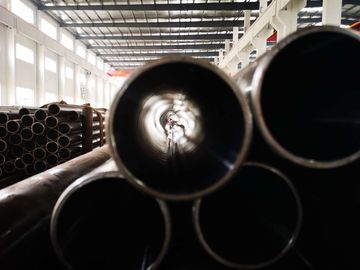

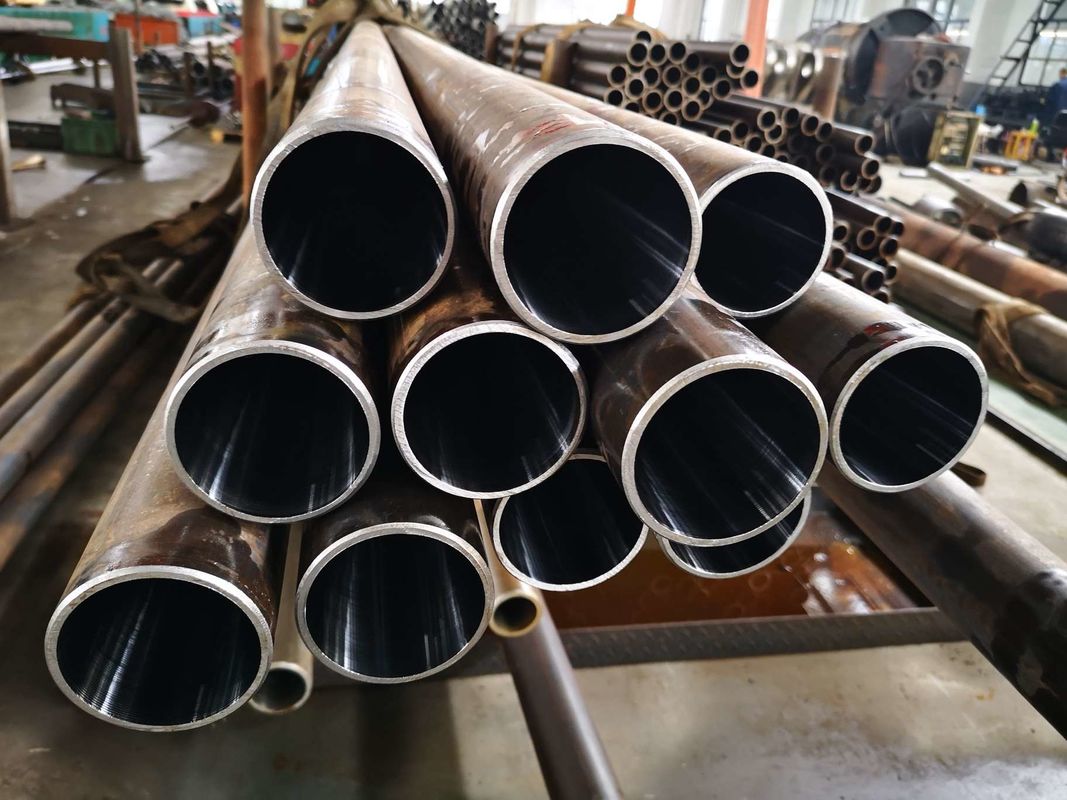

DIN 2391 ST52 Seamless Steel Tube OD 5-420mm For Pneumatic Cylinder
Basic Properties
Place of Origin:
Zhejiang,China
Brand Name:
TORICH
Certification:
ISO9001 ISO14001 TS16949
Model Number:
DIN 2391, EN 10305-1, SAE J524, ASTM A519 and GB3639
Trading Properties
Minimum Order Quantity:
3 TONS
Price:
negotiable
Payment Terms:
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability:
5000 TONS PER MONTH
Product Summary
DIN 2391 ST52 Seamless Steel Tube OD 5-420mm For Pneumatic Cylinder Usage Applicable to hydraulic pressure, pneumatic cylinder,oil pump barrel, motor body, transmission shaft, etc. Honed tube for hydraulic cylinder Standard DIN2391, EN10305, JIS G3445, ASTM A519, GB/T 8713... Material ST45, ST52, ...
Product Details
Highlight:
seamless steel pipe
,precision stainless steel tubing
Product Name:
DIN 2391 ST52 Seamless Steel Tube OD 5-420mm For Pneumatic Cylinder
Keyword:
ST52 Seamless Steel Tubes
Application:
Applicable To Hydraulic Pressure, Pneumatic Cylinder,oil Pump Barrel, Motor Body, Transmission Shaft, Etc.
Shape:
Round
Material:
ST52 ST52.3 E355 ST37 16Mn Q345B 1020
Delivery Condition:
BK
OD:
5-420mm
WT:
0.5-50mm
Length:
Max 12000mm
Brand:
TORICH
Product Description
DIN 2391 ST52 Seamless Steel Tube OD 5-420mm For Pneumatic Cylinder
Usage
Applicable to hydraulic pressure, pneumatic cylinder,oil pump barrel, motor body, transmission shaft, etc.
| Honed tube for hydraulic cylinder | ||
| Standard | DIN2391, EN10305, JIS G3445, ASTM A519, GB/T 8713... | |
| Material | ST45, ST52, E355, E355SR, STKM13C, SAE1026, 20#, Q235B, CK45... | |
| Heat treatment | BK+S | |
| Specification | Outer diameter(mm) | Inner diameter(mm) |
| 50-300mm | 40-250 | |
| I.D Tolerance | H8-H9 | |
| Length | 3-9m (Customers usually choose the 4~5.8m) | |
| Straightness | 1/1000 | |
| ID roughness | RA 0.4micron(max) | |
| Technology | Honed & SRB(SKIVED AND ROLLER BURNISHED ) | |
| Scope | Honed tube for hydraulic cylinder, swivel crane, injection machine and construction machine application | |
Process
Raw materials- Cold drawn/rolled- Heat treatment(BKS)- Honed or SRB- packing
Steel Grade
ST52, ST52.3, E355, SAE1026, Q345B.
*Low temperature impact test upon request (27J/-20°C).
Size
Processing Cylinder diameterLength /mmStraightnessSize accuracyWall thickness/mmInner boreroughness
Cold Drawn/RolledID28~OD400≤12M0.3~1.0m m/m H8-H11±5%0.8~1.6um
Honed/SRBID30~OD500≤12M0.3~1.0m m/m H8±5%0.4~0.8um
Packing: With anti-rust oil on inner diameter of each pipe,tube caps on both ends, hexagonal bundles of max 3,000 kg with several steel strips, nylon bag and waterproof paper package each bundle. Of course, customers can customize other packing way.
