SAE J526 ERW Welded Steel Pipe / Low Carbon Steel Tubing For Automotive Fuel
Product Details
welded steel pipe
,welding steel tubing

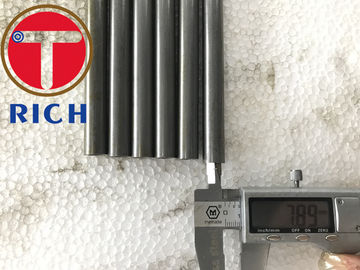

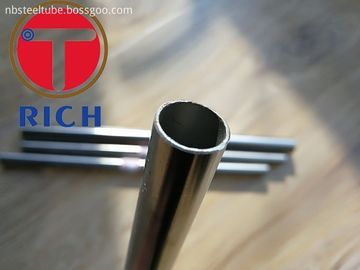

SAE J526 Welded Automotive Fuel Steel tube
Application:covers welded single-wall low-carbon steel tubing intended for generalautomotive, refrigeration, hydraulic, and other similar applications requiring tubing of a quality suitable forbending, flaring, beading, forming, and brazing.
size:length--2~12m WT--2~4.5mm OD--16~50mm
Manufacture:The tubing shall be made from a single strip of steel shaped into a tubular form, the edges ofwhich are joined and sealed by a suitable welding process. After welding, the bead shall be removed from theoutside to provide a smooth round surface and the tubing shall be processed in such a manner as to producea finished product which will meet all requirements of this document. Typically this type of tubing is availablein both coiled and straight condition. Straightness requirements should be agreed upon between supplier andpurchaser.
Inspection items:
chemical composition
Tensile test
Ultrasonic examination
Eddy current flaw detection
Bending test
Flattening test
Permissible Tolerance of Outer Diameter and Wall Thickness (mm)
| Type of steel Tube | Dimension of steel tube | Permissible tolerance | ||
| Average class | High class | |||
| Hot-rolled (extruded and expanded) tube | Outer diameter D | All | ±1% (min.+/-0.50) | - |
| Wall thickness | All | +15%/-12.5% (min.+4.5/-4.0) | - | |
| Cold-drawn (cold-rolled) tube | Outer diameter D | 6~10 | ±0.2 | ±0.15 |
| >10~30 | ±0.40 | ±0.20 | ||
| >30~50 | ±0.45 | ±0.30 | ||
| >50 | ±1% | ±0.8% | ||
| Wall thickness | <1 | ±0.15 | ±0.12 | |
| >1~3 | +15% -10% | +12.5% -10% | ||
| >3 | +12.5% -10% | ±10% | ||
| Note: For hot-expanded tubes with outer diameter>35mm,the permissible tolerance of wall thickness is±18%. | ||||
Longitudinal Mechanical Properties of Steel Tubes
| NO. | Steel Grade | Tensile Strength(Mpa) | Yield point(Mpa) | Elongation after breaking(%) | |
| s<16 | s>16 | ||||
| Not less than | |||||
| 1 | 10 | 335~475 | 205 | 195 | 24 |
| 2 | 20 | 410~550 | 245 | 235 | 20 |
| 3 | Q295 | 430~610 | 295 | 285 | 22 |
| 4 | Q345 | 490~665 | 325 | 315 | 21 |
Detailed Images
QUALITY CONTROL
1~ Incoming Raw Material Inspection
2~ Raw Material Segregation to avoid steel grade mix-up
3~ Heating and Hammering End for Cold Drawing
4~ Cold Drawing and Cold Rolling, on line inspection
5~ Heat Treatment, +A, +SRA, +LC, +N, Q+T
6~ Straightening-Cutting to specified length-Finished Measuring Inspection
7~ Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8~ Packing and Stocking.
