EN10216-1 Thick Wall Steel Tube Round Steel Pipe 100mm Wall Thickness

Minimum Order Quantity : 5MT Price : USD 1700-1800 per ton
Packaging Details : Anti-rust protection, in hexagonal bundles with seaworthy packing. Delivery Time : 30~40 days
Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram Supply Ability : 6000MT/Month
Place of Origin: China Brand Name: Torich
Certification: GB/T 19001-2008 , ISO 9001:2008 , TS16949 , CCS , DNV , GL , PED Model Number: EN10216-1

Detail Information

Product Name:: Thick Wall Steel Tube Dimension:: 6-350mm*1-30mm*12000mm
Application:: For Manufacturing Pipelines, Vessel. Euqipment Pipe Fittings And Steel Structure Steel Grade:: 10#, 20# ,etc
Section Shape:: Round Standard:: EN 10216-1
High Light:

thick wall steel pipe

,

heavy wall steel pipe

Product Description

EN10216-1 100mm Wall Thickness Heavy Wall Steel Tubing Round Steel Pipe



Standard: EN10216-1 Seamless steel tubes for pressure purposes-Technical delivery conditions

Non-alloy steel tubes with specified room temperature properties


Applications: for manufacturing pipelines, vessel. Euqipment.pipt fittings and steel structure

Size range: O.D.:10.2-711mm     W.T.:1-100mm      L:max12000mm



Chemical composition

Steel Grade C Si Mn P S Cr Mo
Steel Name Steel Number max max max max max max max
P195TR1 1.0107  0.13 0.35 0.70 0.025 0.020  0.30 0.08
P195TR2 1.0108  0.13 0.35 0.70 0.025 0.020  0.30 0.08
P235TR1 1.0254  0.16 0.35 1.20 0.025 0.020  0.30 0.08
P235TR2 1.0255 0.16 0.35 1.20 0.025 0.020  0.30 0.08
P265TR1 1.0258 0.20 0.40 1.40 0.025 0.020  0.30 0.08
P265TR2 1.0259 0.20 0.40 1.40 0.025 0.020  0.30 0.08

Note: Special steel grade is also available, according to customer request.




Manufacturing:

The tubes are manufactured by a seamless process



Delivery condition:

Hot formed:

TR1    As formed or normalized or normalising-formed

TR2    Normalized or normalising-formed



Hot formed + cold finished:

TR1 and TR2    Normalized



Mechanical properties

Steel Grade Tensile properties Tensil Elongation
Steel name Steel number Upper yield strength Strength A min.%
   ReH min for Wall Thickness Rm
T mm
T≤16 16<T≤40 40<T≤60
Mpa Mpa Mpa Mpa l t
P195TR1 1.0107  195  185 175 320-440 27 25
P195TR2 1.0108  195  185 175 320-440 27 25
P235TR1 1.0254  235  225 215 360-500 25 23
P235TR2 1.0255 235  225 215 360-500 25 23
P265TR1 1.0258 265  255  245  410-570 21 19
P265TR2 1.0259 265  255  245  410-570 21 19



Appearance:

The tubes are free from exernal and internal suface defects that can be detect by visual examination.

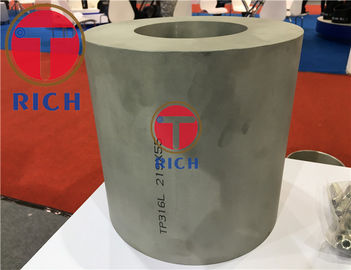

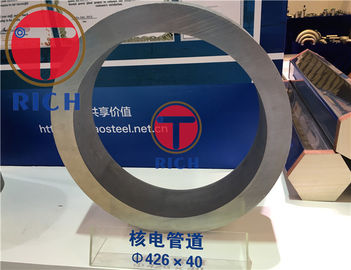

EN10216-1 Thick Wall Steel Tube Round Steel Pipe 100mm Wall Thickness 0EN10216-1 Thick Wall Steel Tube Round Steel Pipe 100mm Wall Thickness 1EN10216-1 Thick Wall Steel Tube Round Steel Pipe 100mm Wall Thickness 2EN10216-1 Thick Wall Steel Tube Round Steel Pipe 100mm Wall Thickness 3














EN10216   Seamless steel tubes for pressure purposes- Technical delivery condition:

EN10216-1   Non-alloy steel tubes with specified room temperature properties

EN10216-2   Non-alloy steel tubes with specified elevated temperature properties

EN10216-3   Alloy fine grain steel tubes

EN10216-4   Non-alloy and alloy steel tubes with specified low temperature properties

EN10216-5   Stainless steel tubes





Normative references:

DIN V  17006-100    Designation for steel- Additional symbols for steel names



DIN EN 10208-1    Technical delivery conditions for steel pipes for use with combustible fluids - Part 1:

                                 Pipes of requirement class A



DIN EN 10224       Non-alloy steel tubes for the conveyance of acqueous liquids including water for human

                             consumption - Technical delivery conditions



DIN EN10297-1     Seamless steels for mechanical and general engineering purposes - Part 1:

                             Non-alloy and alloy steel tubes



EN10217              Welded steel tubes for pressure purposes



EN10002-1, Metallic materials - Tensile Testing - Part 1: Method of test at ambient temperature



EN10020,    Definition and classification of grades of steel



EN10021,    General technical delivery requirements for steel and iron products



EN10027-1, Designation systems for steel - Part 1 : Steel names, principal symbols



EN10027-2, Designation systems for steel - Part 2: Numerical systems



EN10045-1, Metallic materials - Charpy impact test - Part 1: Test method



EN10052,     Vocabulary of heat treatment terms for ferrous products.



EN10204,     Metallic products - Types of inspection documents



EN10233,     Metallic materials - Tube - Flattening Test



ENV10220, Seamless and welded steel tubes - Dimensions and masses per unit length



EN10246-1,  Non-destructive testing of steel tubes - Part 1:  Automatic electromagnetic testing of seamless and welded ( execpt submerged arc-welded) ferromagnetic steel tubes for verification of hydraulic leak-tightness



EN10246-5, Non-destructive testing of steel tubes - Part 5: Automatic full peripheral magnetics transducer/flux leakage testing of seamless and welded ( expcept submerged arc-welded) ferromagnetic steel tubes for the detection of longitudinal imperfections



EN10246-7, Non-destructive testing of steel tubes - Part 7: Automatic full peripheral altrasonic seamless and welded ( except submerged arc welded) steel tubes for the detection of longitudinal imperfections
