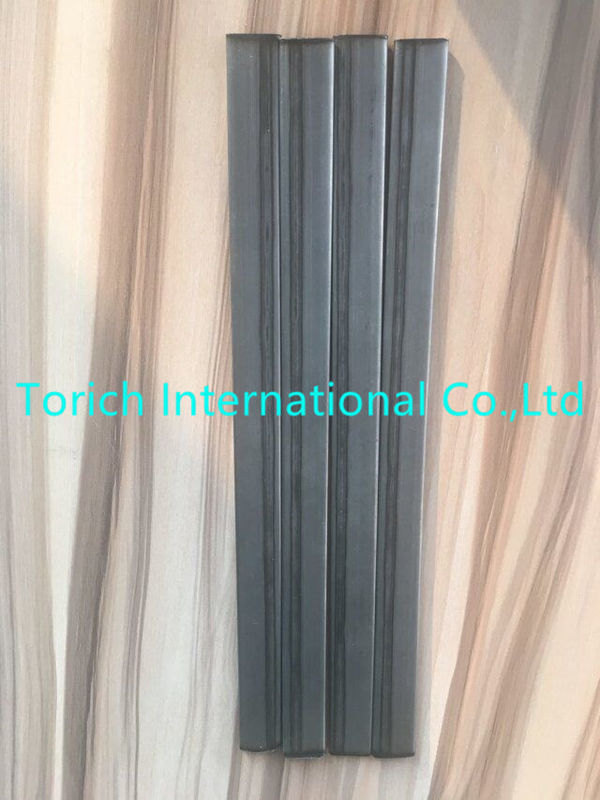

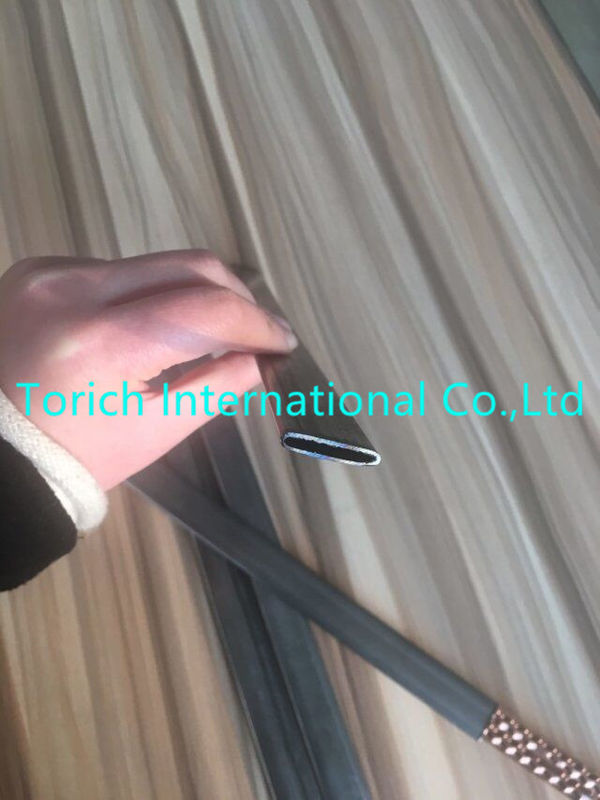

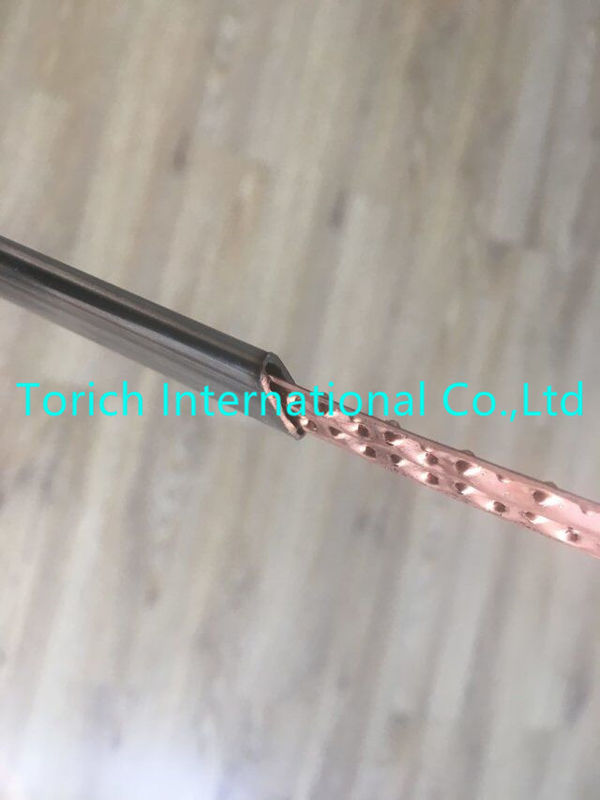

Flat Elliptical Oval Welded Special Steel Pipe SAE J526 1010 High Precision
Basic Properties
Place of Origin:
Zhejiang,CN
Brand Name:
TORICH
Certification:
ISO9001 ISO14001 TS16949
Model Number:
SAE J526 1010
Trading Properties
Minimum Order Quantity:
5 TONS
Price:
negotiable
Payment Terms:
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability:
50000 TONS PER YEAR
Product Summary
Flat Elliptical Oval Welded Special Steel Pipe SAE J526 1010 High Precision Product Description: SAE J526 DOM Carbon Seamless Steeel Tube 16X1 20X2 DIN2391 ST35 CDS DOM Steel Tube DIN2393 ST35 CDW DOM Steel Tube DOM Steel Pipe Steel Grade/Steel Material: E155,E195,E235,E275,E355 Delivery Condition: ...
Product Details
Highlight:
alloy steel seamless pipe
,rectangular steel pipe
Product Name:
Flat Elliptical/Oval Steel Pipe,Special Steel Pipe From TORICH
Keyword:
Special Steel Pipe
Material:
1010,1020,1045,E155,E195,E235,E275,E355
Shape:
Round
Type:
Welded Steel Pipe
Delivery Condition:
BK, BKW, BKS, GBK, NBK
Length:
Max 12000mm
OD:
4.0-420mm
WT:
0.5-50mm
Brand:
TORICH
Product Description
Flat Elliptical Oval Welded Special Steel Pipe SAE J526 1010 High Precision
Product Description:
SAE J526 DOM Carbon Seamless Steeel Tube
16X1 20X2 DIN2391 ST35 CDS DOM Steel Tube
DIN2393 ST35 CDW DOM Steel Tube
DOM Steel Pipe
Steel Grade/Steel Material:
E155,E195,E235,E275,E355
Delivery Condition:
BK, BKW, BKS, GBK, NBK
Size Range:
OD: 4.0-420mm
WT:0.5-50mm
Length: max 12000mm
Our regularproduction size 60x50 42x3.2mm
Characteristic:
Good concentricity
Good OD and ID tolerance
High Precision
Stable quality
Smooth Roughness
TORICH QUALITY ASSURANCE
Production Processs:
ERW/Seamless tube and Cold Drawing or Cold Rolling Production
| Dash Size | Norminal Tubing ODmm | OD Basic mm | OD Tolerance ±mm | WT Basic mm | WT Tolerance ±mm |
| 2 | 3.18 | 3.18 | 0.05 | 0.64 | 0.13 |
| 3 | 4.76 | 4.78 | 0.08 | 0.71 | 0.13 |
| 4 | 6.35 | 6.35 | 0.08 | 0.71 | 0.08 |
| 5 | 7.94 | 7.92 | 0.08 | 0.71 | 0.08 |
| 6 | 9.53 | 9.53 | 0.08 | 0.71 | 0.08 |
| 7 | 11.11 | 11.13 | 0.10 | 0.76 | 0.08 |
| 8 | 12.70 | 12.70 | 0.10 | 0.76 | 0.08 |
| 8 | 12.70 | 12.70 | 0.10 | 0.89 | 0.09 |
| 9 | 14.29 | 14.27 | 0.10 | 0.76 | 0.08 |
| 10 | 15.88 | 15.88 | 0.10 | 0.89 | 0.09
|
