DIN2391 Honed Hydraulic Cylinder Tube Cold Drawn Seamless Steel
Product Details
honed hydraulic cylinder tubing
,honed hydraulic cylinder tube
| Standard | DIN2391, EN10305, DIN17175 etc |
| Size | OD: 40-400mm WT: 5-40mm Length : Random (5-7m) or Fixed length as per order of confirmation |
| Material | ST45, ST52, E355, E355SR, STKM13C, SAE1026, 20#, Q235B, CK45, CK20, 16Mn, 27SiMn |
| Supply Condition | BK(+C), BK+S (+SR) |
| Technology | Honed & SRB (SKIVED AND ROLLER BURNISHED ) |
| Polishing | To 0.4Ra Max |
| Tolerance | Inner Diameter: ISO H8 Wall Thickness: Diameter ＞40, ±0.2mm; Diameter 40-100, ±0.3mm; Diameter ＞100, ±0.5mm |
| Application | For hydraulic cylinder, swivel crane, injection machine and construction machine application |
| Protection | The tubes are supplied with caps at the ends and protected internally an externally with that provide stemporary protection against oxidization. Special surface protection can be agree upon. |
Chemical Composition
| Grade | C | Si | Mn | P≤ | S≤ | Cr≤ |
| ST45 | 0.17-0.24 | 0.17-0.37 | 0.35-0.65 | 0.035 | 0.035 | 0.025 |
| ST52(E355) | ≤0.22 | ≤0.55 | ≤1.6 | 0.025 | 0.025 | 0.025 |
| SAE1026 | 0.22-0.28 | 0.15-0.35 | 0.60-0.90 | 0.040 | 0.050 | / |
| 27SiMn | 0.24-0.32 | 1.10-1.40 | 1.10-1.40 | 0.035 | 0.035 | 0.030 |
| 20# | 0.17-0.24 | 0.17-0.37 | 0.35-0.65 | 0.035 | 0.035 | 0.025 |
QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking
100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.

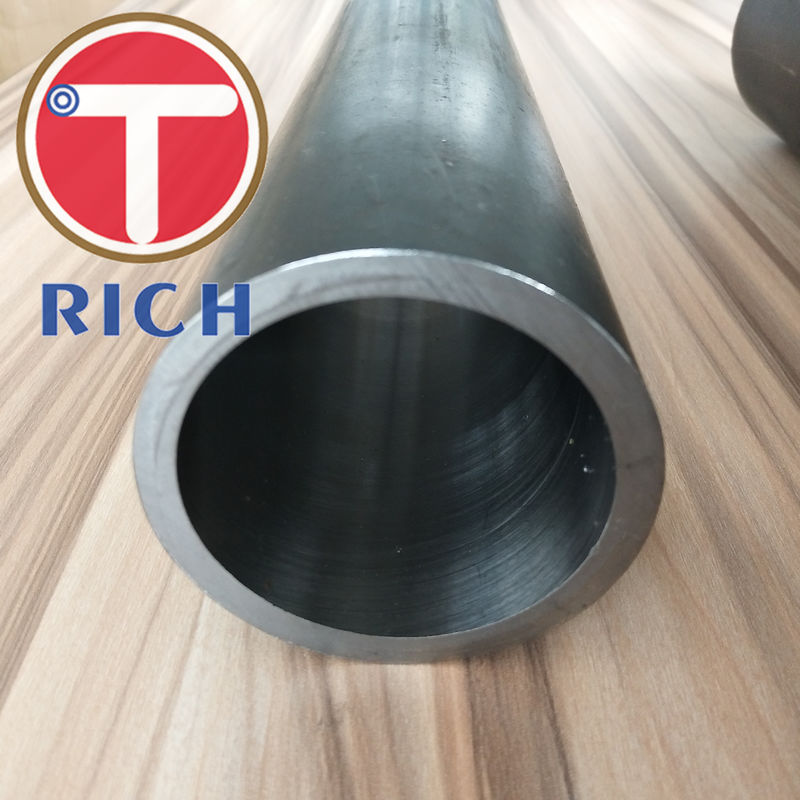

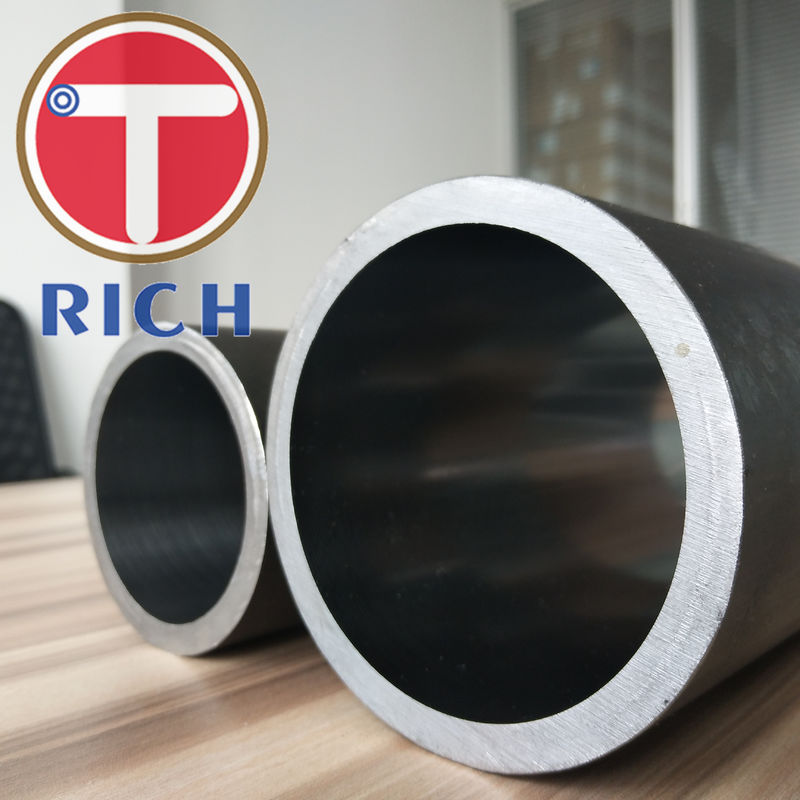

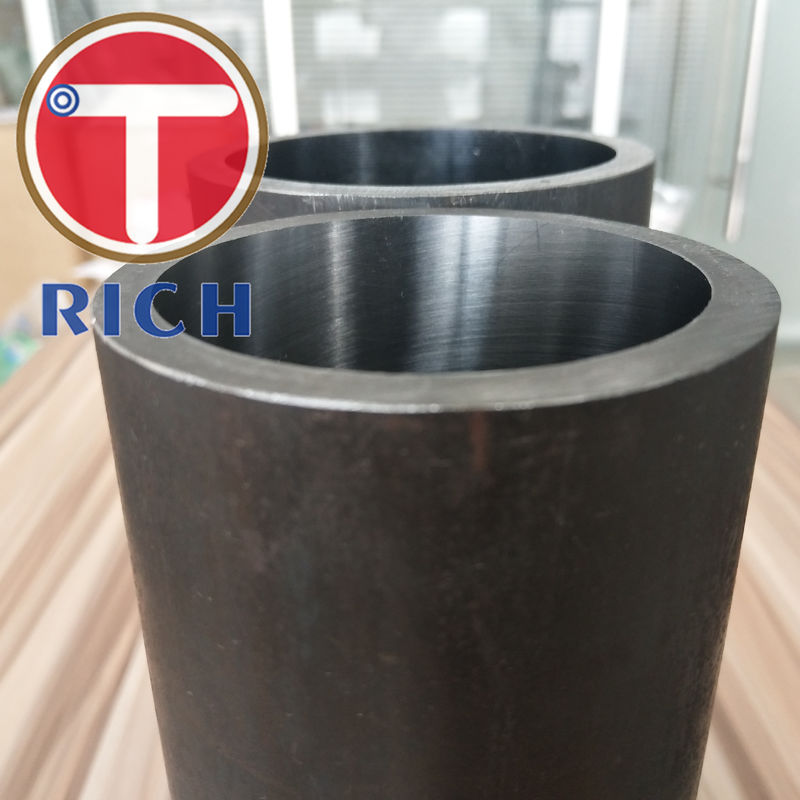

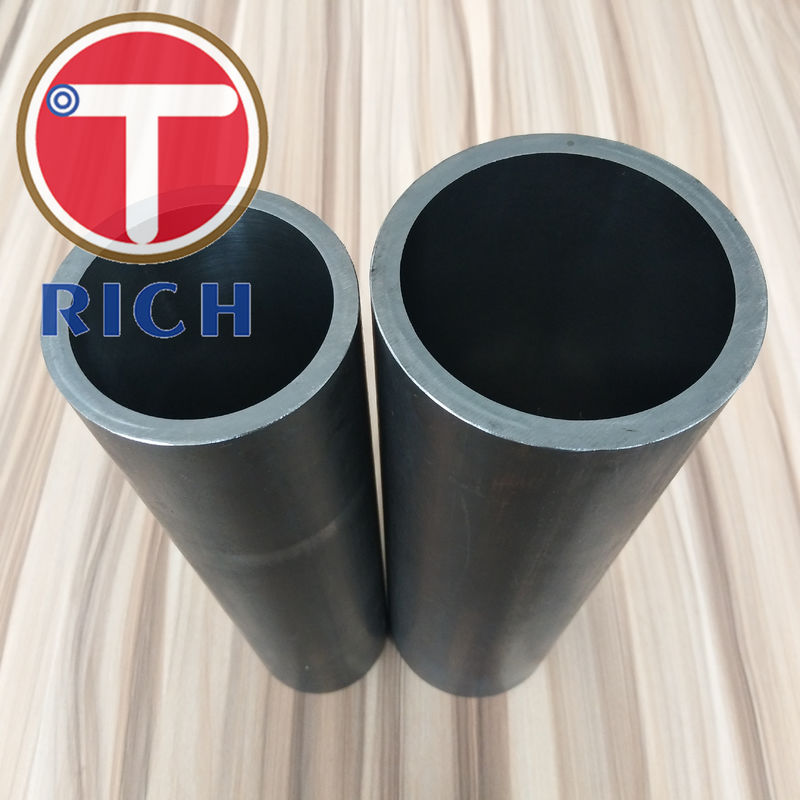

Products Show
Mechanical Seamless Honed Tube Hydraulic Cylinder Alloy Steel Astm A519
Seamless Seel Tubes are packed in wooden boxes or hexagonal bundles in seaworthy packing.
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
