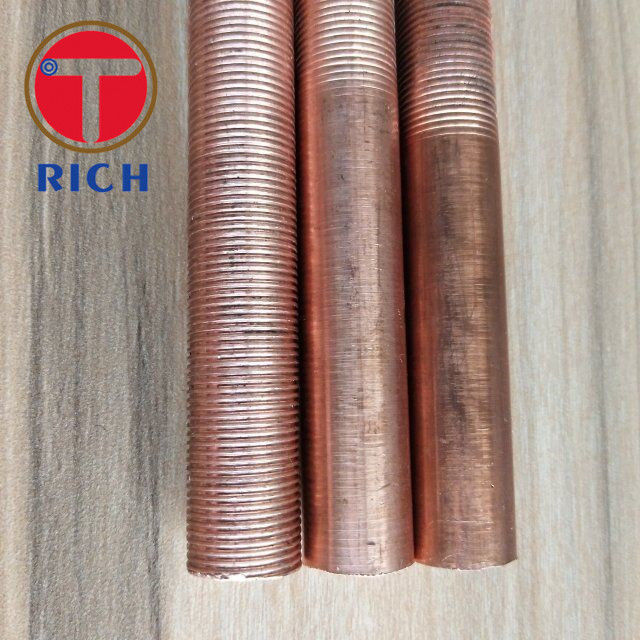

Brand Name: | TORICH |
Model Number: | GB/T19447 C10200 |
MOQ: | 500 KGS |
Price: | negotiable |
Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
Supply Ability: | 50000 TONS PER YEAR |
Plain tube (mm) | Finned section dimensions (mm) | Ratio | De | |||
D×t | Tp | dd | dr | di | η | mm |
19×2 | 0.8 | 18.8 | 17 | 134 | 2.8 | 17.9 |
19×2 | 1 | 18.8 | 16.8 | 13.4 | 2.5 | 17.8 |
19×2 | 1.25 | 18.8 | 16.6 | 13 | 2.2 | 17.8 |
19×2 | 1.5 | 18.8 | 16.4 | 13 | 2 | 17.7 |
19×2 | 2 | 18.8 | 23 | 13 | 1.7 | 17.5 |
25×2.5 | 0.8 | 24.8 | 22.6 | 18.8 | 2.8 | 23.9 |
25×2.5 | 1 | 24.8 | 22.3 | 18.8 | 2.75 | 23.7 |
25×2.5 | 1.25 | 24.8 | 22.3 | 18 | 2.5 | 23.6 |
25×2.5 | 1.5 | 24.8 | 22.3 | 18 | 2.2 | 23.5 |
25×2.5 | 2 | 24.8 | 22 | 18 | 1.8 | 23.4 |
25×2.5 | 2.5 | 24.8 | 22 | 18 | 10.6 | 23.3 |
D------Outside diameter of plain end section | ||||||
Dof----Diameter of top fins | ||||||
Dr-----Root diameter of finned section | ||||||
Di-----Inside diameter of finned section | ||||||
T------Wall thickness of plain end section | ||||||
Tp-----Fin pitch | ||||||
De----Equivalent diameter of finned tube | ||||||
L------Plain tube end length |
