ASTM A106 A53 API 5L Seamless carbon steel tubes for high temperature service
Basic Properties
Place of Origin:
Zhejiang
Brand Name:
TORICH
Certification:
ISO
Model Number:
ASTM A106 A53
Trading Properties
Minimum Order Quantity:
5 Tons
Price:
negotiable
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
1000 Tons Per Month
Product Summary
Products Description: Structural Steel Pipe Carbon Steel Seamless Tube Structural Steel Pipe , ASTM A106 A53 API 5L Seamless Carbon Steel Tubing ASTM A106 A53 API 5L Seamless carbon steel tubes for high temperature service Applications: for high temperature service Size range: O.D.:6-168mm W.T.:1...
Product Details
Highlight:
cold drawn seamless tube
,cold drawn tubes
Surface Treatment:
Oiled
Type:
Seamless
Application:
Structure Pipe
End Protector:
Plain End / Beveled End
Length:
Max12000mm
Material:
Carbon Steel
Product Description
Products Description:
Structural Steel Pipe Carbon Steel Seamless Tube
Structural Steel Pipe , ASTM A106 A53 API 5L Seamless Carbon Steel Tubing
ASTM A106 A53 API 5L Seamless carbon steel tubes for high temperature service
Applications: for high temperature service
Size range: O.D.:6-168mm W.T.:1-15mm L:max12000mm
Steel Grade and Chemical Compositions:
| Steel Grade | C | Mn | P | S | Si | Cr | Cu | Mo | Ni | V |
| max | max | max | min | max | max | max | max | max | ||
| A | 0.25 | 0.27~0.93 | 0.035 | 0.035 | 0.10 | 0.40 | 0.40 | 0.15 | 0.40 | 0.08 |
| B | 0.30 | 0.27~1.06 | 0.035 | 0.035 | 0.10 | 0.40 | 0.40 | 0.15 | 0.40 | 0.08 |
| C | 0.35 | 0.27~1.06 | 0.035 | 0.035 | 0.10 | 0.40 | 0.40 | 0.15 | 0.40 | 0.08 |
| Grade | Tensil Strength Mpa | Yield Point Mpa | Elongtation % |
| A | ≥330 | ≥205 | 20 |
| B | ≥415 | ≥240 | 20 |
| C | ≥485 | ≥275 | 20 |

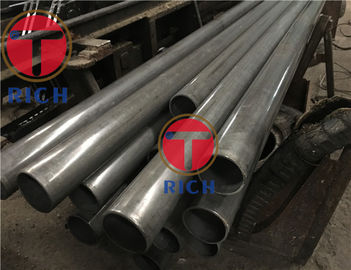

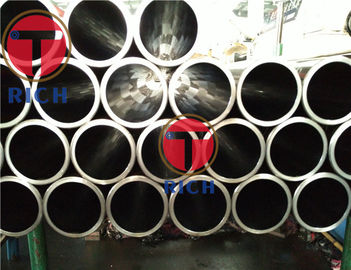

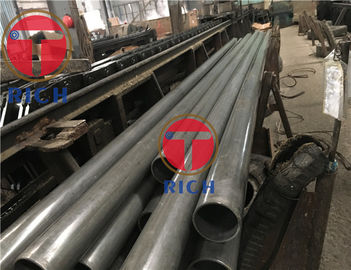

Production Steel Tube:
Eddy Current Test and Ultrasonic Test:
Packing:
