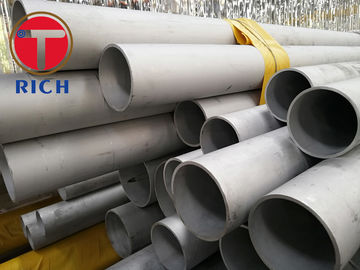

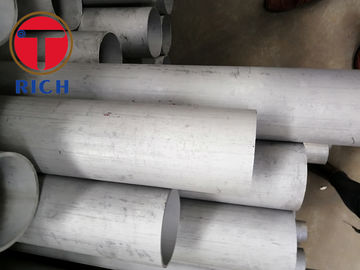

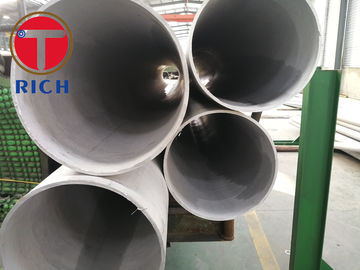

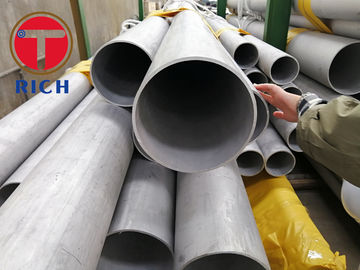

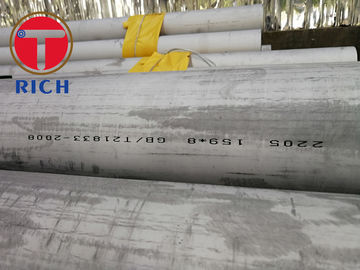

Duplex 2205 Stainless Steel Seamless Pipe S31083 Round Shape Cold Finish
Product Details
stainless steel round tube
,stainless tube steel
S31083 Duplex 2205 Super Stainless Steel Seamless Pipe
S31083 Duplex 2205 Super Stainless Steel Seamless Pipe
Application:
Pressure vessel, high pressure pipe line, heat exchanger(chemical processing industry), oil and gas pipeline
Size Range:
OD:21.3-711mm
WT: SCH5/SCH10/SCH40/SCH80/SCH160/XXS(1.65mm-30.75mm)
Length: max 12000mm
Material:
Grade: Duplex 2205
| Chemical Properties | ||||||||
| C | Si | Mn | P | S | Cr | Ni | Mo | N |
| ≤0.03 | ≤1.00 | ≤2.00 | ≤0.04 | ≤0.03 | 21.0~24.0 | 4.5~6.5 | 2.5~3.5 | 0.08~0.2 |
Manufacture:
Pipes shall be made by the seamless process and shall be either hot finished or cold finished.
Mechanical Properties:
| Mechanical Properties: | |||
| Ts (Mpa) | El (%) | Hv | 2.0t/2B |
| ≥ 450 | ≥ 620 | ≥ 18 | ≤ 320 |
Superior Surface Finish:
The traditional annealing:
Open furnace---Oxygen atmosphere---form Scale, tarnish the material, For more than 12m tubes this method is hard to clean inner surface.
A special bright annealing:
Closed furnace---Intert atmosphere use noble gases(Nitrogen and argon) Preventing Oxygen to contact with material---Surface finish is clean, bright and precision, which is an excellent starting point for further process, like electro-polishing and mechanical polishing. For more than 12m tubes, this method is much cleaner smoother on both inner and outer surface.
Packing:
Each tube in a plastic bag, then put tubes in a seaworthy woven bag ,each unit weight 400kg-500kg/bundle.
With strong wood structure box packing by containers loading and shipping.
Or as customer's requirement.
20 ft container - GP: 5.8m (Length) * 2.13m (Width) * 2.18m (Hight) ------ Max Gross Weight: 25MT/container.
40 ft container - GP: 11.8m (Length) * 2.13m (Width) * 2.18m (Hight) ------ Max Gross Weight: 27MT/container.
40 ft container - HG: 11.8m (Length) * 2.13m (Width) * 2.72m (Hight) ------ Max Gross Weight: 27MT/container.
Port Shanghai
Test:
- PMI test
- Hydraulic test
- 100%Inner cleaned by sponge
- 100%Dimension test
- 100%Surface test
-
