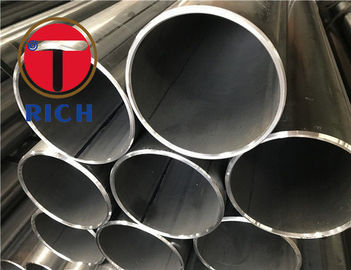

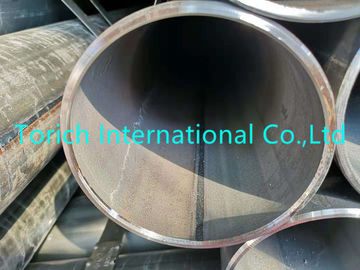

EN10305-2 E355 Cold Drawn Welded Steel Tube For Telescopic Cylinder
Product Details
welded steel pipe
,electric resistance welded steel tube
EN10305-2 E355 Cold Drawn Welded Steel Tube for Telescopic Cylinder
| Carbon Tube Information | |
| Name | EN10305-2 E355 Cold Drawn Welded Steel Tube for Telescopic Cylinder |
| Out Diameter | 30-250mm |
| Wall Thickness | 2-30mm |
| Material | A53, A106, ST52, E355, STKM11A, STK,13A, CK45, S45C |
| Delivery Condition | Cold Drawn/Cold Rolled/Honed/Stress Relieved |
| Delivery Time | within 45 days after receiving prepayment |
| Trade Term | FOB, CIF, CFR or as client's request |
| Payment Term | TT, LC, or as client's request |
Specifications:
| Table 1- TUBING OUTSIDE DIAMETER TOLERANCE | |||||||
| Nominal Tubing OD mm | Tolerance OD ±mm | Tolerance ID ±mm | |||||
| Up to 9.50 | 0.05 | 0.05 | |||||
| Over 9.50 to 15.88 inclusive | 0.06 | 0.06 | |||||
| Over 15.88 to 50.80 inclusive | 0.08 | 0.08 | |||||
| Over 50.8 to 63.50 inclusive | 0.10 | 0.10 | |||||
| Over 63.50 to 76.20 inclusive | 0.13 | 0.13 | |||||
| Over 76.20 to 100.00 inclusive | 0.15 | 0.15 | |||||
| WT tolerance shall be not more than 10% | |||||||
| Table 2- TUBING WALL THICKNESS TOLERANCE | |||||||
| Nominal Wall Thickness | Nominal OD Through 22mm ±mm | Nominal OD 22-48mm ±mm | Nominal OD 48-100mm ±mm | ||||
| 0.89 | 0.05/0.05 | 0.05/0.05 | 0.05/0.05 | ||||
| 1.00 | 0.05/0.05 | 0.05/0.08 | 0.05/0.08 | ||||
| 1.25 | 0.05/0.05 | 0.05/0.08 | 0.05/0.08 | ||||
| 1.50 | 0.05/0.05 | 0.05/0.08 | 0.05/0.08 | ||||
| 1.65 | 0.05/0.05 | 0.05/0.08 | 0.05/0.08 | ||||
| 2.00 | 0.05/0.05 | 0.05/0.08 | 0.05/0.08 | ||||
| 2.11 | 0.05/0.05 | 0.05/0.08 | 0.05/0.08 | ||||
| 2.410 | 0.05/0.05 | 0.05/0.08 | 0.08/0.08 | ||||
| 2.500 | 0.05/0.08 | 0.05/0.10 | 0.08/0.08 | ||||
| 2.770 | 0.05/0.08 | 0.05/0.10 | 0.08/0.08 | ||||
| 3.000 | 0.05/0.08 | 0.05/0.10 | 0.08/0.08 | ||||
| 3.050 | 0.05/0.08 | 0.05/0.10 | 0.08/0.08 | ||||
| 3.40 | - | 0.05/0.10 | 0.08/0.08 | ||||
| 3.75 | - | 0.05/0.10 | 0.08/0.08 | ||||
| 4.00 | - | 0.08/0.10 | 0.08/0.10 | ||||
| 4.19 | - | 0.08/0.10 | 0.08/0.10 | ||||
| 4.57 | - | 0.10/0.10 | 0.08/0.13 | ||||
| 5.00 | - | 0.10/0.13 | 0.10/0.13 | ||||
| Table 2- CHEMICAL REQUIREMENTS | |||||||
| Element | % | ||||||
| Carbon | 0.06-0.18 | ||||||
| Manganese | 0.30 to 0.60 | ||||||
| Phosphprus | 0.040 max | ||||||
| Sulfur | 0.050 max | ||||||
| Table 3- MECHANICAL PROPERTIES | |||||||
| Properties | Value | ||||||
| Yield Strength,min | 170 Mpa | ||||||
| Ultimate Strength,min | 310 Mpa | ||||||
| Elongation in 50mm, min | 35% | ||||||
| Hardness ( Rockwell B),max | 65.00 | ||||||
Applications:
For mechanical bending and flaring application.
Competitive Advantage:
Good source of raw material from Bao Steel.
Prompt delivery time according to PO and agreement.
Produce exactly according to standard and customer's requirement.
Experienced export team for customer service, quick reply within 24 hours.
Production pictures:
Shipment and Container:
What is your Guarantee?
1.SO9001:2008 and TS16949 certification, SGS, BV, TUV or other third party inspection is available.
2.High quality with competitive price.
3.Advanced technology, experienced engineer, ISO quality system for quality assurance and traceability.
Do you have agent or distributor in our country?
1.We are recruiting area agent and distributor all over the world, welcome to send us your mail or call us for detail discussion.
How is your production capability?
1.2000 tons monthly production capacity, 5000 tons monthly trading capability
2.Prompt and Timely shipment
How to get the sample?
1.You are requested to pay for sample charges and courier charges from China to your country; and the free sample is according the product like size, steel grade and quantity, please consult our sales for details
2.Sample charges will be refunded when order is placed.
What is your Payment Term?
1.T/T: 30% deposit in advance, the balance 70% paid before shipment
2.30% down payment, the balance 70% paid against L/C at sight
3.Upon negotiation
Who are your customers?
1.Stockists, Distributors,Wholesalors,Agents, Traders, End Users, etc
How long will you react on our requirement?
1.Your requirement would be treated within 24 hours on weekdays. Quotations would be sent upon technical details confirmed by customer!
Any more questions about your doubts, please feel free to send us your emails or call!
-
