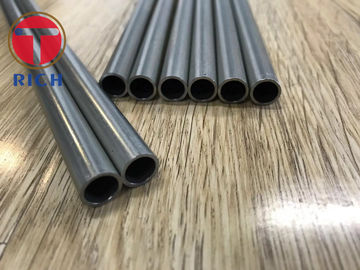

Round Galvanized Seamless Steel Tube 10 X 1 GI Pipe With TS16949 Standard
Basic Properties
Place of Origin:
China
Brand Name:
TORICH
Certification:
SO9001:2008 ，TS16949
Model Number:
Galvanized Seamless Steel Tubes
Trading Properties
Minimum Order Quantity:
1 ton
Price:
negotiable
Payment Terms:
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability:
6000ton
Product Summary
10X1 GI Pipe Round Galvanized Seamless Steel Tubes Size range: O.D.: 6-128mm W.T.:0.5-12mm L: max 12000mm Steel Grade: EN10305-1, EN10305-4, DIN2391 E235, E355, ST37.0, ST44.0, ST52.0 Galvanized Seamless Steel Tubes with high precision Manufacture: Pipes are made by cold drawn process. Zinc Plating ...
Product Details
Highlight:
seamless steel pipe
,seamless carbon steel tube
Product Name:
Galvanized Seamless Steel Tubes
Standard:
EN10305 DIN2391
Material:
E235 E355 ST37 ST44 ST52
Type:
Seamless
Terms Of Trade:
FOB Or CIF
Brand:
TORICH
Transportation:
Ocean, Air
Certificate:
ISO9001, TS16949
End Protector:
Plain
MTC:
En10204.3.2B
Product Description
10X1 GI Pipe Round Galvanized Seamless Steel Tubes
Size range: O.D.: 6-128mm W.T.:0.5-12mm L: max 12000mm
Steel Grade:
EN10305-1, EN10305-4, DIN2391
E235, E355, ST37.0, ST44.0, ST52.0
Galvanized Seamless Steel Tubes with high precision
Manufacture:
Pipes are made by cold drawn process.
Zinc Plating Thickness:
6μm~35μm
Ends:
- Plain
- Beveled
- Thread with Coupling or cap
- Chamfer
- Groove
- Screw
End Protector:
- Plastic pipe cap
- Iron protector
Test and Inspection:
- Mechanical Test
- Tension Test
- Flattening Test
- Hardness Test
- Hydrostatic Test
- Nondestructive Electric Test
