316 Welded Stainless Steel Tube 68.3mm Sanitary Stainless Steel Pipe ASTM A270
Product Details
stainless tube steel
,large diameter stainless steel tube
| Standard | ASTM A270 |
| Matrial | 210, 304, 304L, 316, 316L etc stainless steel |
| Size | O.D.: 4.0-305mm W.T.:1-50mm L: according to customer requirement |
| Applications | Sanitary tubing in the dairy and food industry, and having special surface finishes |
| Manufacture | Cold drawn and Cold rolled |
| Surface Condition | Polishing, Inside And Outside |
| Test and Inspection | Tension Test, Flaring Test, Flange Test, Reverse Test, Hardness Test, Hydrostatic or Nondestructive Electric Test |
| Grade | TP304 | TP304L | --- | TP316 | TP316L | --- | --- | --- |
| UNS | S30400 | S30403 | S31254 | S31600 | S31603 | N08926 | N08367 | S31803 |
| C, max | 0.08 | 0.035 | 0.020 | 0.08 | 0.020 | 0.020 | 0.030 | 0.030 |
| Mn, max | 2.00 | 2.00 | 1.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 |
| P, max | 0.045 | 0.045 | 0.030 | 0.045 | 0.045 | 0.030 | 0.040 | 0.030 |
| S, max | 0.030 | 0.030 | 0.010 | 0.030 | 0.030 | 0.010 | 0.030 | 0.020 |
| Si, max | 1.00 | 1.00 | 0.80 | 1.00 | 1.00 | 0.50 | 1.00 | 1.00 |
| Ni | 8.0-11.0 | 8.0-11.0 | 17.5-18.5 | 10.0-14.0 | 10.0-15.0 | 24.0-26.0 | 23.5-25.5 | 4.5-6.5 |
| Cr | 18.0-20.0 | 18.0-20.0 | 19.5-20.5 | 16.0-18.0 | 16.0-18.0 | 19.0-21.0 | 20.0-22.0 | 22.0-23.0 |
| Mo | --- | --- | 6.0-6.5 | 2.0-3.0 | 2.00-3.00 | 6.0-7.0 | 6.0-7.0 | 3.0-3.5 |
| Ni | --- | --- | 0.18-0.22 | --- | | 0.15-0.25 | 0.18-0.25 | 0.14-0.20 |
| Copper | --- | --- | 0.50-1.00 | --- | | 0.50-1.5 | 0.75max | --- |

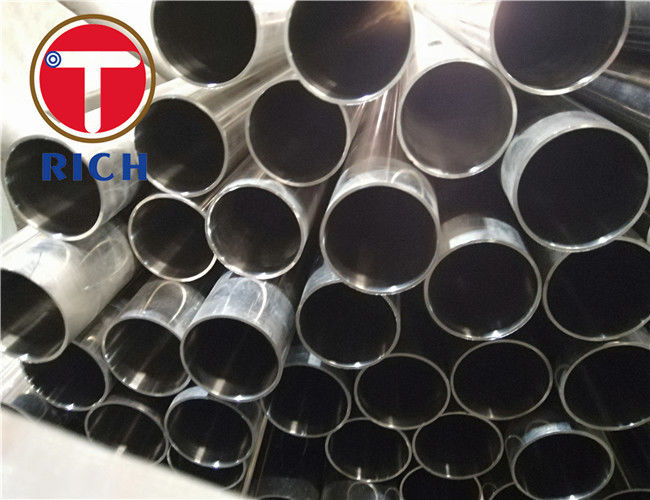

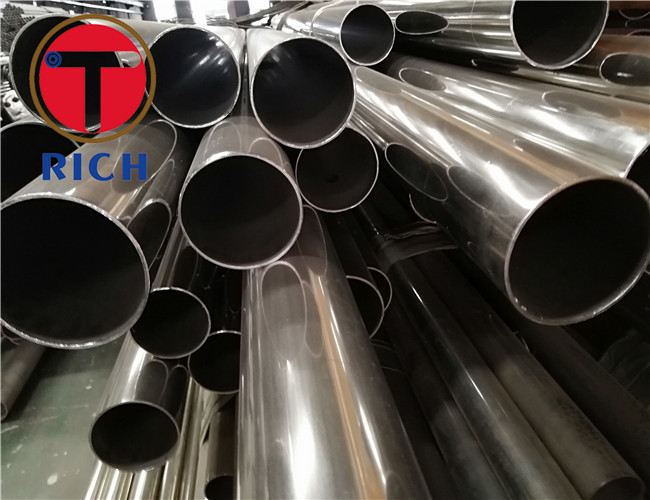

Product Show
QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking
100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
