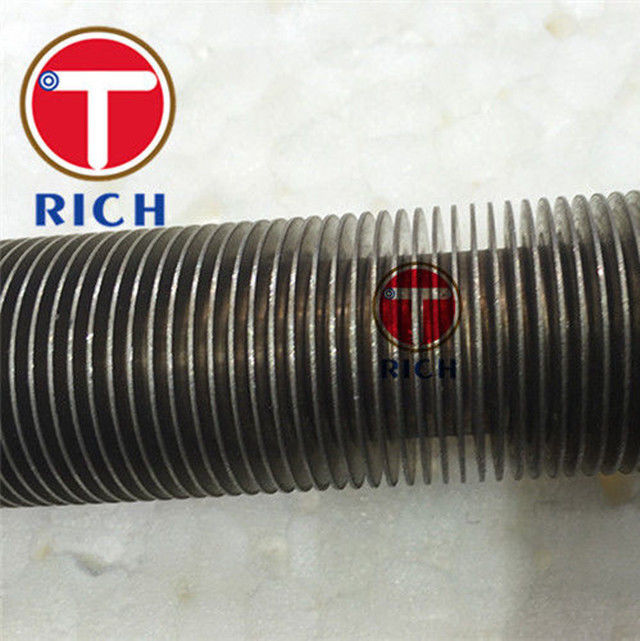

TORICH Fin Embedded Stainless Steel Fin Tube ASTM A213 304 316 1100
Product Details
stainless tube steel
,large diameter stainless steel tube
| Standard | ASTM A213, ASTM A178, ASTM A179, ASTM A192 etc |
| Fin Material | Aluminum, Copper Alloy, Stainless Steel, Carbon Steel |
| Finned | Extruded fin, Spiral fin, Embedded G fin, Low fin, H fin, L fin etc |
| Base Tube | Copper, Aluminum, Steel, Monel, etc |
| Application | Air Cooler, Charge Air Chiller, Condenser, Evaporator, Fluid Cooler, Gas Cooler, Oil Cooler, Radiator, Refrigeration, Steam to Air Heat Exchange, super heater etc |
Size Range: Steel Tube Characteristic:
Bare tube OD: 8-51mm High Anti-corrosion
Fin pitch: 1.6-10mm Anti-wear
Fin height: less than 17mm Lower Contact Resistance
Fin thickness: 0.2-0.4mm Higher Stability
Tube length: 2-20m Ability to Prevent Dust
| Steel Grade | C | Si | Mn | P | S | Ni | Cr | Mo | etc |
| SUS 304TB | 0.08max | 1.00max | 2.00max | 0.040max | 0.030max | 8.00-11.00 | 18.00-20.00 | - | - |
| SUS 304HTB | 0.04-0.10 | 0.75max | 2.00max | 0.040max | 0.030max | 8.00-11.00 | 18.00-20.00 | - | - |
| SUS 304LTB | 0.03max | 1.00max | 2.00max | 0.040max | 0.030max | 9.00-13.00 | 18.00-20.00 | - | - |
| SUS 310TB | 0.15max | 1.50max | 2.00max | 0.040max | 0.030max | 19.00-22.00 | 24.00-26.00 | - | - |
| SUS 310STB | 0.08max | 1.50max | 2.00max | 0.040max | 0.030max | 19.00-22.00 | 24.00-26.00 | - | - |
| SUS 316TB | 0.08max | 1.00max | 2.00max | 0.040max | 0.030max | 10.00-14.00 | 16.00-18.00 | 2.00-3.00 | - |
| SUS 316HTB | 0.04-0.10 | 0.75max | 2.00max | 0.040max | 0.030max | 11.00-14.00 | 16.00-18.00 | 2.00-3.00 | - |
| SUS 316LTB | 0.03max | 1.00max | 2.00max | 0.040max | 0.030max | 12.00-16.00 | 16.00-18.00 | 2.00-3.00 | - |
| SUS 316TiTB | 0.08max | 1.00max | 2.00max | 0.040max | 0.030max | 10.00-14.00 | 16.00-18.00 | 2.00-3.00 | Ti 5xC%max |
| SUS 317TB | 0.08max | 1.00max | 2.00max | 0.040max | 0.030max | 11.00-15.00 | 18.00-20.00 | 3.00-4.00 | |
| SUS 317LTB | 0.03max | 1.00max | 2.00max | 0.040max | 0.030max | 11.00-15.00 | 18.00-20.00 | 3.00-4.00 | |
| SUS 347TB | 0.08max | 1.00max | 2.00max | 0.040max | 0.030max | 9.00-13.00 | 17.00-19.00 | - | Nb 10xC%max |
| SUS 347HTB | 0.04-0.10 | 1.00max | 2.00max | 0.040max | 0.030max | 9.00-13.00 | 17.00-20.00 | - | Nb 8xC%-1.00 |
Product Show
QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking
100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
