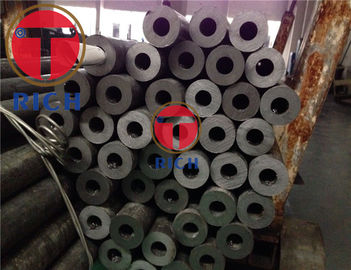

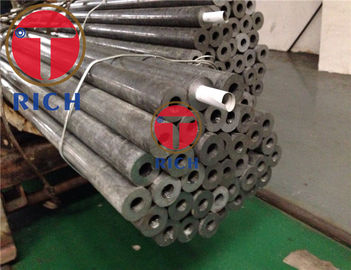

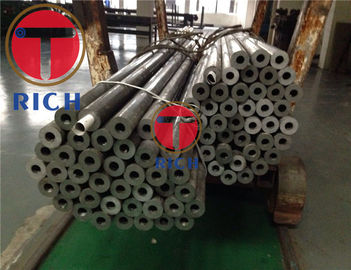

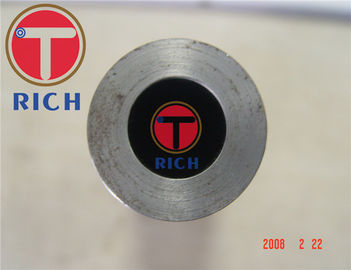

Hot Finished Heavy Wall Steel Tubing DIN EN10210-1 Construction And Decoration
Product Details
thick wall steel pipe
,thick wall steel tube
DIN EN 10210-1 Hot finished Heavy Wall Steel Tubing of non-alloy and fine grain steels
DIN EN 10210-1
Hot finished structural hollow sections of non-alloy and fine grain steels
Part 1: Technical delivery conditions
Part 2: Tolerances, dimensions and sectional properties
Cold forming:
Process is done at ambient temperature
Structrual hollow section manufacturing process:
Structural hollow sections are manufactured by seamless or by welding.
Welded sections manufactured by contiuous process.
Electric welded hollow sections are supplied without trimming the internal weld bead.
Delivery conditon:
Qualities JR, J0, J2 and K2 - Hot finished
Qualities N and NL - normalized. (normalized rolled)
- for accelerated cooling +DC
- for quenching and tempering +QT
Surface conditon:
The hollow sections have a smooth surface corresponding to the manufacturing method used; bumps, cavities or shallow longitudinal grooves resulting from the manufacturing process are permissible, provided the thickness is within tolerance.
End: Square cut
TABLE 1 Permissible deviations of the product analysis from the specified limits of the cast analysis specified
| Element | Permissible maximum content in the cast analysis % by mass | Permissible deviation of the product analysis from specified limits for the cast analysis % by mass |
| C a | ≤0.20 | ﹢0.02 |
| ＞0.20 | ﹢0.03 | |
| Si | ≤0.60 | ﹢0.05 |
| Mn | Non-alloy ≤1.60 | ﹢0.10 |
| Fine grain ≤1.70 | ﹣0.05 ﹢0.10 | |
| P | Non-alloy ≤0.040 | ﹢0.010 |
| Fine grain ≤0.035 | ﹢0.005 | |
| S | Non-alloy ≤0.040 | ﹢0.010 |
| Fine grain ≤0.030 | ﹢0.005 | |
| Nb | ≤0.060 | ﹢0.010 |
| V | ≤0.20 | ﹢0.02 |
| Ti | ≤0.03 | ﹢0.01 |
| Cr | ≤0.30 | ﹢0.05 |
| Ni | ≤0.80 | ﹢0.05 |
| Mo | ≤0.10 | ﹢0.03 |
| Cu | ≤0.35 | ﹢0.04 |
| 0.35＜Cu≤0.70 | ﹢0.07 | |
| N | ≤0.025 | ﹢0.002 |
| AItotal | ≥0.020 | ﹣0.005 |
| a For S235JRH in thicknesses ≤16mm, the permissible deviation=0.04%C,and for thicknesses＞16mm and ≤40mm the permissible deviation=0.05%C | ||
How to get the sample?
1.You are requested to pay for sample charges and courier charges from China to your country; and the free sample is according the product like size, steel grade and quantity, please consult our sales for details
2.Sample charges will be refunded when order is placed.
What is your Payment Term?
1.T/T: 30% deposit in advance, the balance 70% paid before shipment
2.30% down payment, the balance 70% paid against L/C at sight
3.Upon negotiation
Who are your customers?
1.Stockists, Distributors,Wholesalors,Agents, Traders, End Users, etc
How long will you react on our requirement?
1.Your requirement would be treated within 24 hours on weekdays. Quotations would be sent upon technical details confirmed by customer
-
