GB/T8162 Q235 Structural Seamless Steel Tubes Thick Wall Tube For Heat Exchanger
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
| Minimum Order Quantity : | 3 Tons | Price : | USD 850-900 per Ton |
|---|---|---|---|
| Packaging Details : | Bundles, seaworthy packing or as per customer's requirement | Delivery Time : | 4-8 weeks |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 500 Tons per Month |
| Place of Origin: | Zhejiang China | Brand Name: | TORICH |
|---|---|---|---|
| Certification: | ISO 9001 | Model Number: | ASTM A179 |
|
Detail Information |
|||
| Thickness: | 1 - 80 Mm | Outer Diameter(Round): | 6 - 760 Mm |
|---|---|---|---|
| Technique: | Cold Drawn | Grade Group: | A53-A369 |
| Length: | 6m, 12m Or Customized | Surface: | Oiled |
| High Light: | carbon steel tube,high carbon steel tube |
||
Product Description

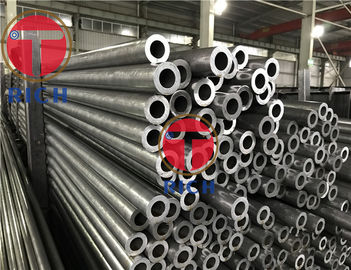

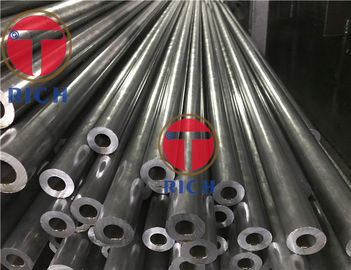

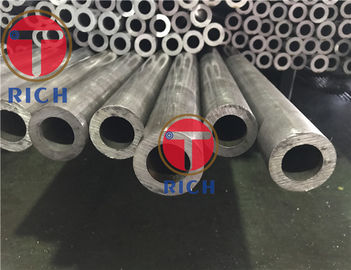

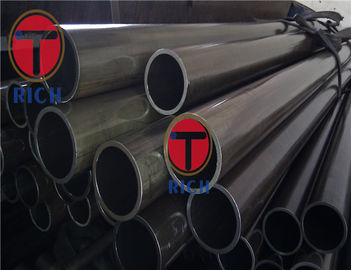

Black Coated Cold Drawn Seamless Carbon Steel Pipe ASTM A179 SA179 for Heat Exchanger
Applications:
for Boilers,Superheaters,
Heat-Exchangers,
High-pressure Boilers,
Steam Boilers
Cold Condensers and High-Pressure Services,
High-Temperature Services for Boiler Constructions
Round steel tubes heat exchanger tubes ASTM A179 ASME SA179
Material: Low Carbon Steel
Production: Seamless Cold Drawn
Size range: O.D.:3.2-76.2mm W.T.:1-15mm L: according to customer requirement.
Steel Grade and Chemical Compositions:
| C | 0.06-0.18 |
| Mn | 0.27-0.63 |
| P | ≤0.035 |
| S | ≤0.035 |
Mechanical Properties
Tensile Streghth: min ksi[Mpa] 47[325]
Yield Point: min ksi[Mpa] 26[180]
Elongation: ≥35%
Hardness: ≤72HRB
Heat Treatment:
Tubes are heat treated after the final cold draw pass at a temperature of 1200℉(650℃) or higher
Surface Finish:
Finish Tubes are free of scale.
We have normal heat treatment annealing with black surface.
Have bright annealing with grey and bright surface.
Mechanical Testing:
Flattening Test
Flaring Test
Flange Test
Hardness Test
ASTM A179 steel tubes Chemical Composition
| Material | C | Mn | P | S |
| A179 | 0.06-0.18 | 0.27-0.63 | 0.035max | 0.035max |
ASTM A179 steel tubes Mechanical Property
| Material | Tensile Strength,Mpa | Yield Strength,Mpa | Elongation/% |
| A179 | Min 415 | Min 205 | Max 20 |
1~ Incoming Raw Material Inspection
2~ Raw Material Segregation to avoid steel grade mix-up
3~ Heating and Hammering End for Cold Drawing
4~ Cold Drawing and Cold Rolling, on line inspection
5~ Heat Treatment, +A, +SRA, +LC, +N, Q+T
6~ Straightening-Cutting to specified length-Finished Measuring Inspection
7~ Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8~ Packing and Stocking.
A: A professional steel pipes materials inventor, manufacturer and solution provider
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample of Round steel tubes heat exchanger tubes ASTM A179 ASME SA179 for free charge but need pay the cost of freight.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
