High Precision Hydraulic Steel Pipe Astm 2mm Thickness
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
| Minimum Order Quantity : | 3 Tons | Price : | USD 750 per month |
|---|---|---|---|
| Packaging Details : | Usually in bundles with steel strips/band | Delivery Time : | 3-6 weeks |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 500 Tons per month |
| Place of Origin: | Zhejiang China | Brand Name: | TORICH |
|---|---|---|---|
| Certification: | ISO 9001 | Model Number: | AISI, ASTM, BS, DIN |
|
Detail Information |
|||
| Standard: | AISI, ASTM, BS, DIN | Steel Grade: | SS401 |
|---|---|---|---|
| Technique: | Hot Rolled, Hot Rolled | Length: | 6m Or As Customized |
| Thickness: | 2.5-20mm | Surface Treatment: | Non/Galvanized |
| High Light: | steel mechanical tubing,low carbon steel pipe |
||
Product Description

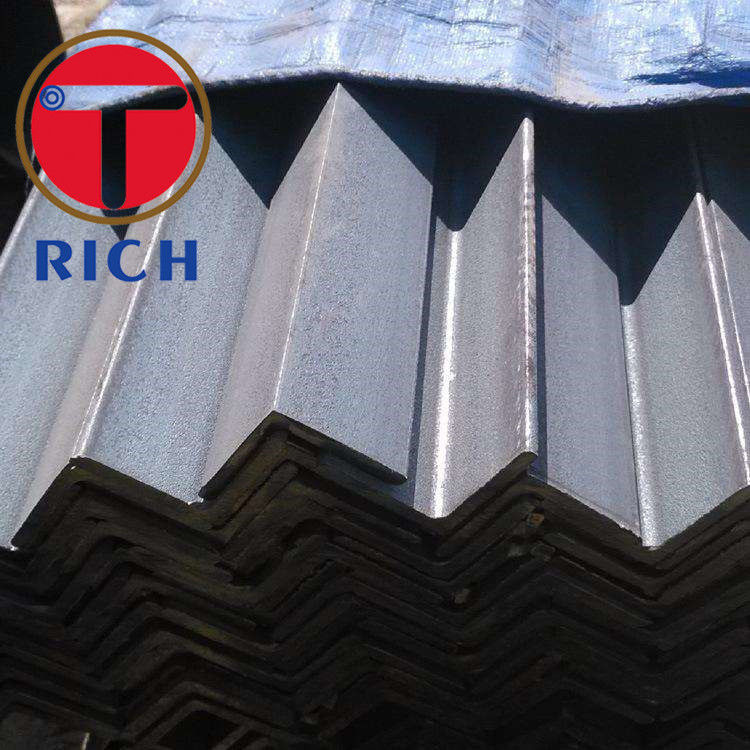

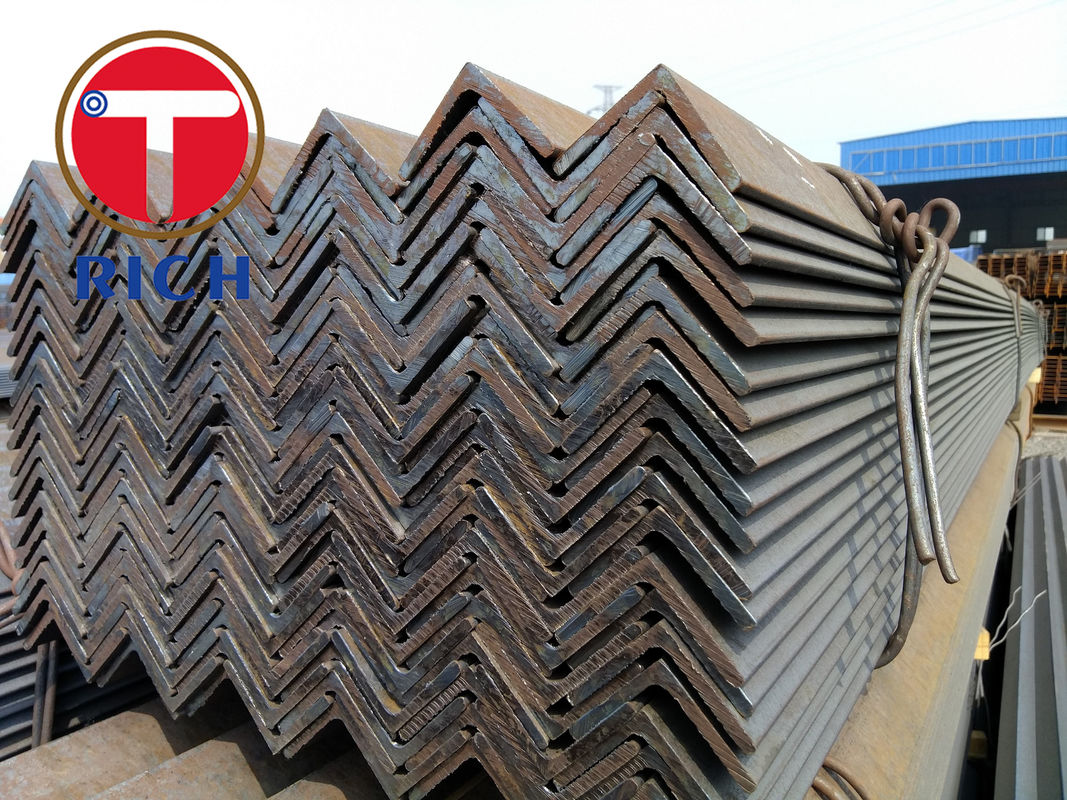

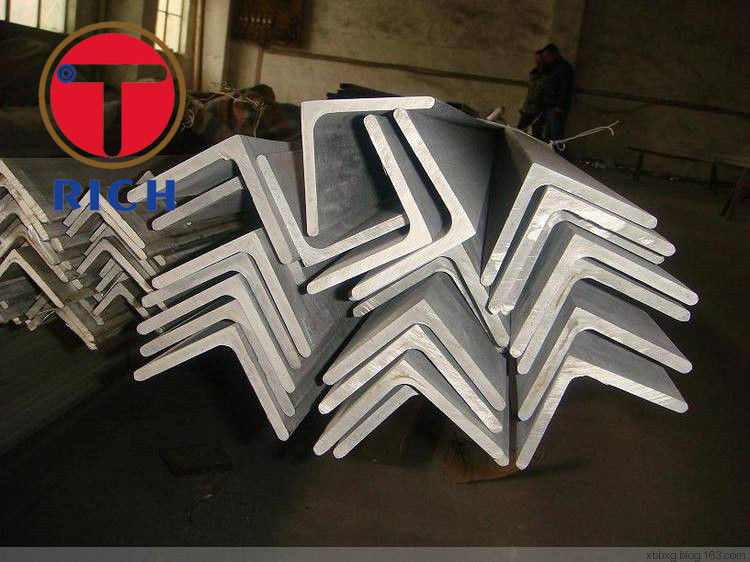

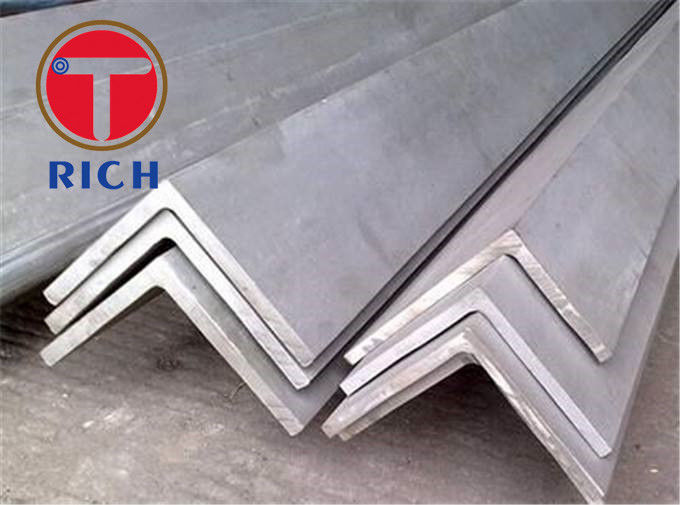

Carbon Steel Angle Bar Hot Rolled Angle Steel Bar Structural Steel
|
Size A=B*T |
Theoretical Weight | Size | Theoretical Weight | Size | Theoretical Weight |
| (mm) | (kg/m) | (mm) | (kg/m) | (mm) | (kg/m) |
| 25X3 | 1.124 | 70X6 | 6.406 | 100X16 | 23.257 |
| 25X4 | 1.459 | 70X7 | 7.398 | 110X8 | 13.532 |
| 30X3 | 1.373 | 70X8 | 8.373 | 110X10 | 16.69 |
| 30X4 | 1.786 | 75X5 | 5.818 | 110X12 | 19.782 |
| 40X3 | 1.852 | 75X6 | 6.905 | 110X14 | 22.809 |
| 40X4 | 2.422 | 75X7 | 7.976 | 125X8 | 15.504 |
| 40X5 | 2.967 | 75X8 | 9.03 | 125X10 | 19.133 |
| 50X3 | 2.332 | 75X10 | 11.089 | 125X12 | 22.696 |
| 50X4 | 3.059 | 80X6 | 7.736 | 125X14 | 26.193 |
| 50X5 | 3.77 | 80X8 | 9.658 | 140X10 | 21.488 |
| 50X6 | 4.465 | 80X10 | 11.874 | 140X12 | 25.522 |
| 60X5 | 4.57 | 90X8 | 10.946 | 140X14 | 29.49 |
| 60X6 | 5.42 | 90X10 | 13.476 | 160X12 | 29.391 |
| 63X4 | 3.907 | 90X12 | 15.94 | 160X14 | 33.987 |
| 63X5 | 4.822 | 100X8 | 12.276 | 160X16 | 38.518 |
| 63X6 | 5.721 | 100X10 | 15.12 | 160X18 | 48.63 |
| 63X8 | 7.469 | 100X12 | 17.898 | 180X18 | 48.634 |
| 70X5 | 5.397 | 100X14 | 20.611 | 200X24 |
71.168 |
Unequal Angle Steel Specification
|
Size No. (cm) |
A Width (mm) |
B Width (mm) |
Thickness (mm) |
Weight (kg/m) |
Size No. | A Width | B Width | Thickness |
Weight (kg/m) |
| 2.5/1.6 | 25 | 16 | 3 | 0.912 | 10/6.3 | 100 | 63 | 6 | 7.55 |
| 25 | 16 | 4 | 1.176 | 100 | 63 | 7 | 8.722 | ||
| 3.2/2 | 32 | 20 | 3 | 1.171 | 100 | 63 | 8 | 9.878 | |
| 32 | 20 | 4 | 1.522 | 100 | 63 | 10 | 12.142 | ||
| 4/2.5 | 40 | 25 | 3 | 1.484 | 10/8 | 100 | 80 | 6 | 8.35 |
| 40 | 25 | 4 | 1.936 | 100 | 80 | 7 | 9.656 | ||
| 4.5/2.8 | 45 | 28 | 3 | 1.687 | 100 | 80 | 8 | 10.946 | |
| 45 | 28 | 4 | 2.203 | 100 | 80 | 10 | 13.476 | ||
| 5/3.2 | 50 | 32 | 3 | 1.908 | 11/7 | 110 | 70 | 6 | 8.35 |
| 50 | 32 | 4 | 2.494 | 110 | 70 | 7 | 9.656 | ||
| 5.6/3.6 | 56 | 36 | 3 | 2.153 | 110 | 70 | 8 | 10.946 | |
| 56 | 36 | 4 | 2.818 | 100 | 70 | 10 | 13.476 | ||
| 56 | 36 | 5 | 3.466 | 12.5/8 | 125 | 80 | 7 | 11.066 | |
| 6.3/4 | 63 | 40 | 4 | 3.185 | 125 | 80 | 8 | 12.511 | |
| 63 | 40 | 5 | 3.92 | 125 | 80 | 10 | 15.474 | ||
| 63 | 40 | 6 | 4.638 | 125 | 80 | 12 | 18.33 | ||
| 63 | 40 | 7 | 5.339 | 14/9 | 140 | 90 | 8 | 14.16 | |
| 7/4.5 | 70 | 45 | 4 | 3.57 | 140 | 90 | 10 | 17.475 | |
| 70 | 45 | 5 | 4.403 | 140 | 90 | 12 | 20.724 | ||
| 70 | 45 | 6 | 5.218 | 140 | 90 | 14 | 23.908 | ||
| 70 | 45 | 7 | 6.011 | 16/10 | 160 | 100 | 10 | 19.872 | |
| 7.5/5 | 75 | 50 | 5 | 4.808 | 160 | 100 | 12 | 23.592 | |
| 75 | 50 | 6 | 5.699 | 160 | 100 | 14 | 27.247 | ||
| 75 | 50 | 8 | 7.431 | 160 | 100 | 16 | 30.835 | ||
| 75 | 50 | 10 | 9.098 | 18/11 | 180 | 110 | 10 | 22.273 | |
| 8/5 | 80 | 50 | 5 | 5.005 | 180 | 110 | 12 | 26.464 | |
| 80 | 50 | 6 | 5.935 | 180 | 110 | 14 | 30.589 | ||
| 80 | 50 | 7 | 6.848 | 180 | 110 | 16 | 34.649 | ||
| 80 | 50 | 8 | 7.745 | 20/12.5 | 200 | 125 | 12 | 29.761 | |
| 9/5.6 | 90 | 56 | 5 | 5.661 | 200 | 125 | 14 | 34.436 | |
| 90 | 56 | 6 | 6.717 | 200 | 125 | 16 | 39.045 | ||
| 90 | 56 | 7 | 7.756 | 200 | 125 | 18 | 43.588 | ||
| 90 | 56 | 8 | 8.779 |
Galvanized Steel Angle can be divided into hot dipped galvanized steel Angle and cold galvanized steel Angle.
Hot dip galvanized steel Angle, also can be called hot dipped galvanized Angle steel or zinc Angle.
Cold galvanized coatings mainly ensure good contact between zinc powder and steel angle through electrochemical principle.
The zinc layer thickness of Hot dip galvanized steel Angle can reach 30-50 um, high reliability,
while cold galvanized steel Angle just can reach 10 um,it is metallurgical combination between galvanized layer and steel angle,
become a part of the steel surface, therefore, the durability of zinc layer in hot dipped galvanized Angle steel is more reliable.
What is your Guarantee?
1.SO9001:2008 and TS16949 certification, SGS, BV, TUV or other third party inspection is available.
2.High quality with competitive price.
3.Advanced technology, experienced engineer, ISO quality system for quality assurance and traceability.
Do you have agent or distributor in our country?
1.We are recruiting area agent and distributor all over the world, welcome to send us your mail or call us for detail discussion.
How is your production capability?
1.2000 tons monthly production capacity, 5000 tons monthly trading capability
2.Prompt and Timely shipment
How to get the sample?
1.You are requested to pay for sample charges and courier charges from China to your country; and the free sample is according the product like size, steel grade and quantity, please consult our sales for details
2.Sample charges will be refunded when order is placed.
What is your Payment Term?
1.T/T: 30% deposit in advance, the balance 70% paid before shipment
2.30% down payment, the balance 70% paid against L/C at sight
3.Upon negotiation
Who are your customers?
1.Stockists, Distributors,Wholesalors,Agents, Traders, End Users, etc
