| Brand Name: | TORICH |
| Model Number: | ASME SA213, A312, A269, A688, A789, EN 10216-5 etc. |
| MOQ: | 1 ton |
| Price: | negotiable |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 25000 tons per year |
Product information
1. Commodity:316L Stainless Seamless Pipe
2. Diameter:6mm~860mm
3. Wall Thickness: 0.5mm~80mm
4. Length: Any length between 1~15 meters, will be customized
5. Standard: ASME SA213, A312, A269, A688, A789, EN 10216-5 etc.
6. Surface: Pickled surface, or bright annealed surface, will be customized
7. Materials: 304, 304L, 316, 317, 317L, 321, 321H, 310, 2205, s31803, s32750, s32760
8. Delivery time:15~25 days upon receipt PO, depends on quantity
9. Package:Various packages depends on wall thickness & Length
a) Hexagonal bundles
b) Iron boxes
c) Good quality plywood boxes
d) Good quality wooden boxes
e) Customized package
10. Application: High-pressure steam boiler, Heat exchanger, liquid-transportation, Condensator, electric power, auto parts and chemical industry. Power plant.
| Square Steel Tube | Rectangular Steel Tube | Round Steel Tube |
| (mm) | (mm) | (mm) |
| 10×10×0.6~3.0 | 10×20×0.6~3.0 | 6x0.6~1.0 |
| 15×15×0.6~3.0 | 20×30×0.6~3.0 | 12x0.6~1.5 |
| 20×20×0.6~3.0 | 20×40×0.6~3.0 | 13x0.6~1.5 |
| 25×25×0.6~3.0 | 25×50×0.6~3.5 | 16x0.6~2.0 |
| 30×30×0.6~3.5 | 30×50×0.6~3.5 | 19x0.6~3.0 |
| 40×40×0.6~3.5 | 40×60×0.6~3.5 | 20x0.6~3.0 |
| 50×50×0.6~3.5 | 40×80×0.6~3.5 | 22x0.6~3.0 |
| 60×60×0.6~3.5 | 60×80×1.0~6.0 | 25x0.6~3.0 |
| 70×70×0.6~3.5 | 50×100×1.0~6.0 | 27x0.6~3.0 |
| 75×75×0.6~3.5 | 60×120×1.0~6.0 | 32x0.6~3.0 |
| 80×80×1.0~6.0 | 80×120×2.0~8.0 | 40x0.6~3.5 |
| 100×100×2.0~8.0 | 80×160×2.0~8.0 | 38x0.6~3.0 |
| 120×120×2.0~8.0 | 100×150×2.0~8.0 | 48x0.6~3.5 |
| 150×150×2.0~8.0 | 100×200×2.0~8.0 | 60x0.6~3.5 |
| 200×200×4.0~16.0 | 150×250×4.0~12.0 | 76x0.6~3.5 |
| 250×250×4.0~16.0 | 200×300×4.0~16.0 | 89x1.0~6.0 |
| 300×300×4.0~16.0 | 300×400×4.0~16.0 | 104x1.0~6.0 |
| 400×400×4.0~16.0 | 300×500×4.0~16.0 | 114x1.0~6.0 |

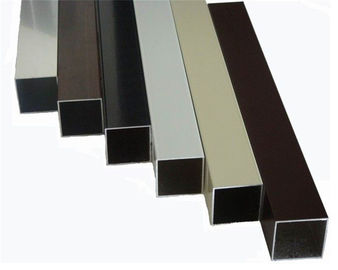

Product pictures
