GB/T8162 Q235 Structural Seamless Steel Tubes Thick Wall Tube For Heat Exchanger
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
Minimum Order Quantity : | 5Tons | Price : | USD900-2000/Ton |
---|---|---|---|
Packaging Details : | Tubes are packed in wooden boxes or hexagonal bundles in seaworthy packing. | Delivery Time : | 30-45 work days |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 2000Tons per Year |
Place of Origin: | ZHEJIANG, CHINA | Brand Name: | TORICH |
---|---|---|---|
Certification: | ISO9001, ISO14001, TS16949 | Model Number: | ASTM A214 |
Detail Information |
|||
Keyword: | Heat-Exchanger Tubes | Standard: | ASTM A214 |
---|---|---|---|
Material: | Q215, Q235, Q195 | OD: | 6 - 76.2 Mm |
WT: | 1 - 20 Mm | Length: | 1000-1200 Mm |
Surface: | Free Of Scale | Usage: | Heat-Exchanger And Condenser |
High Light: | high carbon steel tube,heat exchanger tubes |
Product Description
Standard
|
ASTM A214, A450
|
Matrial
|
Q195, Q215, Q235 etc Carbon Steel
|
Size
|
OD: 6.76.2mm WT: 1-20mm Length: 1-12m
|
Manufacture
|
Tubes are made by electric-resistance welding.
|
Surface Condition
|
The finished tubes are free of scale., slight amount of oxidation is not considered as scale
|
Hardness Requirements
|
The tubes shall have a hardness number not exceeding 72HRB.
|
Thermal Treatment:
|
After welding, all tubes are heat treated at a temperature of 1200℉(650℃) or higher and following by cooling in air or in a cooling chamber of a controlled atmosphere furnace.
Cold drawn tubes shall be heat treated after the final cold-draw pass at a temperature of 1200℉(650℃) or higher |
Test and Inspection
|
- Flattening Test
- Flange Test - Reverse Test - Hydrostatic or Nondestructive Electric Test |
Tolerance for OD and WT (SA-450/SA-450M)
OD in (mm)
|
+
|
-
|
WT in (mm)
|
+
|
-
|
<1" (25.4)
|
0.10
|
0.10
|
≤1.1/2" (38.1)
|
20%
|
0
|
1"~1.1" (25.4-38.1)
|
0.15
|
0.15
|
≤1.1/2" (38.2)
|
20%
|
0
|
>1.1/2"~<2" (38.1-50.8)
|
0.20
|
0.20
|
|
|
|
2"~<2.1/2" (50.8-63.5)
|
0.25
|
0.25
|
|
|
|
2.1/2"~<3" (63.5-76.2)
|
0.30
|
0.30
|
|
|
|
3"~<4" (76.2-101.6)
|
0.38
|
0.38
|
|
|
|
4"~<7.1/2" (101.6-190.5)
|
0.38
|
0.64
|
|
|
|
>7.1/2"~9" (190.5-228.6)
|
0.38
|
1.14
|
|
|
|
C
|
0.18
|
Mn
|
0.27 to 0.63
|
P
|
≤0.035
|
S
|
≤0.035
|

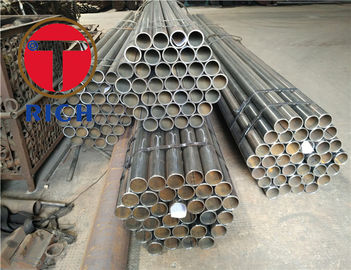

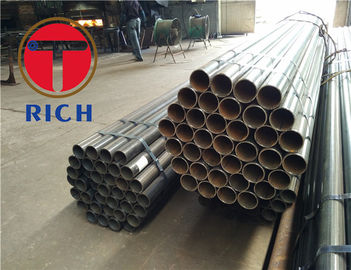

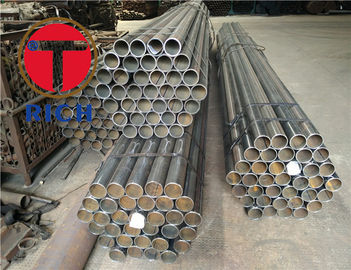

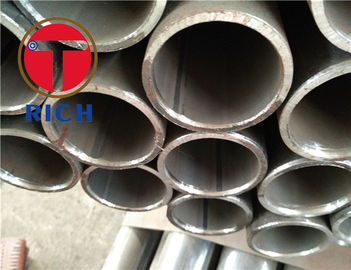

Production Show
QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking
100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
