TORICH GB/T12770 Welded Stainless Steel Tubes for Machine Structures
Product Details
stainless steel round tube
,stainless tube steel
| Standard | GB/T12770 |
| Material | 0Cr18Ni9, 00Cr19Ni10, 0Cr17Ni12Mo2, 00Cr17Ni4Mo2 etc |
| Size | OD: 8-630mm WT: 0.3-16mm Length: 4-8m |
| Delivery Condition | W, T, WC, SP |
| Test | Bend Test, Flaring Test, Flange Test, Intergranular Corrosion Test, Nondestructive Test |
| Application | Mechanical Parts and Mechine Structure |
Chemical Requirements
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo | Other |
| 1Cr18Ni9 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 8.00-10.00 | 17.00-19.00 | | |
| 0Cr18Ni9 | ≤0.07 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 8.00-11.00 | 17.00-19.00 | | |
| 00Cr19Ni10 | | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 8.00-12.00 | 18.00-20.00 | | |
| 0Cr25Ni20 | | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 19.00-22.00 | 24.00-26.00 | | |
| 0Cr17Ni12Mo2 | | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 10.00-14.00 | 16.00-18.00 | 2.00-3.00 | |
| 00Cr17Ni14Mo2 | | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 12.00-15.00 | 16.00-18.00 | 2.00-3.00 | |
| 0Cr18Ni10Ti | | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 9.00-12.00 | 17.00-19.00 | | Ti≥5XC% |
| Grade | RP 0.2/MPa | Tensile Strength/MPa | Elongation % | |
| | Heat Treatment | Non Heat Treatment | ||
| min | ||||
| 1Cr18Ni9 | 210 | 520 | 35 | 25 |
| 0Cr18Ni9 | 210 | 520 | ||
| 00Cr19Ni10 | 180 | 180 | ||
| 0Cr25Ni20 | 210 | 520 | ||
| 0Cr17Ni12Mo2 | 210 | 520 | ||
| 00Cr17Ni14Mo2 | 180 | 480 | ||
| 0Cr18Ni10Ti | 210 | 520 | ||

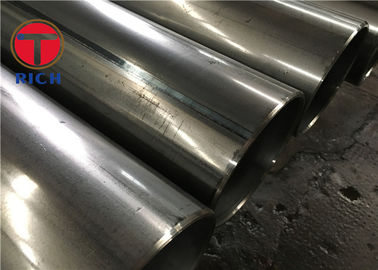

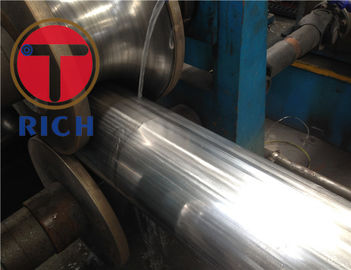

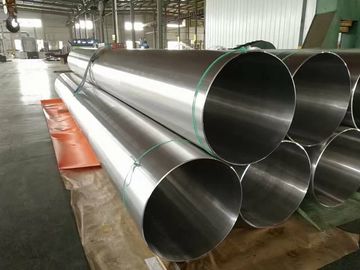

Product Show
QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking
100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
