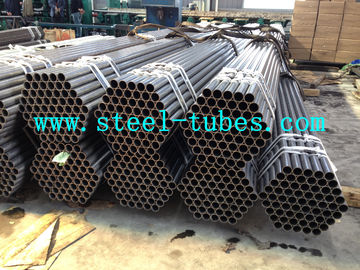

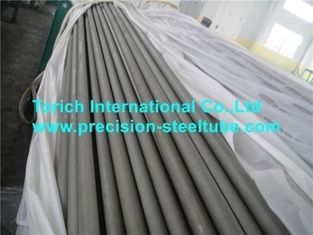

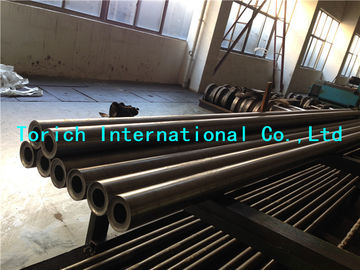

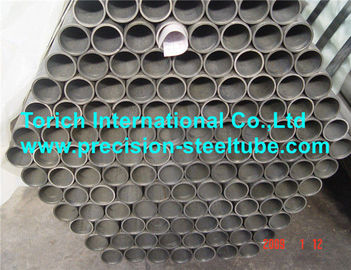

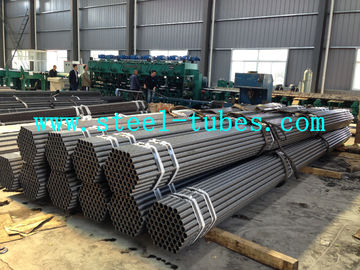

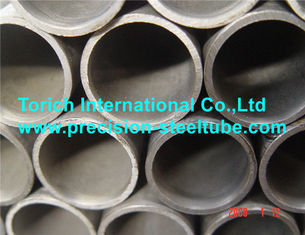

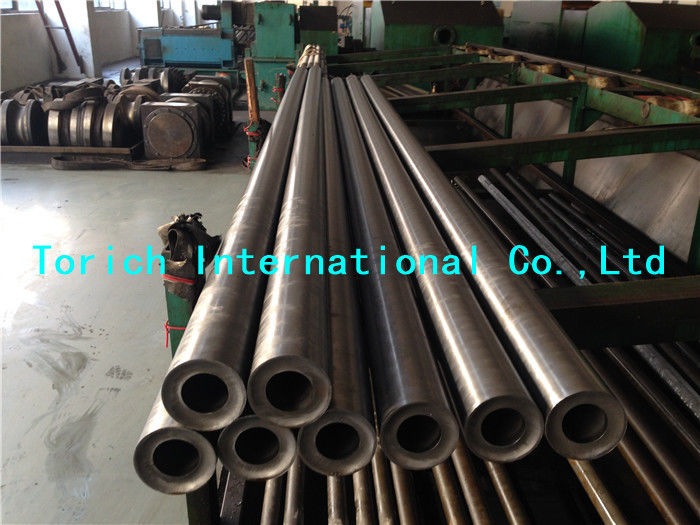

Boiler / Heat Exchanger Seamless Steel Tube Round Shape With Od 3 - 420mm
Product Details
seamless steel pipe
,seamless carbon steel tube
Details of Seamless Alloy Steel Pipe :
| Material: | Alloy Steel | Steel Grade: | STBA 12 STBA 13 STBA 20 STBA 22 STBA23 STBA 24 STBA 25 STBA 26 Etc |
|---|---|---|---|
| Produce Method: | Electric Resistant Welding And Seamless | Heat Treatment: | Annealing, Isothermal Annealing, Full Annealing Etc |
| Standard: | JIS G3462 | Application: | For Boiler And Heat Exchanger |
| Relevant Standard: | KS D 3572 ASTM A 161 A209 A213 A199 DIN 17175 BS 3059 |
JIS G 3462 STBA 12 STBA 13 STBA 20 STBA 22 STBA23 STBA 24 STBA 25 STBA 26 Alloy Steel Boiler and Heat Exchanger
JIS G 3462 Alloy steel boiler and heat exchanger
Standard for Seamless Alloy Steel Pipe :JIS G 3462
Wall thickness 0.5-50mm Diameter 5-420mm Length Upon request
Application of Seamless Alloy Steel Pipe: for boiler and heat exchanger
Seamless Alloy Steel Pipe Produce method:
STBA 12,STBA13,STBA20,,STBA 22 :electric resistant welding
STBA 25 STBA 26 :Seamless
Heat treatment of Seamless Alloy Steel Pipe:
STBA 12,STBA13:Low temperature annealing,
isothermal annealing, full annealing,
normalizing followed by tempering.
STBA 20 STBA22: Low temperature annealing,
isothermal annealing, full annealing,
normalizing followed by tempering.
STBA 23 STBA 24 STBA 25 STBA 26:Isothermal annealing,
full annealing followed by tempering.
| CHEMICAL COMPOSITION % max | |||||||
| Steel grade | C | Si | Mn | P | S | Cr | Mo |
| STBA 12 | 0.10-0.20 | 0.10-0.50 | 0.30-0.80 | 0.035 | 0.035 | - | 0.45-0.65 |
| STBA 13 | 0.15-0.25 | 0.10-0.50 | 0.30-0.80 | 0.035 | 0.035 | - | 0.45-0.65 |
| STBA 20 | 0.10-0.20 | 0.10-0.50 | 0.30-0.60 | 0.035 | 0.035 | 0.50-0.80 | 0.45-0.65 |
| STBA 22 | 0.15 | 0.5 | 0.30-0.60 | 0.035 | 0.035 | 0.80-1.25 | 0.45-0.65 |
| STBA 23 | 0.15 | 0.50-1.00 | 0.30-0.60 | 0.035 | 0.030 | 1.00-1.50 | 0.45-0.65 |
| STBA 24 | 0.15 | 0.5 | 0.30-0.60 | 0.035 | 0.030 | 1.90-2.60 | 0.87-1.13 |
| STBA 25 | 0.15 | 0.5 | 0.30-0.60 | 0.035 | 0.030 | 4.00-6.00 | 0.45-0.65 |
| STBA 26 | 0.15 | 0.25-1.00 | 0.30-0.60 | 0.035 | 0.030 | 8.00-10.00 | 0.9-1.10 |
| MECHANICAL PROPERTIES min | |||||
| Steel Grade | Tensile Strength Mpa | Yeild point or proof stress Mpa | Elongation % | ||
| OD 20mm and over | OD 10mm or over to and excl. 20mm | OD up to 10mm | |||
| STBA 12 | 380 | 205 | 30 | 25 | 22 |
| STBA 13 | 410 | 205 | 30 | 25 | 22 |
| STBA 20 | 410 | 205 | 30 | 25 | 22 |
| STBA 22 | 410 | 205 | 30 | 25 | 22 |
| STBA 23 | 410 | 205 | 30 | 25 | 22 |
| STBA 24 | 410 | 205 | 30 | 25 | 22 |
| STBA 25 | 410 | 205 | 30 | 25 | 22 |
| STBA 26 | 410 | 205 | 30 | 25 | 22 |
| Hardness | |
| Steel Grade | Rockwell hardness HRB(Mean value of three points) |
| STBA 12 | 80max |
| STBA 13 | 81max |
| STBA 20 | 85max |
| STBA 22 | 85max |
| STBA 23 | 85max |
| STBA 24 | 85max |
| STBA 25 | 85max |
| STBA 26 | 89max |
Looking for ideal Boiler and Heat Exchanger Tube Alloy Steel Tube Manufacturer & supplier ? We has a wide selection at great prices to help you get creative. All the Alloy Steel Seamless Pipe are quality guaranteed. We are China Origin Factory of Seamless Alloy Steel Heat Exchanger Tube. If you have any question, please feel free to contact us.
Product Categories : Seamless Alloy Steel Tubes
QUALITY CONTROL
1~ Incoming Raw Material Inspection
2~ Raw Material Segregation to avoid steel grade mix-up
3~ Heating and Hammering End for Cold Drawing
4~ Cold Drawing and Cold Rolling, on line inspection
5~ Heat Treatment, +A, +SRA, +LC, +N, Q+T
6~ Straightening-Cutting to specified length-Finished Measuring Inspection
7~ Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8~ Packing and Stocking.
100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.
-
