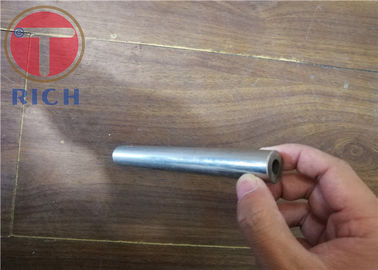

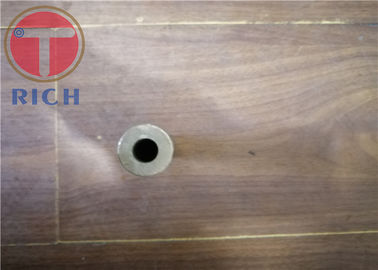

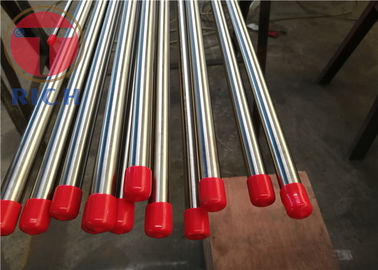

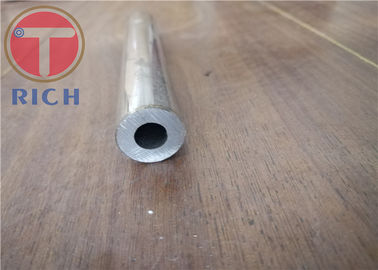

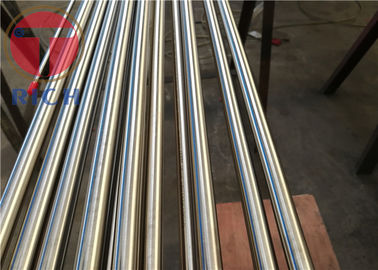

Tp316 304 Grade Stainless Steel Tube Thick Wall Cold Drawn For Mechanical
Product Details
stainless steel round tube
,stainless tube steel
ASTM A511 TP316 304 Thick Wall Seamless Stainless Steel Tube for Mechanical
covers seamless stainless tubing foruse in mechanical applications where corrosion-resistant orhigh-temperature strength is needed.
covers seamless cold-finished me-chanical tubing and seamless hot-finis hed mech anical tubing insizes up to 123/4 in.[ 325 mm] in outside nominal diameter (forround tubing) with wall thicknesses as required.
1)Diameter and Wall Thickness (Cold Finished)-
Variations in outside diameter and wall thickness shall notexceed the amounts prescribed in Table 5.
2)Diameter and Wall Thickness (Hot Finished)
Variations in outside diameter and wall thickness shall notexceed the amounts prescribed in Table 6.
3)Lengths (Cold Finished or Hot Finished) Mechanicaltubing is commonly furnished in mill lengths 5 ft [1.5 m] andover. When random lengths are ordered, tube lengths may varyby an amount up to 7 ft [2.1 m]. Definite cut lengths arefurnished, when specified, to the length tolerances shown inTable 5 or Table 6. For tubing ordered in multiple lengths, it iscommon practice to allow a definite amount over for eachmultiple for the purchaser s cutting operations. This amountdepends on the type of purchaser s cutting and varies withdiffering wall thickness. The cutting allowance should bespecified on the purchase order.
4)Straightness Tolerances (Cold Finished or HotFinished) The deviation from straightness shall not exceedthe amounts shown in Table 7 when measured with a 3-ft [1-m]straightedge and feeler gage. If determined by the dial indicatormethod, the values obtained will be approximately twice thosedetermined by the straightedge feeler gage method.
Tolerance for seamless stainless tube:
| Production Method | Size(mm) | Tolerance | |
| Hot Rolling(Extrusion) | OD | ≤140 | ±1.25% |
| ＞140 | ±1.0% | ||
| WT | ≤10 | ±12.5% | |
| ＞10 | ±15% | ||
| Cold Drawn(Cold Rolled) | OD | 8~30 | ±0.20mm |
| ＞30~50 | ±0.30mm | ||
| ＞50 | ±0.8% | ||
| WT | 1.0~3 | +12% -10% | |
| ＞3.0 | ±10% | ||
Length:
The length or general steel tube:
Hot Rolling(Extrusion) tube: 3~12 m
Cold Drawn(Cold Rolled) tube: 3~8 m
The length for water pipe & boiler steel pipe:
Hot Rolling(Extrusion) tube: 4~12 m
Cold Drawn(Cold Rolled) tube: 4~8 m
Bending tolerance:
WT≤15mm, Bending≤1.5mm/m
WT＞15mm, Bending≤2.0mm/m
End shape:
Both ends of the pipe should be cut at right angles, and remove burrs
Mechanical property
Heat treatment of longitudinal mechanical properties of steel pipe shall according to the standard.
| Material | Tensile strength MPa ≥ | Yield Strength MPa ≥ | Elongation % ≥ |
| 0Cr18Ni9 | 520 | 205 | 35 |
| 1Cr19Ni9 | 520 | 205 | 35 |
| 0Cr19Ni10 | 480 | 175 | 35 |
| 1Cr18Ni9Ti | 550 | 205 | 40 |
| 0Cr18Ni12Mo2Ti | 530 | 205 | 35 |
| 0Cr26Ni5Mo2 | 590 | 390 | 18 |
| 1Cr17 | 410 | 245 | 20 |
| 00Cr27Mo | 410 | 245 | 20 |
| 1Cr25Ti | 440 | 245 | 17 |
Hardness:
For the tubes which W.T. ≥2 mm, Rockwell hardness tests should be taken.
Tests of the seamless boiler tubes:
1.Bending Test:
The tubes should take the bending test when OD ≤22mm. The bending angle is 90 degrees, and the bending radius is 6 times the outer diameter of the steel tube.
2. Hydraulic test;
Eddy current testing, ultrasonic testing can be used instead of hydraulic tests. When eddy current testing, GB/T 7735-1995 Gr. A should be followed; when ultrasonic testing, GB/T 5777-1996 Gr. C8 should be followed.
3. Flattening test
4. Flanging test
5. Expand test
What is your Guarantee?
1.SO9001:2008 and TS16949 certification, SGS, BV, TUV or other third party inspection is available.
2.High quality with competitive price.
3.Advanced technology, experienced engineer, ISO quality system for quality assurance and traceability.
Do you have agent or distributor in our country?
1.We are recruiting area agent and distributor all over the world, welcome to send us your mail or call us for detail discussion.
How is your production capability?
1.2000 tons monthly production capacity, 5000 tons monthly trading capability
2.Prompt and Timely shipment
How to get the sample?
1.You are requested to pay for sample charges and courier charges from China to your country; and the free sample is according the product like size, steel grade and quantity, please consult our sales for details
2.Sample charges will be refunded when order is placed.
What is your Payment Term?
1.T/T: 30% deposit in advance, the balance 70% paid before shipment
2.30% down payment, the balance 70% paid against L/C at sight
3.Upon negotiation
Who are your customers?
1.Stockists, Distributors,Wholesalors,Agents, Traders, End Users, etc
How long will you react on our requirement?
1.Your requirement would be treated within 24 hours on weekdays. Quotations would be sent upon technical details confirmed by customer!
Any more questions about your doubts, please feel free to send us your emails or call!
-
