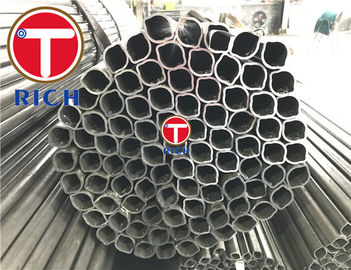

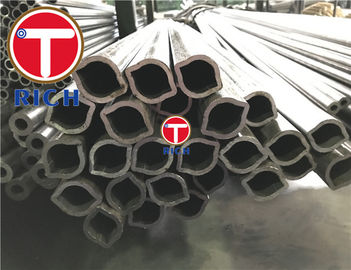

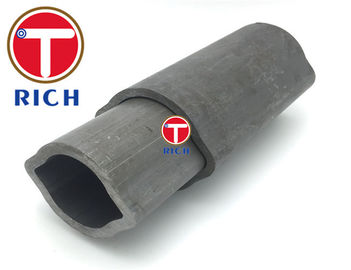

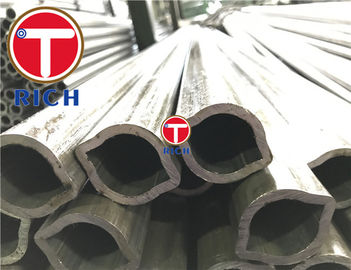

Lemon Shape Seamless Carbon Steel Tube Pto Shaft - 2 For Agricultural Drive Shaft
Basic Properties
Place of Origin:
China
Brand Name:
Torich
Certification:
ISO 9001 ISO14001 TS16949
Model Number:
1020 , E235 , E355 etc
Trading Properties
Minimum Order Quantity:
1 tons
Price:
negotiable
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
20000 Ton per Year
Product Summary
Lemon Shape Seamless Carbon Steel Tube Pto Shaft - 2 For Agricultural Drive Shaft Products Description: for Agricultural Drive Shaft Carbon Steel E235 E355 PTO Shaft-2 Lemon Tube Chemical Compositions: Standard Steel Grade C Si Mn P S EN 10305-1 E215 ≤0.10 ≤0.05 ≤0.70 ≤0.025 ≤0.025 E235 ≤0.17 ≤0.35 ...
Product Details
Highlight:
alloy steel seamless pipe
,structural steel square tubing
Characteristic:
Triangle Steel Tube
Material:
ST52 , E235 , 1020 Etc
Production Method:
Seamless Cold Drawn
Package:
In Bundles Or As Per Requests
End Protector:
Plain / Beveled
Length:
2-12m
Type:
Carbon Steel Lemon Tube
MTC:
EN10204.3.1
Product Description
Lemon Shape Seamless Carbon Steel Tube Pto Shaft - 2 For Agricultural Drive Shaft
Products Description:
for Agricultural Drive Shaft Carbon Steel E235 E355 PTO Shaft-2 Lemon Tube
Chemical Compositions:
| Standard | Steel Grade | C | Si | Mn | P | S |
| EN 10305-1 | E215 | ≤0.10 | ≤0.05 | ≤0.70 | ≤0.025 | ≤0.025 |
| E235 | ≤0.17 | ≤0.35 | ≤1.20 | ≤0.025 | ≤0.025 | |
| E355 | ≤0.22 | ≤0.55 | ≤1.60 | ≤0.025 | ≤0.025 | |
| DIN 2391 | St35 | ≤0.17 | ≤0.35 | ≥0.40 | ≤0.025 | ≤0.025 |
| St37.4 | ≤0.17 | ≤0.35 | ≥0.40 | ≤0.025 | ≤0.025 | |
| St45 | ≤0.21 | ≤0.35 | ≥0.40 | ≤0.025 | ≤0.025 | |
| St52 | ≤0.22 | ≤0.55 | ≤1.60 | ≤0.025 | ≤0.025 | |
| GB/T 3639 | 10 | 0.07-0.13 | 0.17-0.37 | 0.35-0.65 | ≤0.030 | ≤0.030 |
| 20 | 0.17-0.23 | 0.17-0.37 | 0.35-0.65 | ≤0.030 | ≤0.030 | |
| 35 | 0.32-0.39 | 0.17-0.37 | 0.50-0.80 | ≤0.030 | ≤0.030 | |
| 45 | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 | ≤0.030 | ≤0.030 | |
| Q345B | ≤0.20 | ≤0.50 | ≤1.70 | ≤0.030 | ≤0.030 |
Size:
| Lemon Tube | Outer (mm) | Inner (mm) | ||||
| A | B | S | A | B | S | |
| 1S | 39 | 30 | 3 | 30.8 | 3.7 | 3.5 |
| 4S | 48 | 41.2 | 3 | 40.1 | 34.5 | 4 |
| 6S | 57.5 | 48 | 3.8 | 49 | 39.5 | 4.5 |
| Lemon Tube | Outer (mm) | Inner (mm) | ||||
| A | B | S | A | B | S | |
| 1S | 39 | 30 | 3 | 30.8 | 3.7 | 3.5 |
| 4S | 48 | 41.2 | 3 | 40.1 | 34.5 | 4 |
| 6S | 57.5 | 48 | 3.8 | 49 | 39.5 | 4.5 |
Applications: for Agricultural Drive Shaft
Product information:
| Material: | SAE1010 , SAE1020 , SAE1035 , SAE1045 , ST37.0 , ST44 , ST52 , E235 , E355 |
| Grade: | BS, JIS, GB, DIN, ASTM, API, |
| Shape: | Lemon |
| Wall thickness: | 0.5-50mm |
| Length: | up to 12m, or according to customer's requirement. |
| Outer diameter: | Round: 5-420mm |
| Diameter and wall thickness could be at customer's request. | |
| Technology: | Cold Draw/Cold Rolled |
| Surface treatment: | painted,galvanized,or oiled according to customer's requirement |
| Application: | Lighting,furniture,medical equipments |
| Place of origin: | China |
| Application | Mechanical structure, Carbon pressure machinery etc. |
Production Steel Tube:
Eddy Current Test and Ultrasonic Test:
Packing:
