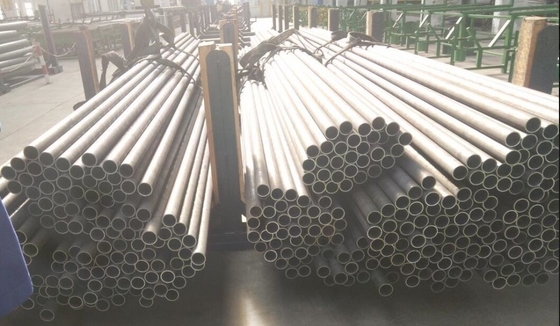

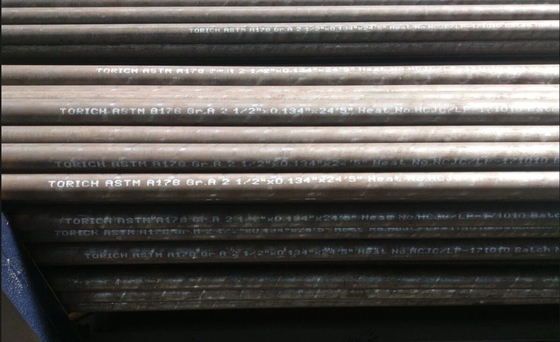

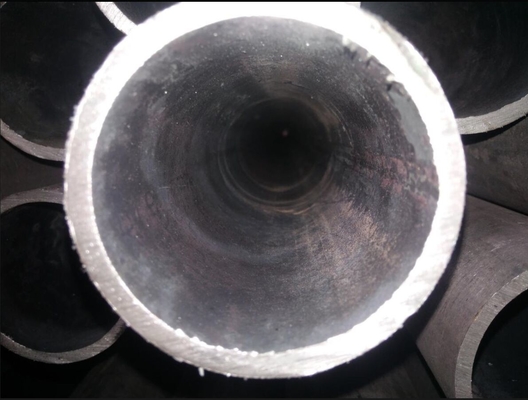

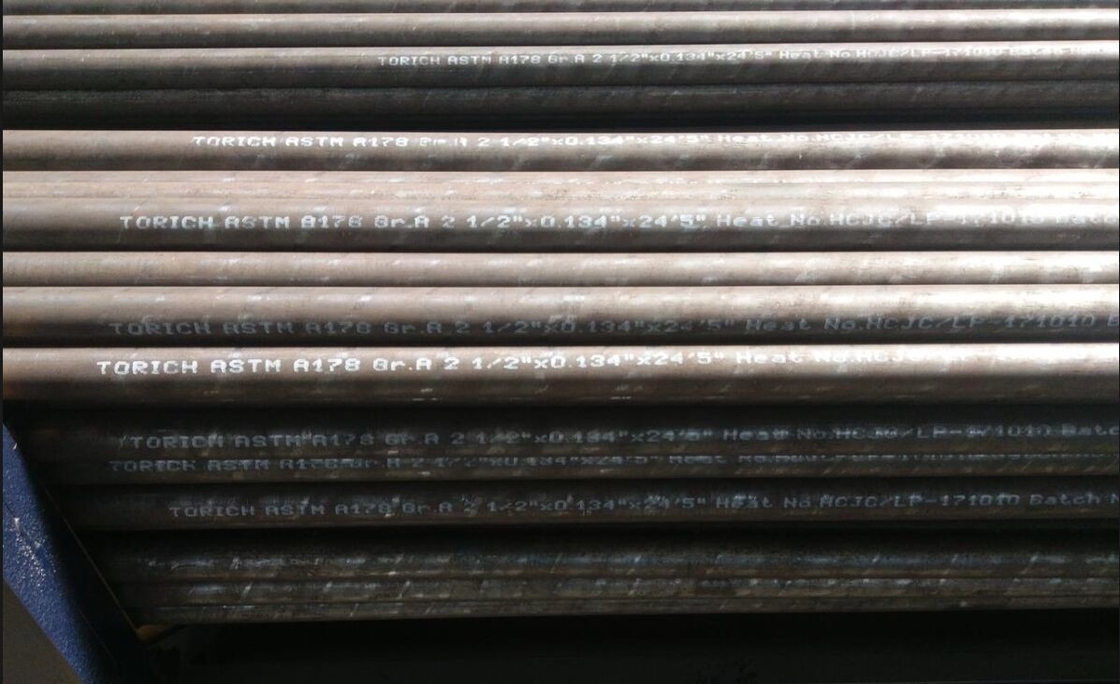

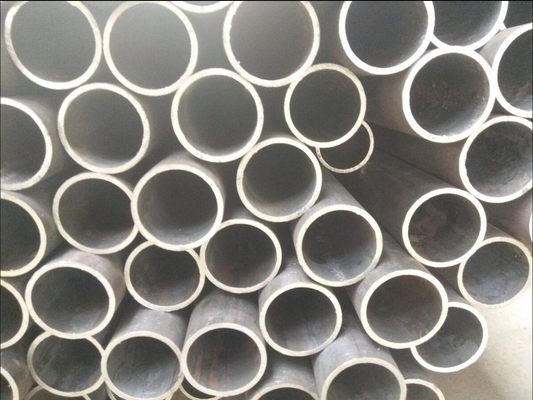

ASTM A178 Round Welded Carbon Steel Heat Exchanger Tubes
Basic Properties
Place of Origin:
Zhejiang,China
Brand Name:
TORICH
Certification:
ISO9001 ISO14001 TS16949
Model Number:
ASTM A178
Trading Properties
Minimum Order Quantity:
5 tons
Price:
usd 500-1200 per ton
Payment Terms:
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability:
50000 tons per ton
Product Summary
ASTM A178 Round Welded Carbon Steel Heat Exchanger Tubes Material: Carbon steel and carbon manganese steel Production: Electric Resistance Welding Size range: O.D.: 12.7-127mm W.T.:0.9-9.1mm L: according to customer requirement Applications: For Boilers, Superheaters, Heat-Exchangers, Condensers, ...
Product Details
Highlight:
welded steel pipe
,welding steel tubing
Product Name:
ASTM A178 Round Welded Carbon Steel Heat Exchanger Tubes
Keyword:
Heat Exchanger Tubes
Application:
Used For Boiler Tubes,boiler Flues,superheater Flues,and E Ends
Shape:
Round
Material:
Q195 Q235 Q345
Technique:
ERW
Length:
Max12000mm
OD:
12.7-127mm
WT:
0.9-9.1mm
Place Of Origin:
Zhejiang,China
Product Description
ASTM A178 Round Welded Carbon Steel Heat Exchanger Tubes
Material: Carbon steel and carbon manganese steel
Production: Electric Resistance Welding
Size range: O.D.: 12.7-127mm W.T.:0.9-9.1mm L: according to customer requirement
Applications: For Boilers, Superheaters, Heat-Exchangers, Condensers, Boiler flues, Superheater flues and e ends
Heat treatment:
After welding, all tubes are heat treated at a temperature of 1650℉ (900℃) or higher and followed by cooling in air or in the cooling chamber of a controlled atmosphere furnace.
Cold-Drawn tubes are heat treated after the final cold-draw pass at a temperature of 1200℉(650℃)or higher.
Tests and Inspection:
Tensile Test
Crush Test
Mechanical Test
- Flattening Test
- Flange Test
Chemical Properties
| Element | Grade A,Low-Cabon Steel | Grade C,Medium-Carbon Steel | Grade D, Carbon-Manganese Steel | |
| Carbon | 0.06-0.18 | 0.35 Max | 0.27Max | |
| Manganese | 0.27-0.63 | 0.80Max | 1.00-1.50 | |
| Phosphorus,Max | 0.035 | 0.035 | 0.030 | |
| Sulfur,Max | 0.035 | 0.035 | 0.015 | |
| Silicon | - | - | 0.10 min | |
| Mechanical Properties | Grade A | Grade C | Grade D | |
| Tensile Strength:min ksi(Mpa) | 47(325) | 60(415) | 70(485) | |
| Yield Point:min ksi(Mpa) | 26(180) | 37(255) | 40(275) | |
| Elongation | ≥35% | ≥30% | ≥30% | |
Tolerance for OD and WT(SA-450/SA-450M)
| OD in(mm) | + | - | WT in(mm) | + | - |
| <1''(25.4) | 0.10 | 0.10 | ≤1.1/2''(38.1) | 20% | 0 |
| 1''~1.1''(25.4~38.1) | 0.15 | 0.15 | >1.1/2''(38.2) | 22% | 0 |
| >1.1/2''~<2''(38.1~50.8 | 0.20 | 0.20 | |||
| 2''~<2.1/2''(50.8~63.5) | 0.25 | 0.25 | |||
| 2.1/2''~<3''(63.5~76.2) | 0.30 | 0.30 | |||
| 3''~<4''(76.2~101.6) | 0.38 | 0.38 | |||
| 4''~<7.1/2''(101.6~190.5) | 0.38 | 0.64 | |||
| >7.1/2~9''(190.5~228.6) | 0.38 | 1.14 |
Production&Package
TAG
tube boiler astm a178
astm a178
astm a178 pipe
ASTM A178 ERW carbon steel and carbon manganese steel boiler and superheater tubes,boiler tube/pipe
