1010 1020 Lemon Pipe Type Triangle Steel Tube

Minimum Order Quantity : 1 tons Price : negotiable
Packaging Details : In plywood case, In wooden box. Delivery Time : 30-45 days after order confirmed
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 20000 Ton per Year
Place of Origin: China Brand Name: Torich
Certification: ISO 9001 ISO14001 TS16949 Model Number: ST52 , E235 , E355 etc

Detail Information

Name: 1010 1020 Lemon Pipe Type Triangle Steel Tube Material: ST52 , E235 , 1020 Etc
Production Method: Seamless Cold Finished Package: In Bundles Or As Per Requests
End Protector: Plain / Beveled Length: 2-12m
Type: Carbon Steel Lemon Tube MTC: EN10204.3.1
High Light:

structural steel square tubing

,

rectangular steel pipe

Product Description

Products Description:

for PTO Agricultural Drive Shaft 1010 1020 Lemon Pipe Type Triangle Steel Tube



Chemical Compositions:

Standard Steel Grade C Si Mn P S
EN 10305-1 E215 ≤0.10 ≤0.05 ≤0.70 ≤0.025 ≤0.025
E235 ≤0.17 ≤0.35 ≤1.20 ≤0.025 ≤0.025
E355 ≤0.22 ≤0.55 ≤1.60 ≤0.025 ≤0.025
DIN 2391 St35 ≤0.17 ≤0.35 ≥0.40 ≤0.025 ≤0.025
St37.4 ≤0.17 ≤0.35 ≥0.40 ≤0.025 ≤0.025
St45 ≤0.21 ≤0.35 ≥0.40 ≤0.025 ≤0.025
St52 ≤0.22 ≤0.55 ≤1.60 ≤0.025 ≤0.025
GB/T 3639 10 0.07-0.13 0.17-0.37 0.35-0.65 ≤0.030 ≤0.030
20 0.17-0.23 0.17-0.37 0.35-0.65 ≤0.030 ≤0.030
35 0.32-0.39 0.17-0.37 0.50-0.80 ≤0.030 ≤0.030
45 0.42-0.50 0.17-0.37 0.50-0.80 ≤0.030 ≤0.030
Q345B ≤0.20 ≤0.50 ≤1.70 ≤0.030 ≤0.030



Size:

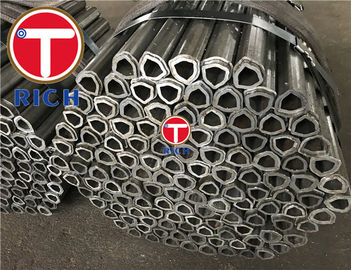

1010 1020 Lemon Pipe Type Triangle Steel Tube 0



Triangle Steel Tube Outer (mm) Inner (mm)
H S H S
1S 32.4 2.5 26.6 3.5
2S 36.1 3.4 29 4
4S 43.4 3.3 36.1 4.4
5S 51.3 2.9 44.7 4
6S 53.6 3.8 44.7 4
7S 53.6 3.8 44.7 5.5
8S 62.7 4 53.6 4.5
9S 62.7 4 53.6 5.5



Applications: PTO Agricultural Drive Shaft Tube



Product information:

Material: SAE1010 , SAE1020 , SAE1035 , SAE1045 , ST37.0 , ST44 , ST52 , E235 , E355
Grade: BS, JIS, GB, DIN, ASTM, API,
Shape: Lemon
Wall thickness: 0.5-50mm
Length: up to 12m, or according to customer's requirement.
Outer diameter: Round: 5-420mm
  Diameter and wall thickness could be at customer's request.

Technology: Cold Draw/Cold Rolled
Surface treatment: painted,galvanized,or oiled according to customer's requirement
Application: Lighting,furniture,medical equipments
Place of origin: China
Application Mechanical structure, Carbon pressure machinery etc.



Pictures:

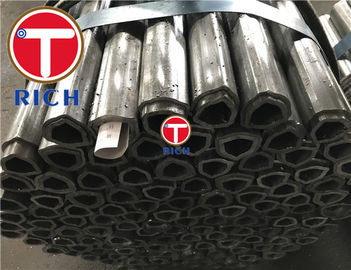

1010 1020 Lemon Pipe Type Triangle Steel Tube 1



Eddy Current Test and Ultrasonic Test:

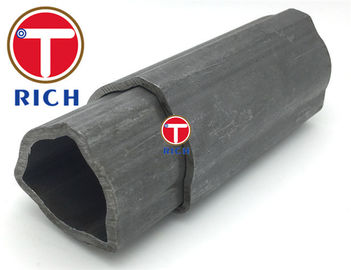

1010 1020 Lemon Pipe Type Triangle Steel Tube 2



Packing:

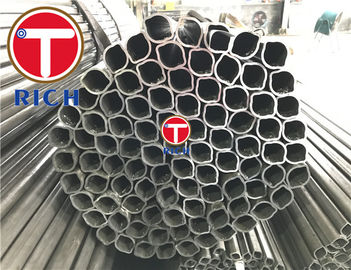

1010 1020 Lemon Pipe Type Triangle Steel Tube 3
