Seamless Mediumcarbon Steel Heat Exchanger Tubes Astm A210 / Sa210 Standard
Product Details
precision stainless steel tubing
,seamless carbon steel tube
| Product Name | ASTM A210/SA210 Seamless Medium Carbon Steel Heat Exchanger Tubes |
| Brand | TORICH |
| Standard | ASTM A210/SA210 |
| Grade | 10#, 20#, Q195, Q215, Q235 etc |
| Size | OD: 12.7-127mm WT:1-15mm L:1-15m |
| Technic | Cold Drawn |
| Condition | Normalizing, Annealed |
| Used | Boiler and Superheater Tubes |
Chemical Requirement
| Grade | C | Mn | P | S | Si |
| A-1 | ≤0.27 | ≤0.93 | ≤0.035 | ≤0.035 | ≥0.10 |
| C | ≤0.35 | 0.29-1.06 | ≤0.035 | ≤0.035 | ≥0.10 |
Mechanical properties
| Grade | Yield Point Mpa(ksi) | Tensile Strength Mpa(ksi) | Elongation |
| A-1 | ≥255(37) | ≥415(60) | ≥30% |
| C | ≥275(40) | ≥485(70) | ≥30% |
Manufacture:
Steelmarking Practive-The steel should be killed
The tubes shall be made by the seamless process and shall be either hot-finished or cold-finished, as specified.
Hardness Requirement:
The tubes shall have a hardness not exceeding the following: 79HRB or 143HB for Grade A-1, 89HRB or 179HB for Grade C.
Test:
Tension Test Flaring Test
Flattening Test Hardness Test
Hydrostatic or Nondestructive Electric Test
QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking
100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.

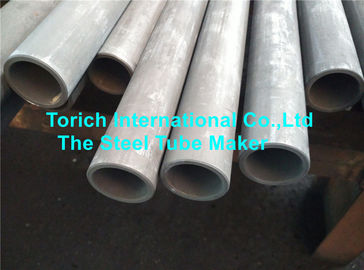

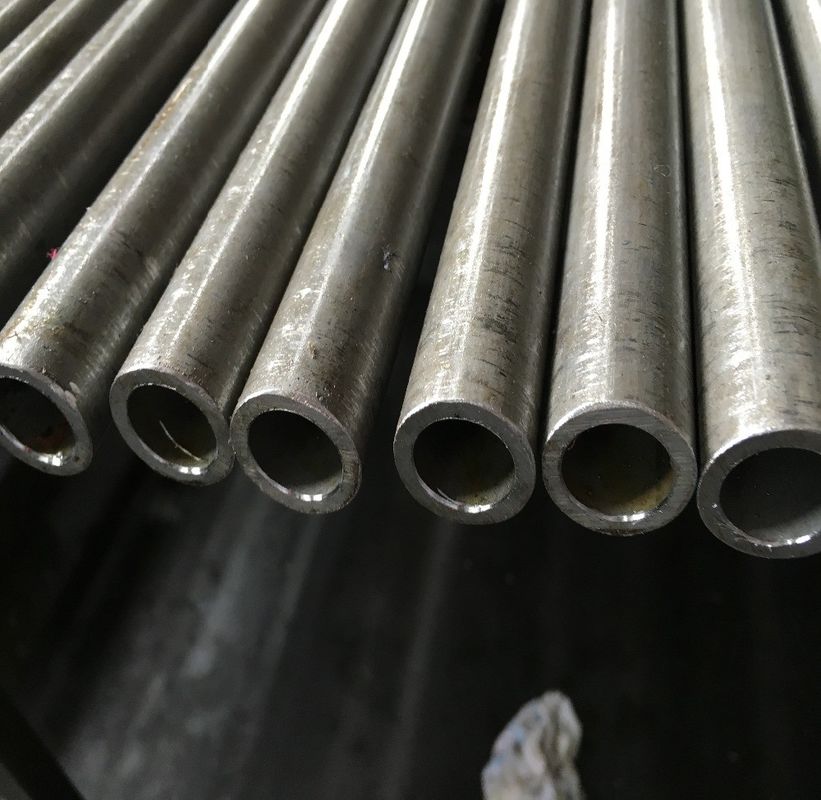

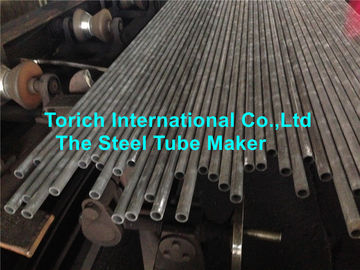

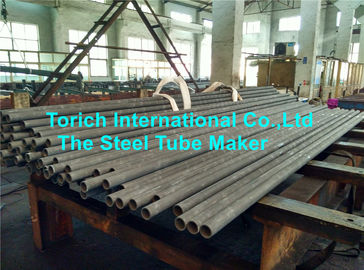

Products Show
Mechanical Carbon Seamless Steel Tube Medium Carbon Steel Seamless Tube TorichInternational Co.,Ltd is a professional manufacturer and exporter of steel pipes materials. It is an international marketing and sales company specialized in steel tubes.
Our main products:Seamless Steel Tubes with Carbon and Alloy Steel Grade, Welded Precision Steel Tubes,DOM Steel Tubes, Seamless & Welded Stainless Steel Tubes with Nickel and Alloy Steel Tube.
Our factory was established since 1997, with the name of Haiyan SanxinSteel Pipe Co., Ltd. The factories` technicians are of great engineering experience in steel pipe industry for more than 20 years, who are in great command of production technology for Cold Drawing and Cold Rolling, as well as heat treatment and inspection. So we have strong technician team and manufacturing capability.
Seamless Seel Tubes are packed in wooden boxes or hexagonal bundles in seaworthy packing.
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
-
