U Bend Seamless Carbon Steel Pipe Cold Drawn Astm A179 For Heat Exchanger
Product Details
seamless carbon steel tube
,precision stainless steel tubing
ASTM A179 Seamless Cold Drawn Low Carbon Steel Heat Exchanger Tubes and Condenser Tubes
Applications:
- For Boilers
- Superheaters
- Heat-Exchangers
- Condensers
Characteristic:
Good concentricity
Good surface quality
Good OD and ID tolerance
High Precision
Stable quality
Smooth Roughness
TORICH QUALITY ASSURANCE

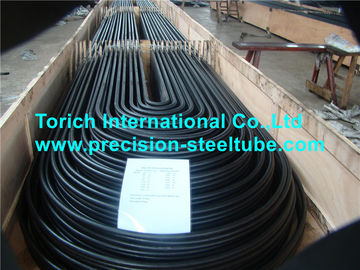

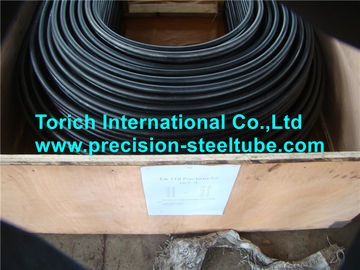

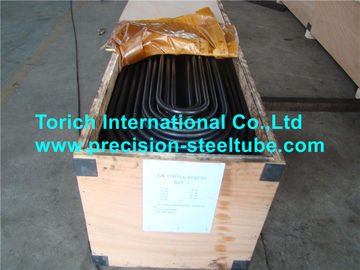

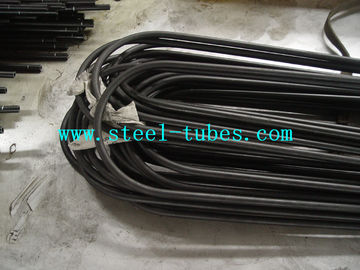

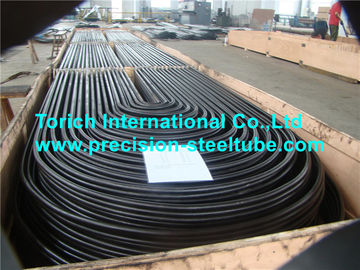

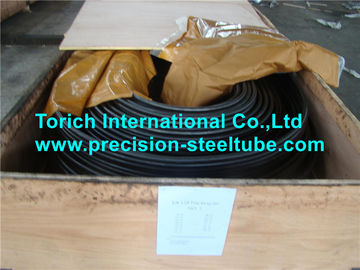

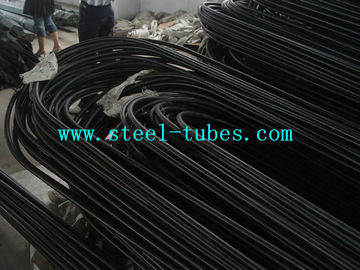

U bend Tubes according to Customer request
Size range
O.D.:6-168mm W.T.:1-15mm L: according to customer requirement.
Steel Grade and Chemical Compositions:
| C | 0.06-0.18 | |
| Mn | 0.27-0.63 | |
| P | ≤ 0.035 | |
S | ≤ 0.035 |
Mechanical Properties
Tensil Streghth: min ksi[Mpa] 47[325]
Yield Point: min ksi[Mpa] 26[180]
Elongation: ≥35%
Hardness: ≤72HRB
What is your Guarantee?
1.SO9001:2008 and TS16949 certification, SGS, BV, TUV or other third party inspection is available.
2.High quality with competitive price.
3.Advanced technology, experienced engineer, ISO quality system for quality assurance and traceability.
Do you have agent or distributor in our country?
We are recruiting area agent and distributor all over the world, welcome to send us your mail or call us for detail discussion.
How is your production capability?
1.2000 tons monthly production capacity, 5000 tons monthly trading capability
2.Prompt and Timely shipment
How to get the sample?
1.You are requested to pay for sample charges and courier charges from China to your country; and the free sample is according the product like size, steel grade and quantity, please consult our sales for details
2.Sample charges will be refunded when order is placed.
What is your Payment Term?
1.T/T: 30% deposit in advance, the balance 70% paid before shipment
2.30% down payment, the balance 70% paid against L/C at sight
3.Upon negotiation
Who are your customers?
Stockists, Distributors,Wholesalors,Agents, Traders, End Users, etc
How long will you react on our requirement?
Your requirement would be treated within 24 hours on weekdays. Quotations would be sent upon technical details confirmed by customer!
QUALITY CONTROL
1~ Incoming Raw Material Inspection
2~ Raw Material Segregation to avoid steel grade mix-up
3~ Heating and Hammering End for Cold Drawing
4~ Cold Drawing and Cold Rolling, on line inspection
5~ Heat Treatment, +A, +SRA, +LC, +N, Q+T
6~ Straightening-Cutting to specified length-Finished Measuring Inspection
7~ Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8~ Packing and Stocking.
100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.
Any more questions about your doubts, please feel free to send us your emails or call
-
