GB/T 31940 Stainless Steel Tube Bi-Metal Composite Corrosion Resistance For Fluid Transportation
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
| Minimum Order Quantity : | 100 Kgs | Price : | negotiable |
|---|---|---|---|
| Packaging Details : | Standard export seaworthy package, or as required. | Delivery Time : | 2-3 Weeks |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 10000 Tons Per Month |
| Place of Origin: | Zhejiang China | Brand Name: | TORICH |
|---|---|---|---|
| Certification: | ISO | Model Number: | ASTM A268 |
|
Detail Information |
|||
| Standard:: | JIS, AISI, ASTM, GB, DIN, EN | Application:: | Boiler Tube |
|---|---|---|---|
| Steel Grade:: | 400 Series | Type:: | Seamless |
| Surface:: | Bright Annealing | Outer Diameter:: | 6-219.1mm |
| Thickness:: | 0.5-12.7mm | Shape:: | Round Section |
| High Light: | stainless tube steel,large diameter stainless steel tube |
||
Product Description

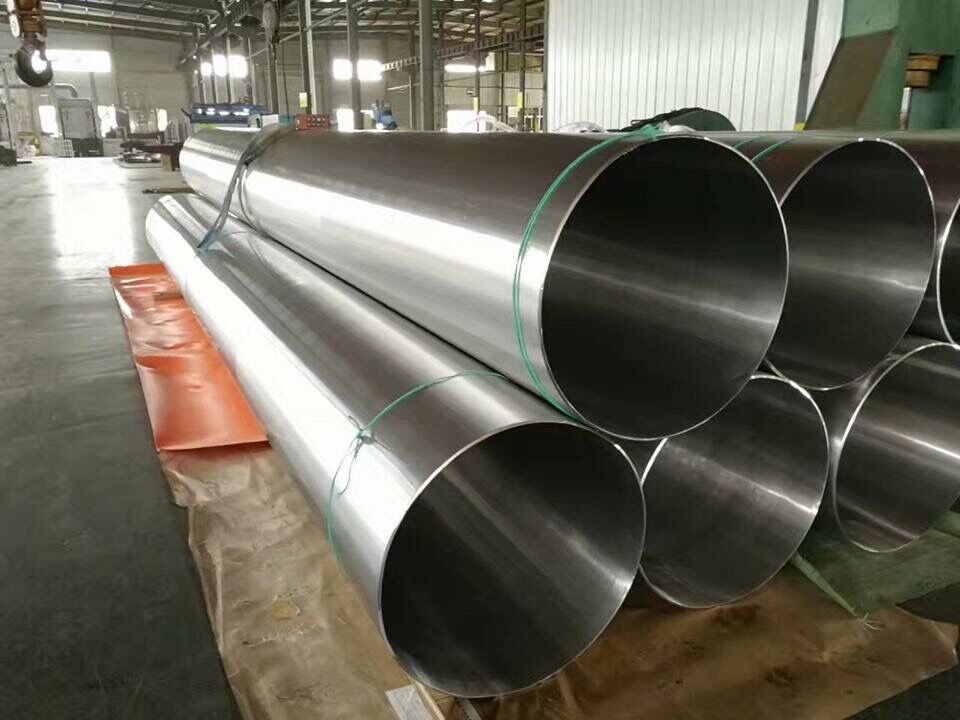

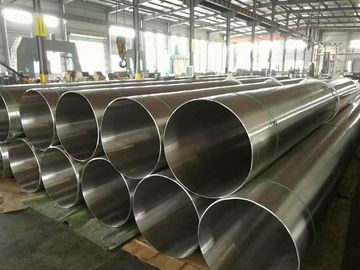

ASTM A268 Ferritic and Martensitic Steel Products Stainless Steel Tubes
Available Size: O.D 6-219.1mm
W.T 0.5-12.7mm
L 20 meter Max
Available Specification:
ASTM A268/A268M ASME SA268/SA268M
Delivery Condition:
1.Annealed and Pickled
2.Bright and Annealed
3.Annealed and Pickled + Polishing
4.Bright and Annealed + Polishing
CHEMICAL COMPOSITION
| Grade | UNS | Chemical , % | ||||||||
| C | Mn | P | S | Ni | Cr | Mo | N | Ti | ||
| TP410 | S41000 | 0.15max | 1.00max | 0.040max | 0.030max | ... | 11.5-13.5 | ... | ... | ... |
| S42035 | 0.08max | 1.00max | 0.045max | 0.030max | 1.0-2.5 | 13.5-15.5 | ... | 0.30-0.50 | ||
| TP430 | S43000 | 0.12max | 1.00max | 0.040max | 0.030max | ... | 16.0-18.0 | ... | ... | ... |
| TP446-1 | S44600 | 0.025max | 1.50max | 0.040max | 0.030max | ≤0.75 | 23-27 | ... | 0.025max | ... |
| TP446-2 | S44600 | 0.012max | 1.50max | 0.040max | 0.030max | ≤0.50 | 23-27 | ... | 0.025max | ... |
| 26-3-3 | S44660 | 0.030max | 1.00max | 0.040max | 0.030max | 1.0-3.5 | 25-28 | ... | 0.040max | |
| Grade | UNS | Tensile Strength Min,Ksi (Mpa) | Yield Strength Min, Ksi(Mpa) | Elongation in 2 in or 50mm,Min,% | Rockwell Hardness Max |
| TP410 | S41000 | 60(415) | 30(205) | 20 | 95 |
| S42035 | 80(550) | 55(380) | 16 | 88 | |
| TP430 | S43000 | 60(415) | 35(240) | 20 | 90 |
| TP446-1 | S44600 | 70(485) | 40(275) | 18 | 95 |
| TP446-2 | S44600 | 65(450) | 40(275) | 20 | 95 |
| 26-3-3 | S44600 | 85(585) | 65(450 | 20 | 25 |
Packaging Details
Standard export seaworthy package, or as required.
*Film/kraft paper/bubble bag package.
*Wooden pallet.
*Woven bag with bundle in points
