Polishing Surface Seamless Steel Tube Astm B861 Titanium Alloy Steel Material
Product Details
seamless steel pipe
,seamless carbon steel tube

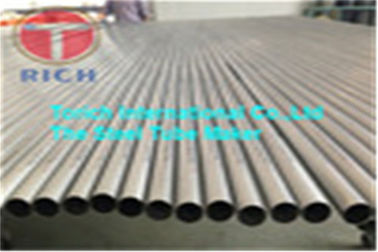

Polishing Surface TORICH ASTM B861/ASME SB861 Seamless Titanium Alloy Steel Tubes
Standard: GB/T3624, GB/T3625, ASTM B338/ASME SB338, ASTM B861/ASME SB861, DIN17861, ASTM A370
Size range: OD: 5-168mm
WT: 0.2-5.2mm
Length: 15m max
Material: Gr1, Gr2, Gr7, Gr9, Gr12, Gr16
Usage: Condenser and Heater-Exchange
Chemical Composition%
| Grade | N max | C max | H max | Fe max | O max | Residual | Al | V | Pd | Mo | Cr | Si max | S max | Mn max | Cu | Oth ers | Ni | Ti | |
| Each max | Total max | ||||||||||||||||||
| Gr.1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | 0.1 | 0.4 | - | - | - | - | - | - | - | - | - | - | - | balance |
| Gr.2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | 0.1 | 0.4 | - | - | - | - | - | - | - | - | - | - | - | balance |
| Gr.3 | 0.05 | 0.08 | 0.015 | 0.30 | 0.35 | 0.1 | 0.4 | - | - | - | - | - | - | - | - | - | - | - | balance |
| Gr.7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | 0.1 | 0.4 | - | - | 0.12-0.25 | - | - | - | - | - | - | - | - | balance |
| Gr.9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 0.1 | 0.4 | 2.5-3.5 | 2.0-3.0 | - | - | - | - | - | - | - | - | - | balance |
| Gr.12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | 0.1 | 0.4 | - | - | - | 0.2-0.4 | - | - | - | - | - | - | 0.6-0.9 | balance |
| Gr.16 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | 0.1 | 0.4 | - | - | 0.04-0.08 | - | - | - | - | - | - | - | 0.6-0.9 | balance |
Mechanical Property
| Grade | TS(Mpa) | YS(Mpa) | E(%), min |
| Gr.1 | ≥240 | 138-310 | 24 |
| Gr.2 | ≥345 | 275-450 | 20 |
| Gr.3 | ≥450 | 380-550 | 18 |
| Gr.7 | ≥345 | 275-450 | 20 |
| Gr.9 | ≥620 | ≥483 | 15 |
| Gr.12 | ≥483 | ≥345 | 18 |
| Gr.16 | ≥345 | 275-450 | 20 |
Characteristic:
Good concentricity High Precision
Good surface quality Stable quality
Good OD and ID tolerance Smooth Roughness
TORICH QUALITY ASSURANCE
Torich International Co.,Ltd is a professional manufacturer and exporter of steel pipes materials. It is an international marketing and sales company specialized in steel tubes, which holds the factories of Seamless Steel Tubes with Carbon and Alloy Steel Grade, Welded Precision Steel Tubes,DOM Steel Tubes, Seamless & Welded Stainless Steel Tubes with Nickel and Alloy Steel Grade.
Our factory was established since 1997, with the name of Haiyan Sanxin Steel Pipe Co., Ltd. The factories’ technicians are of great engineering experience in steel pipe industry for more than 20 years, which are in great command of production technology for Cold Drawing and Cold Rolling. So we have strong technician team and manufacturing capability.
-
