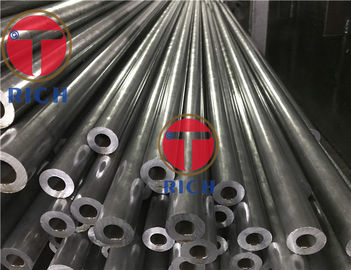

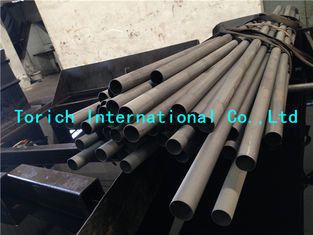

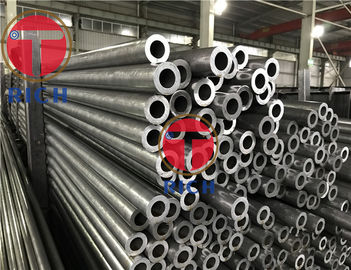

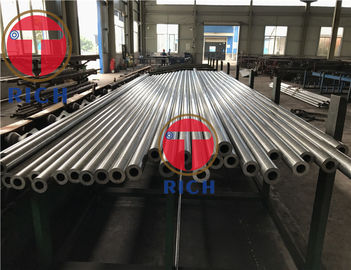

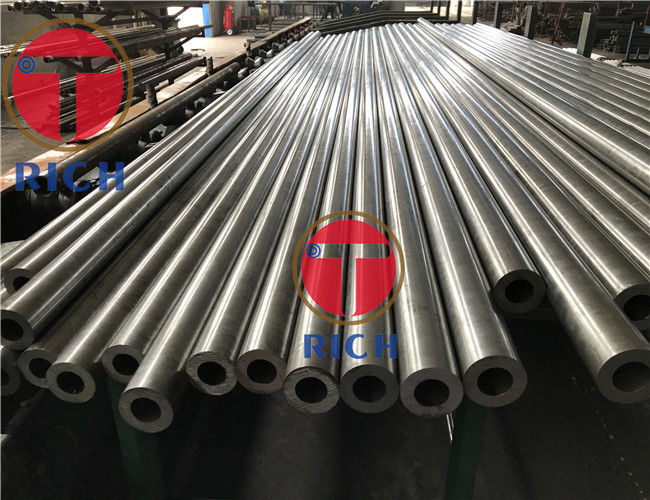

Cold Finished Seamless Mechanical Tubing Bs6323-4 Standard For Auto Industry
Product Details
seamless steel pipe
,precision stainless steel tubing
BS6323-4 Cold Finished Seamless Steel Tube With Grade CFS1 CFS2 CFS3 CFS4 CFS5 42CrMo4
Standard: BS6323-4 Seamless and Welded steel tubes for automobile,mechanical and general engineering purposes
Part 4: Specific requirements for cold finished seamless steel tubes
Applications: for Auto industry / for machinery use/mechanical and general engineering purposes
Size range: O.D.:6-280mm W.T.:1-30mm L:max12000mm
Method of manufacture:
The tubes are manufactured by a seamless process and shall be cold finished
It is permissible for cold finished tubes to have on internal and external surfaces an adherent layer of residual to subsequent processing, then their removal shall be the subject of an agreement between the manufacturer and the purchaser.
Delivery Condition:
The tubes are supplied in one of the following condition:
a. Cold finished/hard (cold finished as drawn) : BK
b. Cold finished/soft (lightly cold worked ): BKW
c. Annealed: GBK
d. Annealed (including de-scaling): GZF
e. Normalized: NBK
f. Normalized ( including de-scaling): NZF
Tests:
Flattenning tests
Leak tightness test- Eddy current test
| Design ation | Chemical Compositions( ladle analysis) | ||||||
| C | Si | Mn | Pmax. | Smax. | Cr | Mo | |
| % | % | % | % | % | % | % | |
| CFS 3 | 0.20 max. | 0.35 max. | 0.90max. | 0.050 | 0.050 | __ | __ |
| CFS 3Aa | 0.20 max. | 0.10 to 0.35 | 0.60 to 1.00 | 0.050 | 0.050 | __ | __ |
| CFS 4 | 0.25 max. | 0.35 max. | 1.20 max. | 0.050 | 0.050 | __ | __ |
| CFS 5b | 0.23 max. | 0.50 max. | 1.50 max. | 0.050 | 0.050 | __ | __ |
| CFS 6 | 0.30 to0.40 | 0.35 max. | 0.50 to 0.90 | 0.050 | 0.050 | __ | __ |
| CFS 7 | 0.20 to 0.30 | 0.35 max. | 1.20 to1.50 | 0.050 | 0.050 | __ | __ |
| CFS 8d | 0.40 to 0.55 | 0.35 max. | 0.50 to0.90 | 0.050 | 0.050 | __ | __ |
| CFS 9 | 0.29max. | 0.35 max. | 1.50max. | 0.050 | 0.050 | __ | 0.15 to0.25 |
| CFS 10 | 0.26max. | 0.35 max. | 0.80max. | 0.050 | 0.050 | 0.80 to1.20 | 0.15 to0.30 |
| CFS 11 | 0.45max. | 0.35 max. | 1.00 max. | 0.050 | 0.050 | 0.80 to1.20 | 0.15 to0.30 |
Who We are ?
-------A professional steel pipes materials inventor, manufacturer and solution provider Torich Interational Co.,Ltd is a professional manufacturer and exporter of steel pipes materials.
It is an international marketing and sales company specialized in steel tubes, which holds the factories of Seamless Steel Tubes with Carbon and Alloy Steel Grade, Welded Precision Steel Tubes,DOM Steel Tubes, Seamless & Welded Stainless Steel Tubes with Nickel and Alloy Steel Grade.
Our factory was established since 1997, with the name of Haiyan Sanxin Steel Pipe Co., Ltd. The factories` technicians are of great engineering experience in steel pipe industry for more than 20 years, which are in great command of production technology for Cold Drawing and Cold Rolling. So we have strong technician team and manufacturing capability.
-
