BS6323-6 Seamless Welded Precision Steel Tube Machining 35mm Wall Thickness

BS6323-6 Seamless Welded Precision Steel Tube Machining 35mm Wall Thickness

Standard for precision steel tube: BS6323-6 Seamless and Welded Steel Tubes for Automobile,Mechanical and General Engineering Purposes
Part 6: Specific requirements for cold finished electric resistance welded(including induction welded) steel tubes

Applications for BS6323-6 Seamless and Welded Steel Tubes : Auto Industry Machinery Use Mechanical and General Engineering Purposes

Size range for BS6323-6 Seamless and Welded Steel Tubes : O.D.:6-350mm W.T.:1-35mm L:max12000mm

Method of Manufacture for BS6323-6 Seamless and Welded Steel Tubes :

The tubes are manufactured from flat rolled strip, longintudinally welded continuously by the passage of an electric current

across the abutting edges without the addition of filler metal.

They are subsequently cold finished normally on both the inside and outside surfaces, where it is permissble to have both an adherent layer of residual lubricant originating from the drawing process and visible traces of the internal weld upset.

If phosphate or other residues are detrimental to subsequent processing, their removal shall be the subject of an agreement between the manufacturer and purchaser.

Publications referred to:

BS 3601 BS 3602 BS 3603 BS 3604 BS 3605 BS 4360 BS 4848

BS 4848-2 BS 5135 BS 6323 BS 6323-1 BS 6363 ISO 4200

Delivery Condition for BS6323-6 Seamless and Welded Steel Tubes :

The tubes are supplied in one of the following condition:

a. Cold finished/hard (cod finished as drawn) : BK

b. Cold finished/soft (lightly cold worked ): BKW

c. Annealed: GBK

d. Annealed (including de-scaling): GZF

e. Normalized: NBK

f. Normalized ( including de-scaling): NZF

It is permissible for tubes supplied in the GBK and NBK conditions to be discoloured, but they shall be free from loose scale.

Where tubes, in the GBK condition are required bright annealed, this shall be the subject of an agreement between the purchaser and the manufactuer.

Testing for BS6323-6 Seamless and Welded Steel Tubes:

Flattening test

Drift expanding test

Leak tightness test.

Standard: BS6323-6 Seamless and Welded Steel Tubes for Automobile,Mechanical and General Engineering Purposes
Part 6: Specific requirements for cold finished electric resistance welded(including induction welded) steel tubes

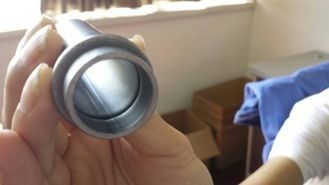

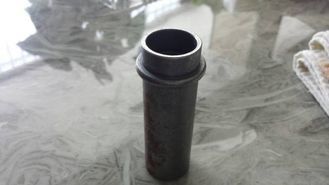

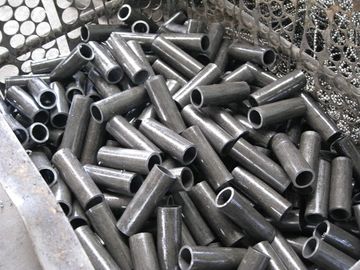

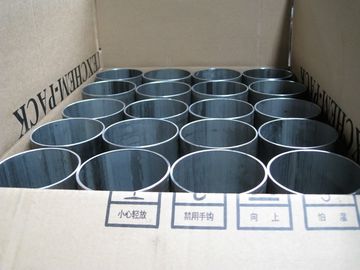

Production Pictures for BS6323-6 Seamless and Welded Steel Tubes

Production Process for BS6323-6 Seamless and Welded Steel Tubes

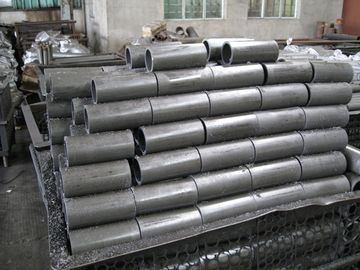

Production Workshop for BS6323-6 Seamless and Welded Steel Tubes
