GB/T 31940 Stainless Steel Tube Bi-Metal Composite Corrosion Resistance For Fluid Transportation
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
Minimum Order Quantity : | 1 tons | Price : | negotiable |
---|---|---|---|
Packaging Details : | In plywood case, In wooden box. | Delivery Time : | 30-45 days after order confirmed |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 60000 Ton per Year |
Place of Origin: | China | Brand Name: | Torich |
---|---|---|---|
Certification: | ISO 9001 ISO14001 TS16949 | Model Number: | ASTM A688 |
Detail Information |
|||
Characteristic: | Stainless Feedwater Heater Tube | Material: | 304, 304L, 316, 316L Etc |
---|---|---|---|
Production Method: | Seamless Or Welded | Package: | In Bundles Or As Per Requests |
End Protector: | Plain / Beveled | Length: | 2-12m |
Type: | Stainless Steel Tube | MTC: | EN10204.3.1 |
High Light: | stainless steel round tube,large diameter stainless steel tube |
Product Description
Products Description:

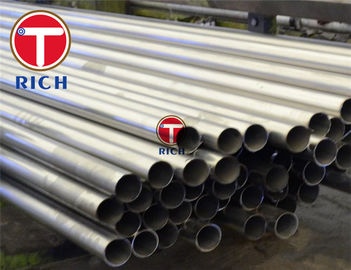

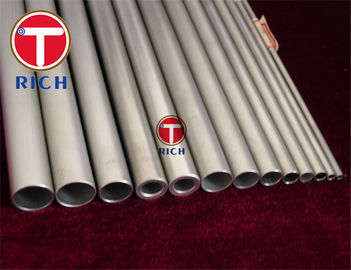

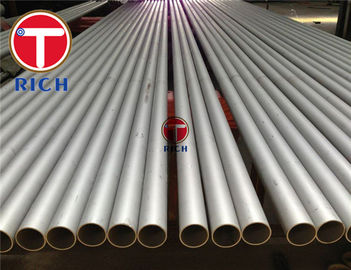

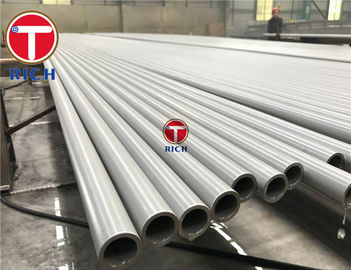

ASTM A688 Seamless and Welded Austenitic Stainless Steel Feedwater Heater Tube
Steel Grade/Steel Material:
Mechanical Requirement | |||||||||
Grade: | TP304 | TP304L | TP304LN | TP316 | TP316L | TP316LN | TP316LN | TPXM-29 | TP304N |
UNS | S30400 | S30403 | S30453 | S31600 | S31603 | S31653 | S31653 | S24000 | S30451 |
C, max | 0.08 | 0.035 | 0.035 | 0.080 | 0.035 | 0.035 | 0.035 | 0.08 | 0.080 |
Mn, max | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 11.5-14.5 | 2.00 |
P, max | 0.045 | 0.045 | 0.045 | 0.045 | 0.045 | 0.045 | 0.045 | 0.060 | 0.045 |
S, max | 0.030 | 0.030 | 0.030 | 0.030 | 0.030 | 0.030 | 0.030 | 0.030 | 0.030 |
Si, max | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 |
Ni | 18.0-20.0 | 18.0-20.0 | 18.0-20.0 | 16.0-18.0 | 16.0-18.0 | 16.0-18.0 | 16.0-18.0 | 17.0-19.0 | 18.0-20.0 |
Cr | 8.0-11.0 | 8.0-13.0 | 8.0-12.0 | 11.0-14.0 | 10.0-14.0 | 11.0-14.0 | 11.0-14.0 | 2.3-3.7 | 8.0-18.0 |
Mo | … | … | … | 2.00-3.00 | 2.00-3.00 | 2.00-3.00 | 2.00-3.00 | … | … |
Nitrogen | … | … | … | … | … | … | … | … | … |
Copper | … | … | … | … | … |
Delivery Condition:
Pickled and Annealed, or as customer's requirement
Size Range:
OD: 4-230mm
WT: 0.5-30mm
Length: max 12000mm
Our regularproduction size: 19.05mm 25.4mm OD
Characteristic:
Good concentricity
Good OD and ID tolerance
High Precision
Stable quality
Smooth Roughness
TORICH QUALITY ASSURANCE
4.7mm 6.6mm 0.185in 0.26in Precision SAE 1020 ASTM A513 DOM tubing
Production Processs:
The tubes shall be manufactured by either the seamless or welded and cold worked process.
Seamless tubing: shall be supplied from a cold finishing process. Hot finishing as the final sizing process is not allowed.
Welded tubing: shall be made from flat-rolled steel by an automatic welding process with no addition of filler metal.
Production Steel Tube:
Eddy Current Test and Ultrasonic Test:
Packing:
