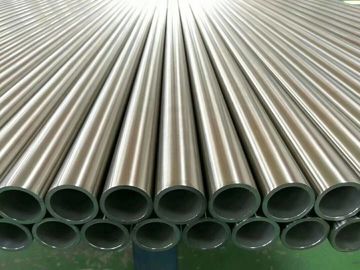

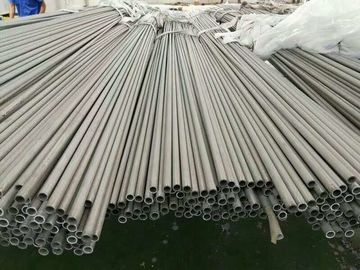

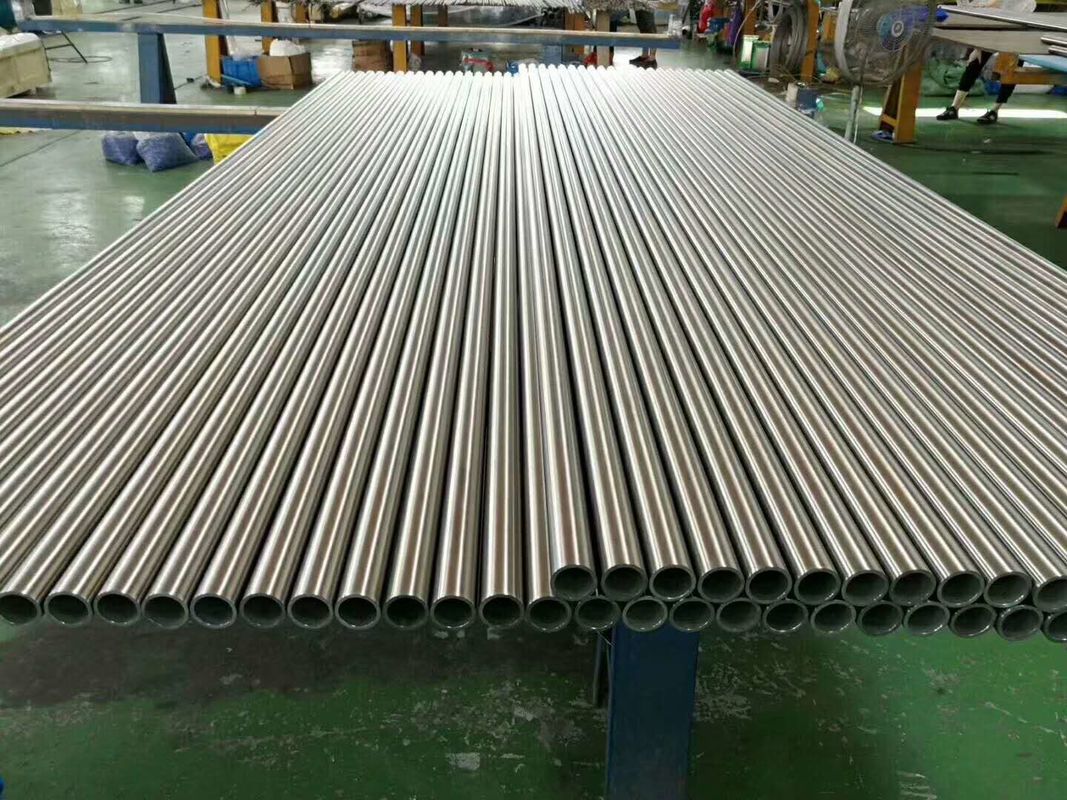

Duplex Stainless Steel Precision Steel Tube S32205 Seamless / Welded Steel Tubing
Basic Properties
Place of Origin:
China
Brand Name:
Torich
Certification:
ISO 9001 ISO14001 TS16949
Model Number:
A789
Trading Properties
Minimum Order Quantity:
0.5tons
Price:
negotiable
Payment Terms:
L/C, T/T
Supply Ability:
5000tons per year
Product Summary
For General Service Duplex stainless steel S32205 Seamless and Welded steel tubing Material S31803 32205 Production Method Seamless or welded Wall thickness Min wall thickness or Avg wall thickness Application For services requiring general corrosion resistance,with particular emphasis on resistance ...
Product Details
Highlight:
stainless steel round tube
,large diameter stainless steel tube
Material:
Duplex Stainless Steel
Standard:
ASTM A789
Production Method:
Seamless And Welded
Application:
General Service
Product Description
For General Service Duplex stainless steel S32205 Seamless and Welded steel tubing
| Material | S31803 32205 |
| Production Method | Seamless or welded |
| Wall thickness | Min wall thickness or Avg wall thickness |
| Application | For services requiring general corrosion resistance,with particular emphasis on resistance to stress corrosion cracking. |
| Tests | Tension tests, Flaring test ,Flange Test,Hardness Test ect. |
Tolerance :
≤12.7 +/-0.13mm
12.7-38.1 +/-0.13mm
38.1-139.7 +/-0.25 mm
88.9-139.7 +/-0.38 mm
139.7-203.2 +/-0.76 mm
Condition:Heat treated Temperature from 800-1125 ℃ rapid cooling in water ot in air.
Keyword:
Duplex stainless steel tubing;Ferritic /austenitic stainless steel；seamless steel tubes;steel tubes:weled steel tubes.
