Thinnest Wall Round Seamless Stainless Steel Tubing Gb/t3089 44.5 X 0.9mm
Product Details
seamless carbon steel tube
,precision stainless steel tubing
GB/T3089 44.5x0.9mm Thinnest-Wall Seamless Stainless Steel Tubes
Product Name:GB/T3089 44.5x0.9mm Thinnest-Wall Seamless Stainless Steel Tubes
Standard:GB/T3039
Size Range: OD:10.3-102.6mm WT:0.15-0.6mm Length:0.8-6m
Regular Size: 15.4X0.2 18.4X0.2 20.4X0.2
24.4X0.2 35X0.5 40.4X0.2
41X0.5 44.5X0.9 60X0.5
74X0.5 150.8X0.4 250.8X0.4
Application: For Scientific research, pneumatic components
Steel Grade: 06Cr19Ni10, 022Cr19Ni10, 022Cr17Ni12Mo2, 06Cr17Ni12Mo2Ti, 06Cr18Ni11Ti
Surface Roughness:Ra≤1.6μm
Delivery condition:Heat treatment
Chemical composition:
| Grade | Chemical Analysis | ||||||||
| C ≤ | Si ≤ | Mn ≤ | S ≤ | P ≤ | Cr | Ni | Ti | Mo | |
| 06Cr19Ni10 | 0.08 | 1.00 | 2.00 | 0.030 | 0.035 | 18.00-20.00 | 8.00-11.00 | - | - |
| 022Cr19Ni10 | 0.030 | 1.00 | 2.00 | 0.030 | 0.035 | 18.00-20.00 | 8.00-12.00 | - | - |
| 022Cr17Ni12Mo2 | 0.030 | 1.00 | 2.00 | 0.030 | 0.035 | 16.00-18.00 | 10.00-14.00 | - | 2.00-3.00 |
| 06Cr17Ni12Mo2Ti | 0.080 | 1.00 | 2.00 | 0.030 | 0.035 | 16.00-18.00 | 10.00-14.00 | ≤5C | 2.00-3.00 |
| 06Cr18Ni11ti | 0.080 | 1.00 | 2.00 | 0.030 | 0.035 | 17.00-19.00 | 9.00-12.00 | 5C-0.7 | - |
Inspection in the work ship:

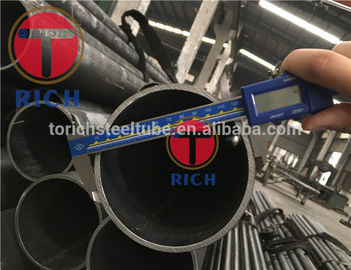

Size Measurement
NDT
Inspection
Mechanical test
Application:
Scientific research, aerospace industry , pneumatic components, instruments
GB/T3089 44.5x0.9mm Thinnest-Wall Seamless Stainless Steel Tube
TorichInternational Co.,Ltd is a professional manufacturer and exporter of steel pipes materials. It is an international marketing and sales company specialized in steel tubes.
Our main products:Seamless Steel Tubes with Carbon and Alloy Steel Grade, Welded Precision Steel Tubes,DOM Steel Tubes, Seamless & Welded Stainless Steel Tubes with Nickel and Alloy Steel Tube.
Our factory was established since 1997, with the name of Haiyan SanxinSteel Pipe Co., Ltd. The factories’ technicians are of great engineering experience in steel pipe industry for more than 20 years, who are in great command of production technology for Cold Drawing and Cold Rolling, as well as heat treatment and inspection. So we have strong technician team and manufacturing capability.
-
