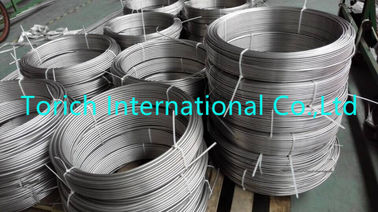

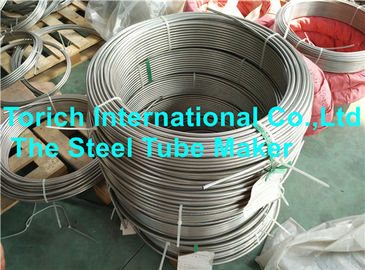

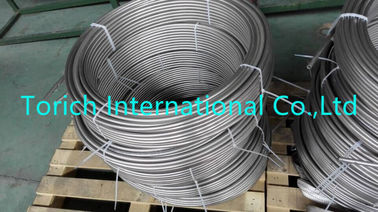

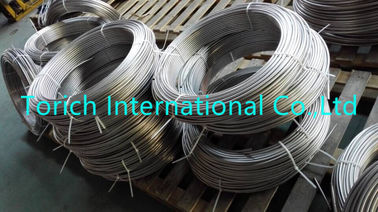

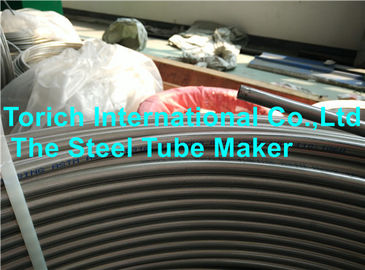

316l / 316 / 304 Precision Stainless Steel Tubing For Condenser Heat Exchanger
Basic Properties
Place of Origin:
Zhejiang,China
Brand Name:
TORICH
Certification:
ISO9001 ISO14001 TS16949
Model Number:
ASTM A249/269
Trading Properties
Minimum Order Quantity:
1000KG
Price:
negotiable
Payment Terms:
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability:
5000KG PER YEAR
Product Summary
Stainless Steel Coil Tube for Condenser,Heat Exchanger,Evaporator Use,316L/316/304,ASTM A249/269,TORICH Stainless Steel Coil Tube for Condenser,Heat Exchanger,Evaporator,316L/316/304,ASTM A249/269,TORICH Sizw Range : outer diameter 3-25.4mm Wall Thickness: 0.3-2.0mm Inner Bore Size of Coil : 500...
Product Details
Highlight:
stainless steel round tube
,stainless tube steel
Product Name:
Stainless Steel Coil Tube For Condenser,Heat Exchanger,Evaporator Use,316L/316/304,ASTM A249/269,TORICH
Keyword:
Stainless Steel Coil Tube
Usage:
For Condenser,Heat Exchanger,Evaporator Use
Material:
316L 316 304 201
Type:
Seamless
Shape:
Round
OD:
3-24.5mm
WT:
0.3-2.0mm
General Delivery Length:
200-1000mm
Brand:
TORICH
Product Description
Stainless Steel Coil Tube for Condenser,Heat Exchanger,Evaporator Use,316L/316/304,ASTM A249/269,TORICH
Stainless Steel Coil Tube for Condenser,Heat Exchanger,Evaporator,316L/316/304,ASTM A249/269,TORICH
Sizw Range : outer diameter 3-25.4mm
Wall Thickness: 0.3-2.0mm
Inner Bore Size of Coil : 500-1500mm
General Delivery Length: 200-1000mm
Example of physical Properties of steel pipe under Bright Annealing Condition:
Elongation Percentage: >55%
Surface Hardness: <170HV
Tensile Strength :>550N/MM2
Yield Strength :>195N/NM2
Coil tubes Specification Table
| O.D mm
W.T mm | 3.0-4.0 | 4.01-6.00 | 6.01-8.00 | 8.01-10.0 | 10.01-12.7 | 12.71-19.05 | 19.05-25.4 |
| 0.30-0.40 | √ | √ | √ | ||||
| 0.41-0.50 | √ | √ | √ | √ | |||
| 0.51-0.60 | √ | √ | √ | √ | √ | ||
| 0.61-0.70 | √ | √ | √ | √ | √ | √ | |
| 0.71-1.00 | √ | √ | √ | √ | √ | √ | √ |
| 1.01-1.20 | √ | √ | √ | √ | √ | √ | |
| 1.21-1.50 | √ | √ | √ | √ | |||
| 1.51-2.0 | √ | √ | √ |
Standard : ASTM A269/A249
Applications:
1. Evaporator for equipment of beer & drinks
2. Condensers for equipment of beer&drinks
3. Heat Exchanger
4. Instruments for petrochemical industry
5. Refrigeration and heating equipment
6. Gas and liquid transmission pipeline
ASTM A249/ASTM 269,Evaporator for Equipment of Stainless Steel Coil Tube for Condenser,Heat Exchanger,Evaporator Use,316L/316/304,ASTM A249/269,TORICHDrinks, Stainless Steel Coil Tube
