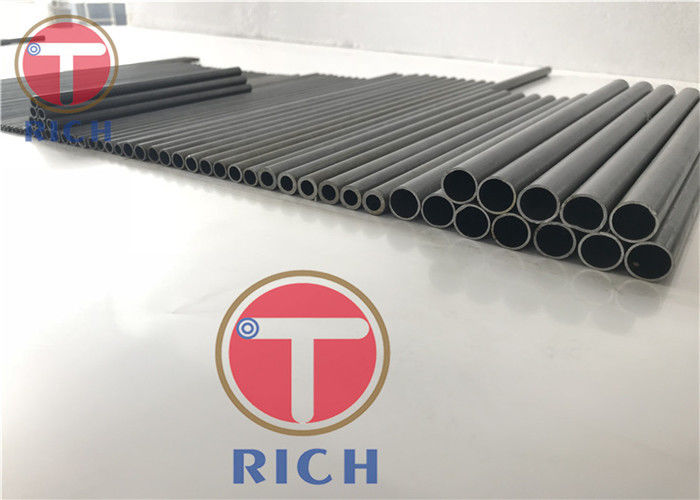

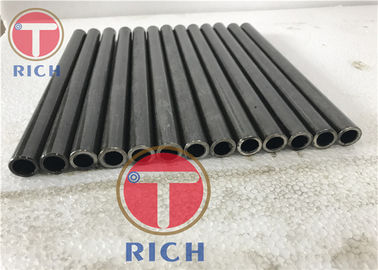

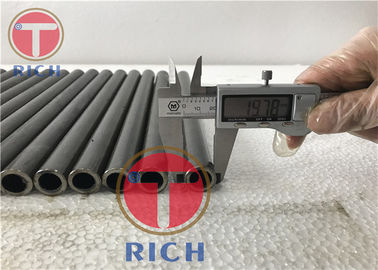

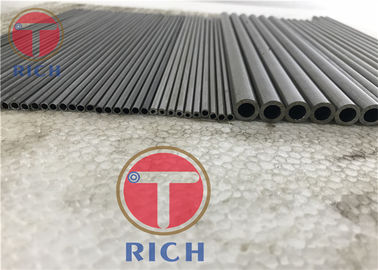

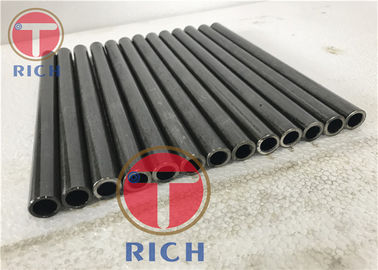

Astm A519 Seamless Steel Tube High Precision 6 - 350mm Od For Machining
Basic Properties
Place of Origin:
China
Brand Name:
TORICH
Certification:
ISO9001 ISO 14001
Model Number:
Astm A519
Trading Properties
Minimum Order Quantity:
5
Price:
negotiable
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
50000Tons/Year
Product Summary
Standard: ASTM A519 Seamless Carbon and Alloy Steel Mechanical Tubing ASTM A519 Applications: for Machinery, Mechanical Engineer Size range: O.D.:6-350mm W.T.:1-50mm L:max12000mm Raw Material: Round Steel Billet from Bao Steel with grade SAE1008 SAE1010 SAE1018 SAE1020 SAE1026 etc Production: Hot ...
Product Details
Highlight:
precision stainless steel tubing
,seamless carbon steel tube
Keyword:
Seamless Steel Pipe
OD:
6-350mm
WT:
1-50mm
Length:
1-12m
Material:
20#.45# Q235 Q195 Q345
Shape:
Round
Product Description
Standard: ASTM A519
Seamless Carbon and Alloy Steel Mechanical Tubing ASTM A519
Applications: for Machinery, Mechanical Engineer
Size range:
O.D.:6-350mm
W.T.:1-50mm
L:max12000mm
Raw Material:
Round Steel Billet from Bao Steel
with grade SAE1008 SAE1010 SAE1018 SAE1020 SAE1026 etc
Production:
Hot Piercing→Cold Drawing → Sizing to final dimension
| Steel Grade and Chemical Compositions: | |||||||
| Steel | C | Mn | P | S | Si | Cr | Mo |
| Grade | max | max | max | max | min | ||
| 1008 | 0.10 | 0.30-0.50 | 0.040 | 0.050 | |||
| 1010 | 0.08-0.13 | 0.30-0.60 | 0.040 | 0.050 | |||
| 1018 | 0.15-0.20 | 0.60-0.90 | 0.040 | 0.050 | |||
| 1020 | 0.18-0.23 | 0.30-0.60 | 0.040 | 0.050 | |||
| 1026 | 0.22-0.28 | 0.60-0.90 | 0.040 | 0.050 | |||
| 1035 | 0.32-0.38 | 0.60-0.90 | 0.040 | 0.050 | |||
| 1045 | 0.43-0.50 | 0.60-0.90 | 0.040 | 0.050 | |||
| 4130 | 0.28-0.33 | 0.40-0.60 | 0.040 | 0.040 | 0.15-0.35 | 0.80-1.10 | 0.15-0.25 |
| 4140 | 0.38-0.43 | 0.75-1.00 | 0.040 | 0.040 | 0.15-0.35 | 0.80-1.10 | 0.15-0.25 |
| Grade | condition | Ultimat | Yield | Elongation | Rockwell |
| Strength | Strength | Hardness | |||
| ksi Mpa | ksi Mpa | % | B Scale | ||
| 1020 | HR | 50 345 | 32 221 | 25 | 55 |
| CW | 70 483 | 60 414 | 5 | 75 | |
| SR | 65 448 | 50 345 | 10 | 72 | |
| A | 48 331 | 28 193 | 30 | 50 | |
| N | 55 379 | 34 234 | 22 | 60 | |
| 1025 | HR | 55 379 | 35 241 | 25 | 60 |
| CW | 75 517 | 65 448 | 5 | 80 | |
| SR | 70 483 | 55 379 | 8 | 75 | |
| A | 53 365 | 30 207 | 25 | 57 | |
| N | 55 379 | 36 248 | 22 | 60 | |
| 1035 | HR | 65 448 | 40 276 | 20 | 72 |
| CW | 85 586 | 75 517 | 5 | 88 | |
| SR | 75 517 | 65 448 | 8 | 80 | |
| A | 60 414 | 33 228 | 25 | 67 | |
| N | 65 448 | 40 276 | 20 | 72 | |
| 1045 | HR | 75 517 | 45 310 | 15 | 80 |
| CW | 90 621 | 80 552 | 5 | 90 | |
| SR | 80 552 | 70 483 | 8 | 85 | |
| A | 65 448 | 35 241 | 20 | 72 | |
| N | 75 517 | 48 331 | 15 | 80 | |
| 4130 | HR | 90 621 | 70 483 | 20 | 89 |
| SR | 105 724 | 85 586 | 10 | 95 | |
| A | 75 517 | 55 379 | 30 | 81 | |
| N | 90 621 | 60 414 | 20 | 89 | |
| 4140 | HR | 120 855 | 90 310 | 15 | 100 |
| SR | 120 855 | 100 689 | 10 | 100 | |
| A | 80 552 | 60 414 | 25 | 85 | |
| N | 120 855 | 90 621 | 20 | 100 |
Deliver condition:
1. A.W.H.R. "as welded" from hot-rolled steel
2. A.W.C.R. "as welded" from cold-rolled steel
3. S.D.C.R. "sink-drawn", cold-rolled steel
5. M.D. mandrel drawn
6. S.S.I.D. special smooth inside diameter
Please specify the delivery condition and heat treatment requirement when sending the enquiry
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples of Seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
