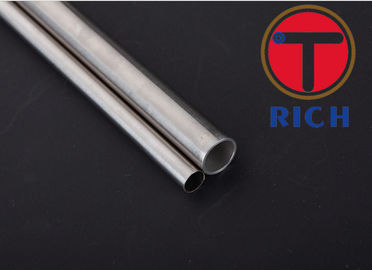

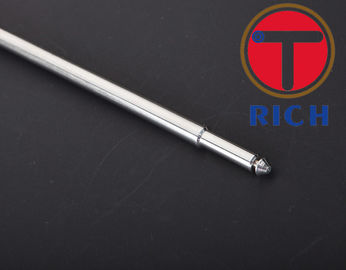

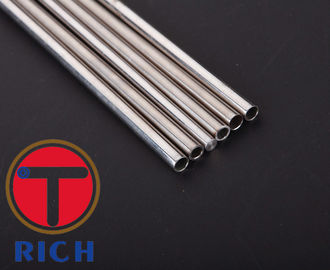

Food Industry Stainless Steel Seamless Tube 2 - 12m X5CrNi1810 X2CrNiMo18143

Food Industry Stainless Steel Seamless Tube 2 - 12m X5CrNi1810 X2CrNiMo18143

Brand Name: Torich
Model Number: DIN 11850
MOQ: 5MT
Price: negotiable
Payment Terms: L/C, T/T
Supply Ability: 7000MT/Month
Detail Information
Place of Origin:
China
Certification:
ISO 9001:2008 , TS16949 , DNV , GL , PED
Product Name::
DIN 11850 X5CrNi1810 Stainless Seamless Steel Pipe For Food Industry
Application::
For The Food Industry Dimensions,materials
Standard Materials:
1.4301 , 1.4571
Keywords:
Stainless Seamless Steel Pipe
Type:
Stainless Seamless Steel Pipe
Terms Of Trade:
FOB
Brand:
Torich
End Protector:
Plain
Length:
2-12m
WT:
0.5-50mm
Packaging Details:
In strong bundles or in wooden box
Supply Ability:
7000MT/Month
Highlight:

stainless tube steel

,

large diameter stainless steel tube

Product Description

DIN 11850 Stainless Steel Pipes for the food industry dimensions,materials





Materials:

X5CrNi1810             - material number 1.4301

X6CrNiMoTi17122  - material number 1.4571

X6CrNiMo17122      -material number 1.4401

X2CrNiMo18143      -material number 1.4435
X6CrNiTi1810           -material number 1.4541


Minimum Order Quantity:   5MT
Payment Terms:                 L/C or T/T
Supply Ability:                    700MT/Month
Delivery Time:                    FOB,CFR,CIF are workable
                                           30~60days according detail PO quantity


TABLE 1 The dimension and permissible deviations of the pipes

Nominal
Diameter
DN

Series

Tolerance

Weight
Kg/m(7.97kg/dm3)

remark

1

2

3

OD.dev

Wall thickness,dev

10

12





±0.12

1.0

±10%

0.27

Pipes with greater wall thicknesses than according to series 1 shall be selected from existing pipe standards for this nominal diameter range

The permissible deviations shall be determined from the circumference.the permissible ovality shall be ±1% on the pipe outside diameter.



13



±0.3

1.5

±10%

0.43





14

±0.3

2.0

±10%

0.60

15

18





±0.12

1.0

±10%

0.42



19



±0.3

1.5

±10%

0.66





20

±0.3

2.0

±10%

0.90

20

22





±0.12

1.0

±10%

0.51



23



±0.3

1.5

±10%

0.81





24

±0.3

2.0

±10%

1.10

25

28





±0.15

1.0

±10%

0.66



29



±1%

1.5

±10%

1.03





30

±0.3

2.0

±10%

1.40

32

34





±0.15

1.0

±10%

0.82



35



±1%

1.5

±10%

1.26





36

±1%

2.0

±10%

1.70

40

40





±0.2

1.0

±10%

0.97



41



±1%

1.5

±10%

1.50





42

±1%

2.0

±10%

2.00

50

52





±0.2

1.0

C10%

1.26



53



±1%

1.5

±10%

1.90





54

±1%

2.0

±10%

2.60

65

70





±0.3

2.0

±10%

3.43

80

85





±0.3

2.0

±10%

4.16

100

104





±0.3

2.0

±10%

5.03

125

129





±0.4

2.0

±10%

6.36

150

154





±0.4

2.0

±10%

7.49



Quoted Standards:

DIN 2413    Steel Pipes calculation of the wall thickness to withstand internal pressure

DIN 17456  Seamless circular stainless steel pipes for general requirements technical specifications

DIN 50049  Material test certificates
