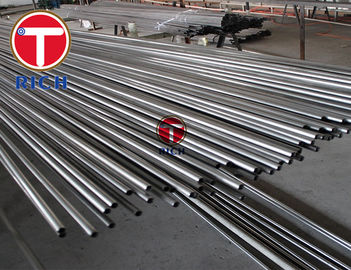

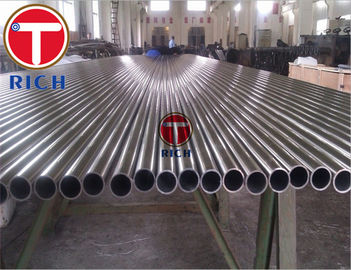

ASTM A511 TP316 304 Thick Wall Seamless Stainless Steel Pipe For Mechanical
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
| Minimum Order Quantity : | 5Tons | Price : | negotiable |
|---|---|---|---|
| Packaging Details : | Seamless Austenitic Stainless Steel tube in wooden boxes or hexagonal bundles in seaworthy packing. | Delivery Time : | 30-45wok days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 50000Tons per Year |
| Place of Origin: | ZHEJIANG, CHINA | Brand Name: | TORICH |
|---|---|---|---|
| Certification: | ISO9001, ISO14001, ISO16949 | Model Number: | GB/T30073 |
|
Detail Information |
|||
| Product Name: | TORICH Seamless Austenitic Stainless Steel Tube For Heat Exchangers | Keyword: | Stainless Steel Tube |
|---|---|---|---|
| Standard: | GB/T30073 | Material: | 06Cr19Ni10,022Cr19Ni10,022Cr19Ni10N,06Cr17Ni12Mo2,022Cr17Ni12Mo2 |
| Section Shape: | Round Shape | Surface: | Polish |
| OD: | 10-76mm | WT: | 0.7-4.0mm |
| Length: | According To Customers' Requirement | Usage: | Heat Exchangers In Nuclear Power Plant |
| High Light: | stainless steel round tube,large diameter stainless steel tube |
||
Product Description
Standard: GB/T30073
Material: 06Cr19Ni10, 022Cr19Ni10, 022Cr19Ni10N, 06Cr17Ni12Mo2,
022Cr17Ni12Mo2, 022Cr17Ni12Mo2N, 06Cr18Ni11Ti
OD: 10-76mm
WT : 0.7-4.0mm
Usage: Heat Exchangers in nuclear power plant
Chemical composition:
| Grade | Uniform number code | Chemical composition % | |||||||||||
| C | Si | Mn | P | S | Cr | Ni | Mo | Cu | B | N | Ti | ||
| 06Cr19Ni10 | S30408 | 0.06 | 0.75 | 2.00 | 0.030 | 0.015 | 17.00-20.00 | 9.00-12.00 | - | 1.00 | 0.0018 | - | - |
| 022Cr19Ni10 | S30403 | 0.030 | 0.75 | 2.00 | 0.030 | 0.015 | 18.00-20.00 | 9.00-12.00 | - | 1.00 | 0.0018 | - | - |
| 022Cr19Ni10N | S30453 | 0.035 | 1.00 | 2.00 | 0.030 | 0.015 | 18.50-20.00 | 9.00-10.00 | - | 1.00 | 0.0018 | 0.08 | - |
| 06Cr17Ni12Mo2 | S31608 | 0.07 | 0.75 | 2.00 | 0.030 | 0.015 | 17.00-19.00 | 10.00-14.00 | 2.00-2.50 | 1.00 | 0.0018 | - | - |
| 022Cr17Ni12Mo2 | S31603 | 0.030 | 0.75 | 2.00 | 0.030 | 0.015 | 17.00-19.00 | 10.00-14.00 | 2.00-2.50 | 1.00 | 0.0018 | - | - |
| 022Cr17Ni12Mo2N | S31653 | 0.035 | 1.00 | 2.00 | 0.030 | 0.015 | 17.00-18.00 | 11.50-12.50 | 2.25-2.75 | 1.00 | 0.0018 | 0.08 | - |
| 06Cr18Ni11Ti | S32168 | 0.08 | 1.00 | 2.00 | 0.030 | 0.015 | 17.00-19.00 | 9.00-12.00 | - | 1.00 | 0.0018 | - | 5C-0.70 |
Mechanical Properties:
| Material |
Uniform number code
|
Room temperature tensile
|
350℃ High temperature tensile
|
||||
|
plasticity extension strength MPa |
Tensile strength MPa |
Elongation % |
plasticity extension strength MPa |
Tensile strength MPa |
Elongation % |
||
| 06Cr19Ni10 | S30408 | 210 | 520 | 45 | 125 | 394 | 7.93 |
| 022Cr19Ni10 | S30403 | 175 | 490 | 45 | 105 | 350 | 7.90 |
| 022Cr19Ni10N | S30453 | 220 | 520 | 45 | 125 | 394 | 7.93 |
| 06Cr17Ni12Mo2 | S31608 | 210 | 520 | 45 | 130 | 445 | 8.00 |
| 022Cr17Ni12Mo2 | S31603 | 175 | 490 | 45 | 105 | 355 | 8.00 |
| 022Cr17Ni12Mo2N | S31653 | 220 | 520 | 45 | 130 | 400 | 8.04 |
| 06Cr18Ni11Ti | S32168 | 210 | 520 | 35 | 125 | 394 | 8.03 |
Test:
Flattening Test Residual Stress Test
Flaring Test Ultrasonic Test
Metallographic Test Eddy Current Test
TORICH GB/T30073 Seamless Austenitic Stainless Steel tube for Heat Exchangers in nuclear power plant
