GB/T8162 Q235 Structural Seamless Steel Tubes Thick Wall Tube For Heat Exchanger
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
| Minimum Order Quantity : | 5 tons | Price : | 900-1500 USD/ton |
|---|---|---|---|
| Packaging Details : | In plywood case, In wooden box. | Delivery Time : | 30-45 days after order confirmed |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 60000 Ton per Year |
| Place of Origin: | China | Brand Name: | Torich |
|---|---|---|---|
| Certification: | ISO 9001 ISO14001 TS16949 | Model Number: | ASTM A334 |
|
Detail Information |
|||
| Characteristic: | Seamless Steel Tube | Material: | Gr1, Gr6, Gr8 Etc |
|---|---|---|---|
| Production Method: | Seamless / Welded | Package: | In Bundles Or As Per Requests |
| End Protector: | Plain / Beveled | Length: | 2-12m |
| Type: | Carbon And Alloy Steel Tube | MTC: | EN10204.3.1 |
| High Light: | carbon steel tube,high carbon steel tube |
||
Product Description
Products Description:

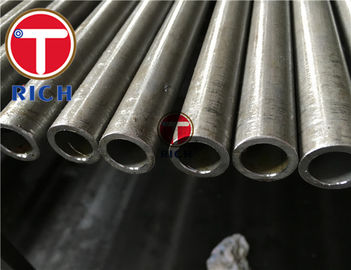

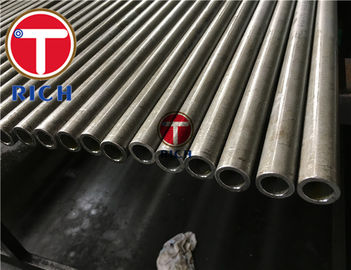

Seamless Carbon and Alloy Steel Tube ASTM A334 Gr6 for Low-Temperature Service
Material:
| Element | Compision, % | ||||||
| Gr1 | Gr3 | Gr6 | Gr7 | Gr8 | Gr9 | Gr11 | |
| C, max | 0.30 | 0.19 | 0.30 | 0.19 | 0.13 | 0.20 | 0.10 |
| Mn | 0.40-1.06 | 0.31-0.64 | 0.29-1.06 | 0.90 max | 0.90 max | 0.40-1.06 | 0.60 max |
| P, max | 0.025 | 0.025 | 0.025 | 0.025 | 0.025 | 0.025 | 0.025 |
| S, max | 0.025 | 0.025 | 0.025 | 0.025 | 0.025 | 0.025 | 0.025 |
| Si | - | 0.18-0.37 | 0.10 min | 0.13-0.32 | 0.13-0.32 | - | 0.35 max |
| Ni | - | 3.18-3.82 | - | 2.03-2.57 | 8.40-9.60 | 1.60-2.24 | 35.0-37.0 |
| Cr | - | - | - | - | - | - | 0.50 max |
| Cu | - | - | - | - | - | 0.75-1.25 | - |
| Co | - | - | - | - | - | - | 0.50 max |
| Mo | - | - | - | - | - | - | 0.50 max |
Manufacture:
The pipes are made by seamless or automatic welding process with no addition of no of filler metal in the welding operation.
Heat treatment:
All seamless and welded pipes, other than Grades 8 and 11, are heat treated to control their microstructure in accordance with methods of:
· Normalizing
· Quenched and Tempered
· Double Normalized and Tempered
Tests and Inspection:
Tensile Requirements
Impact Requirements
Mechanical Testing
- Sampling
- Transverse or Longitudinal Tensile Test and Flattening Test
- Hydrostatic Test
- Impact Test

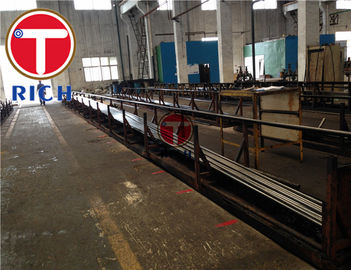

Production Steel Tube Gr6:
